Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Power Door Lock Switch
>>
Diagrams
>>
Right Door
>>
Without Remote/Keyless Entry
Without Remote/Keyless Entry

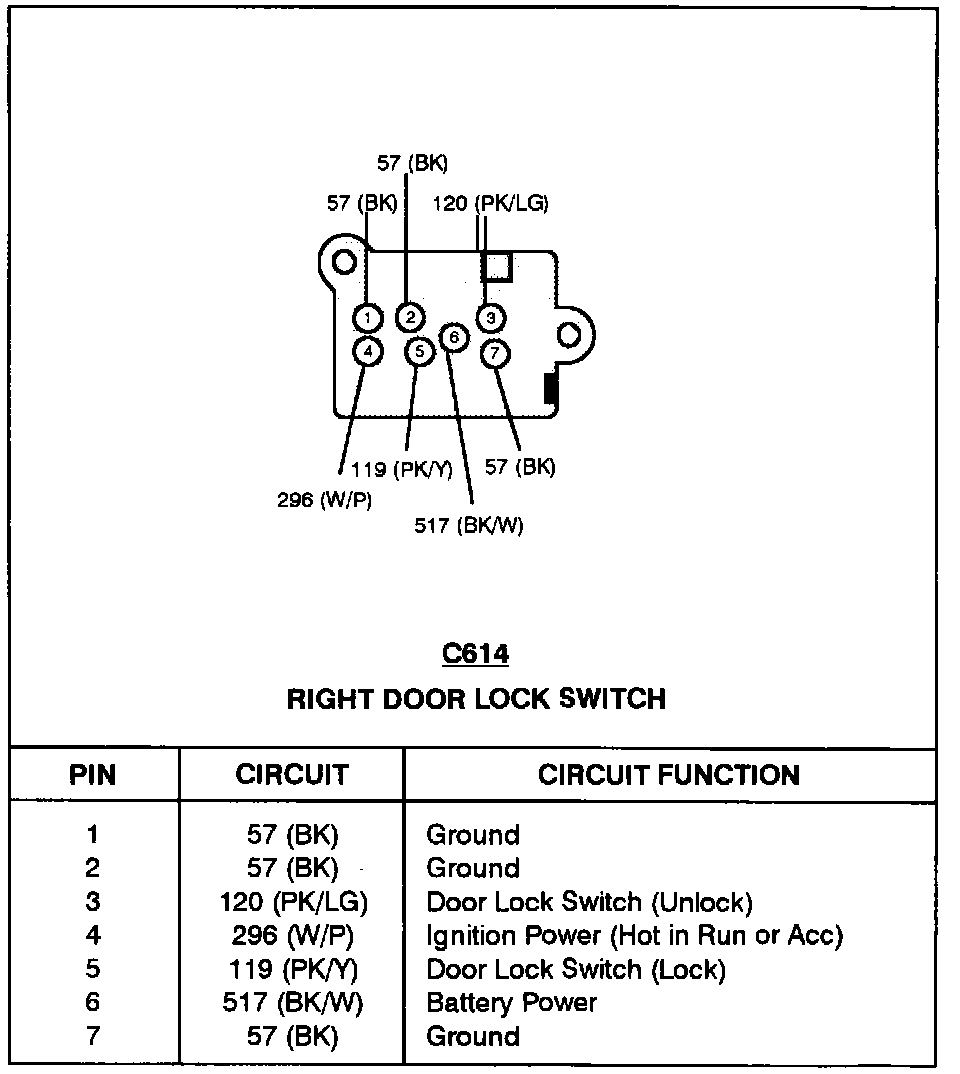

Right Door Lock Switch:
