Rear Bench Seat

REMOVAL

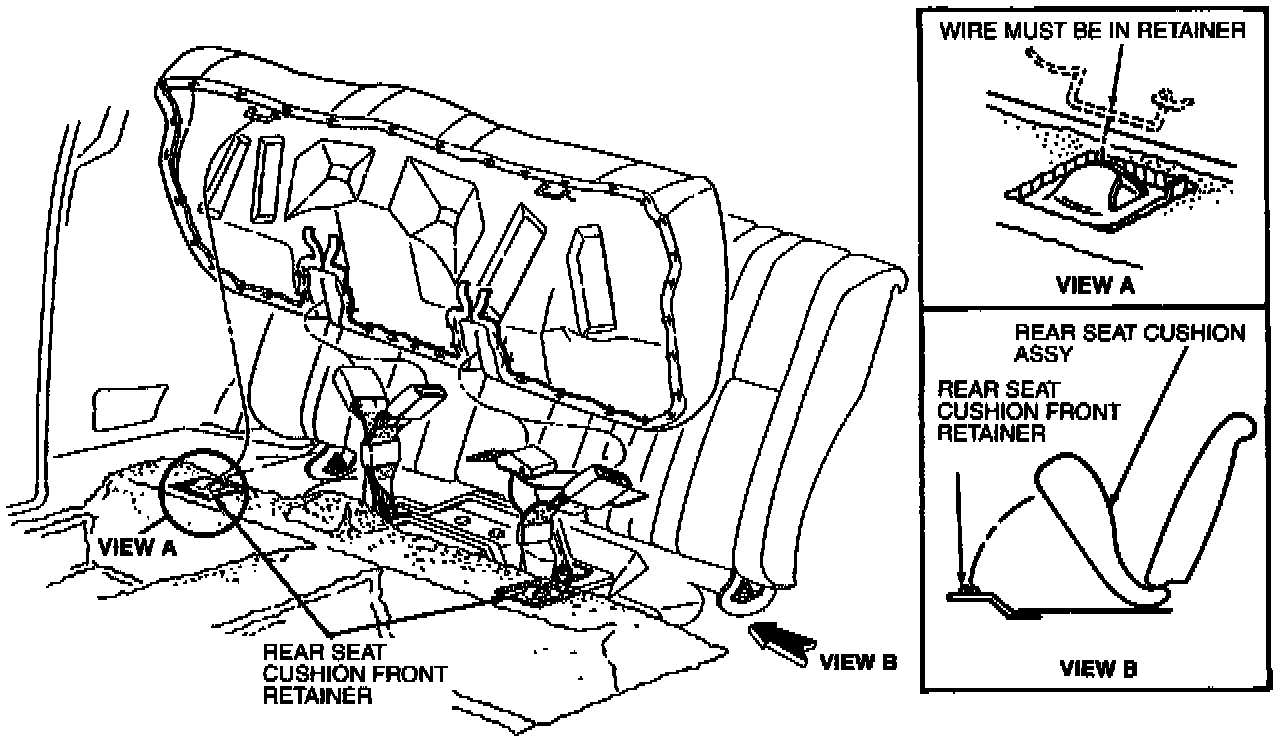

1. Apply knee pressure to lower front portion of rear seat cushion. Push rearward to disengage seat cushion from rear seat cushion front retainer and remove seat cushion.

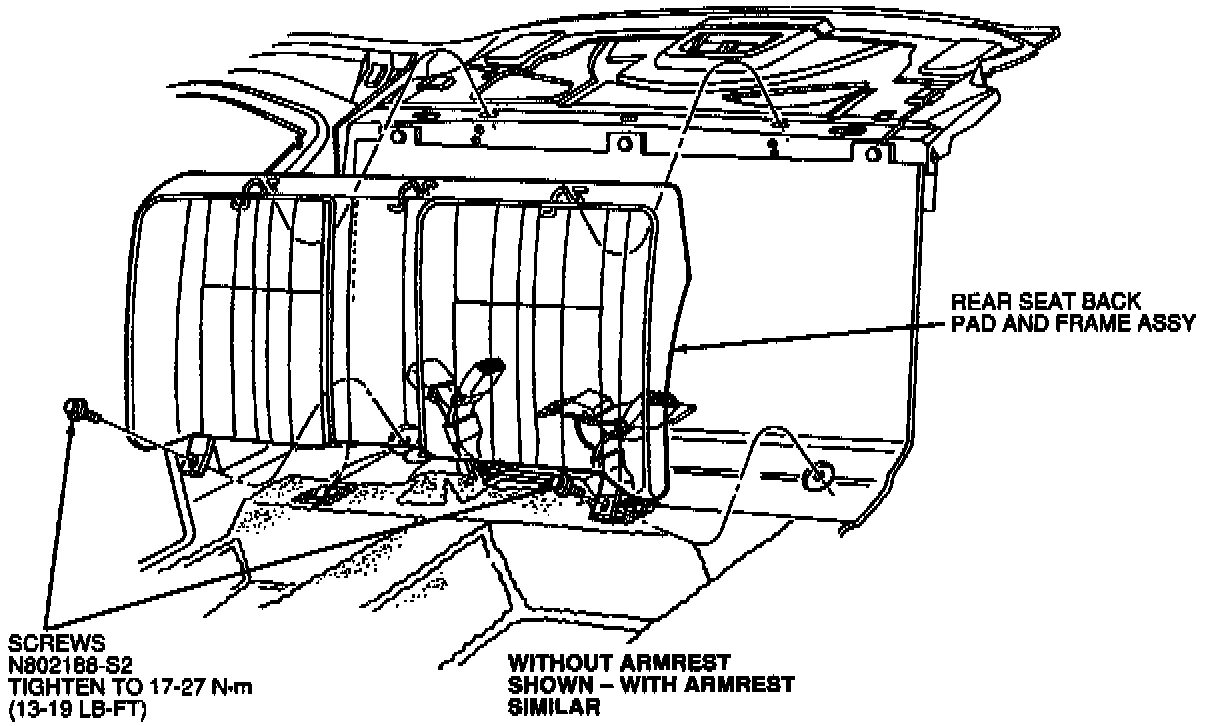

2. Remove seat back lower retaining screws.







3. Grasp rear seat back pad and frame at bottom and lift up to disengage hanger wire from slotted holes in package tray.
4. Remove rear seat back pad and frame.

INSTALLATION
1. Position rear seat back pad and frame so that hanger wire is fully engaged in package tray slots.
2. Install seat back lower retaining screws and tighten to 17-27 Nm (13-19 lb-ft).
3. Position seat cushion assembly into vehicle.
4. Apply knee pressure to lower portion of seat cushion assembly. Push rearward and down to lock seat cushion into rear seat cushion front retainer.
5. Check rear seat cushion to make sure it is secured into floor retainer.
