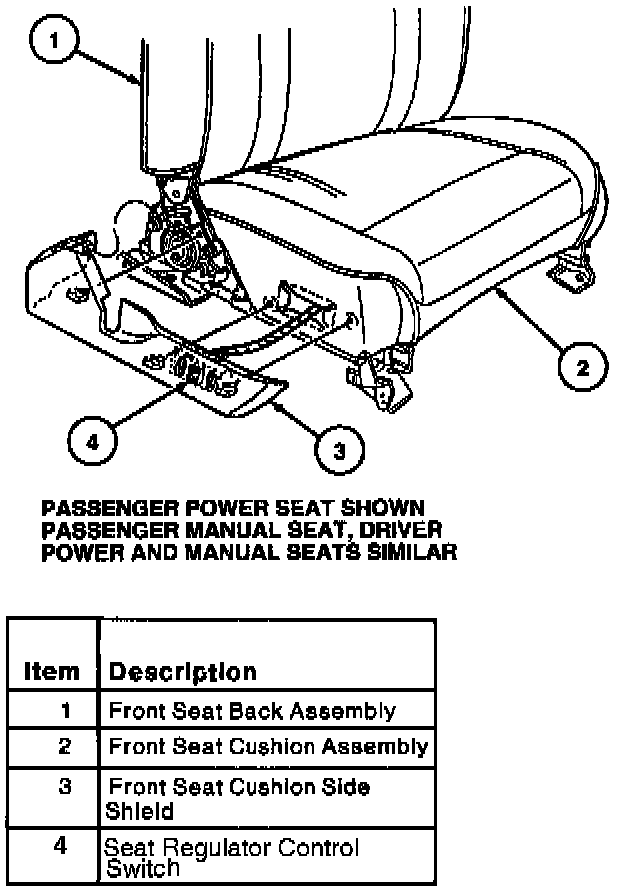

Side Shield, Front Seat Cushion

REMOVAL
1. Disconnect battery ground cable.
2. Lift front seat cushion side shield off three hooks on front seat assembly. Pull rear of front seat cushion side shield away from rear of front seat assembly to disengage front seat cushion side shield push pin from front seat assembly.
3. Remove two screws and seat regulator control switch from front seat cushion side shield.
4. Depress two pins and remove seat back control switch from front seat cushion side shield and remove front seat cushion side shield from vehicle.
5. Disconnect hoses/switch if equipped.

INSTALLATION
1. Follow removal procedure in reverse order.

NOTE: Install with rear end of rear cushion assembly under and behind seat back.
