Sliding Roof Panel

REMOVAL
1. Remove the roof headlining.







2. Disconnect drain tubes attached to each corner of roof sliding panel.







3. Remove two rear mounting bolts.

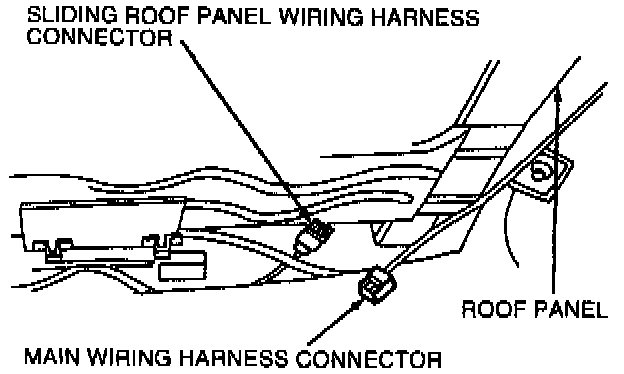

4. Disconnect main wire harness connector.

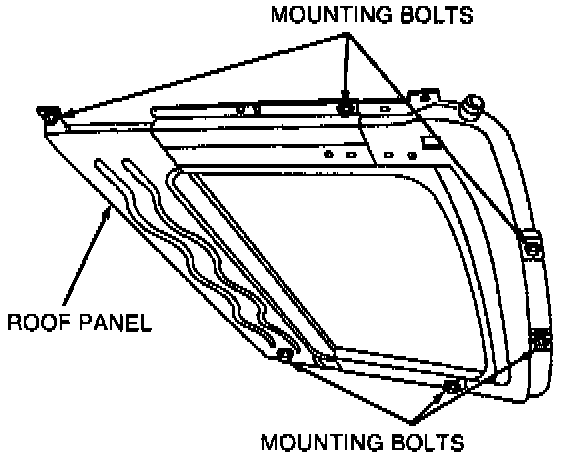

5. Remove six bolts and roof panel from vehicle.

NOTE: Support the roof panel assembly to prevent the unit from dropping.

INSTALLATION
1. Follow removal procedure in reverse order.

NOTE: Support roof panel assembly to prevent unit from dropping.

2. Install and tighten six mounting bolts to 9-11 Nm (80-97 Lb-In).

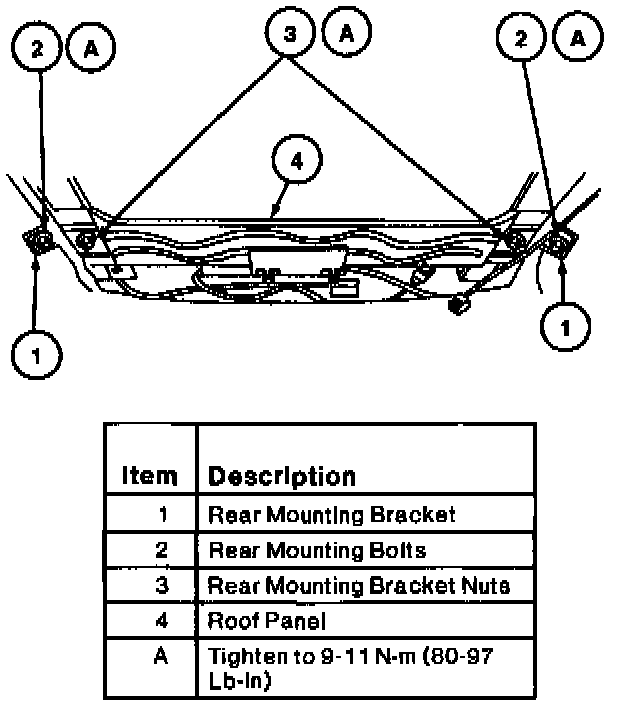

3. Position rear mounting brackets and install and tighten two rear mounting bolts to 9-11 Nm (80-97 Lb-In).







4. Tighten rear mounting bracket nuts to 9-11 Nm (80-97 Lb-In).
5. Check roof panel alignment.
