Sliding Roof Glass

REMOVAL
1. Operate the roof opening glass to the flush position.

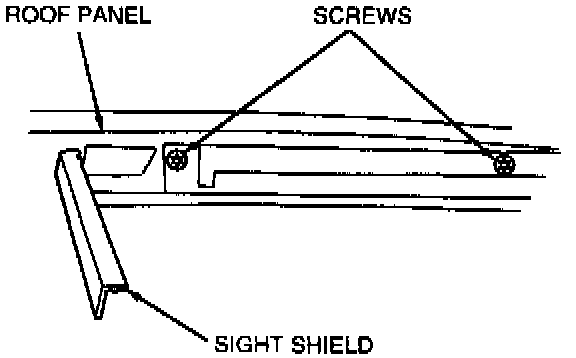

2. Swing the LH and RH sight shields rearward.







3. Remove two LH and two RH T20 Torx(R) screws.
4. From outside vehicle, lift roof opening glass up from the vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Adjust roof opening glass flush with roof and tighten two RH and two LH T20 Torx(R) screws to 3-5 Nm (27-44 Lb-In).
