Air Deflector, Roof

REMOVAL
1. Cycle roof opening glass to the full open position.
2. Unsnap two stop pieces.
3. Swing roof air deflector up.

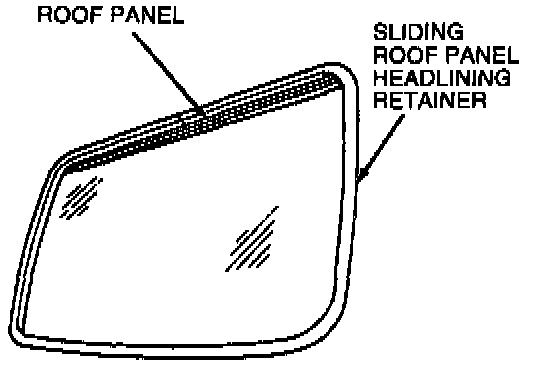

4. Remove sliding roof panel headlining retainer.
5. Block headliner down with a piece of wood or bundled cloth.

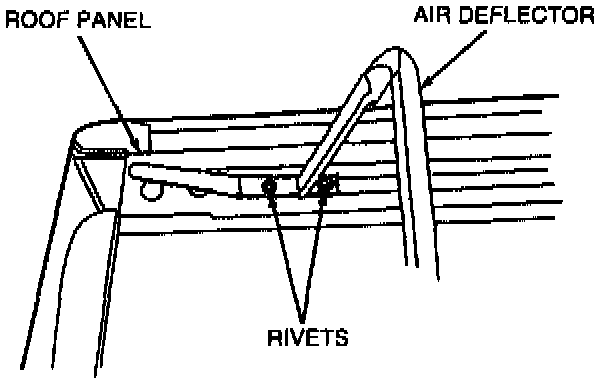

6. Drill out eight rivets and remove roof air deflector from vehicle.

CAUTION: Do not drill into headlining. Damage to headlining may result.

NOTE: Be sure to catch drill shavings or remove drill shavings from headlining to avoid later rattle problems.

INSTALLATION
1. Follow removal procedure in reverse order.

NOTE: The RH spring will not line up correctly if you try to rivet into the LH track.
