Sunroof / Moonroof Module: Diagrams

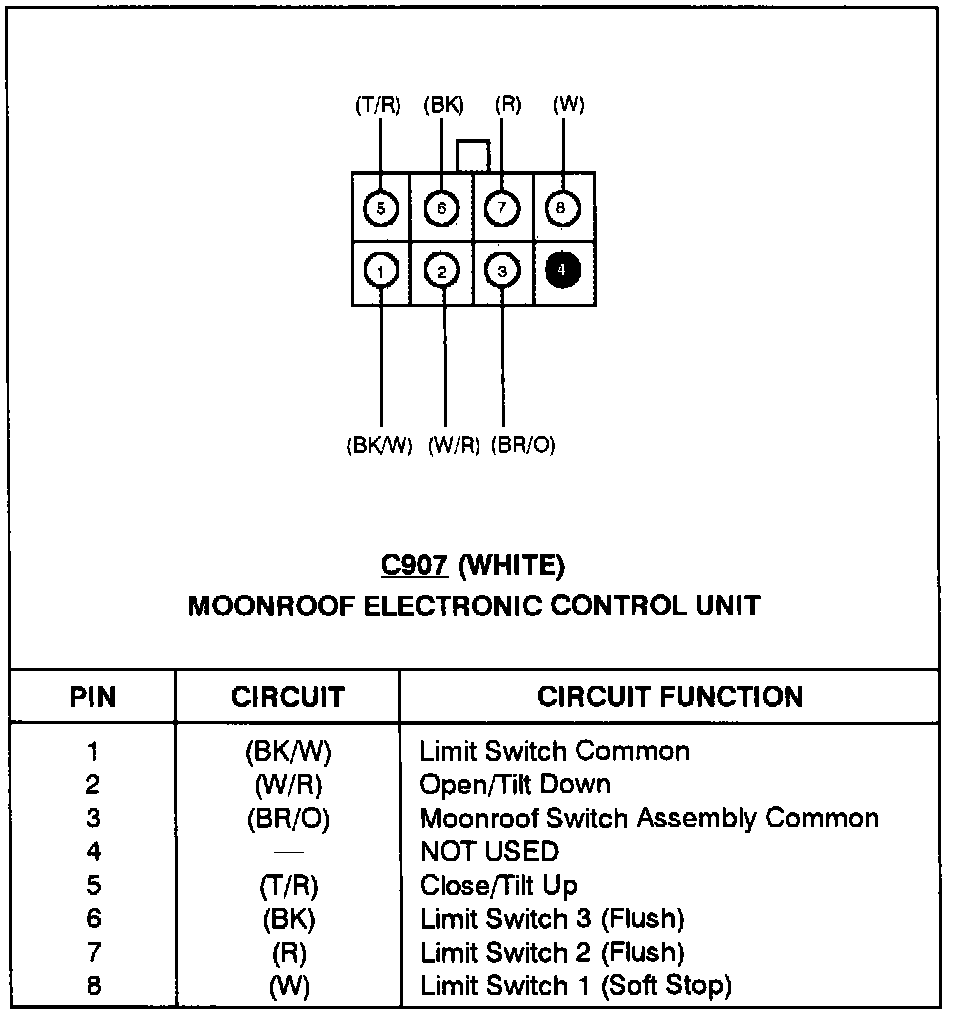

Moonroof Electronic Control Unit (C907):

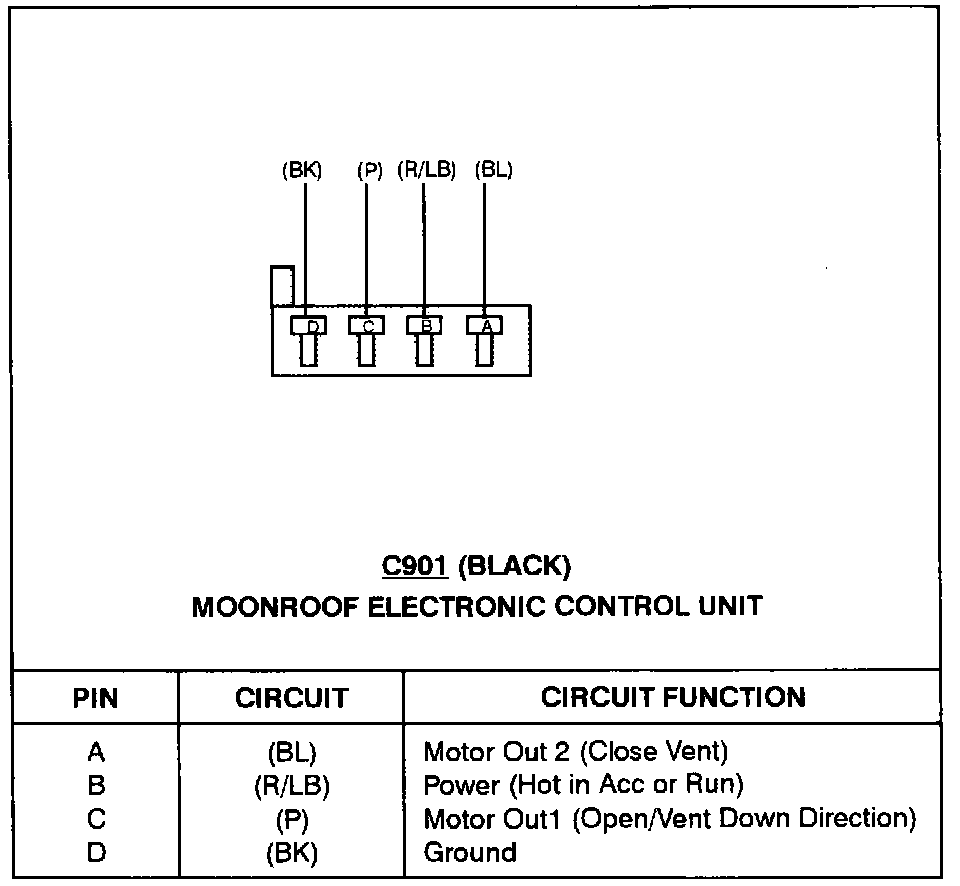

Moonroof Electronic Control Unit (C901):
