Outside Rear View Power Mirror

REMOVAL
1. Disconnect battery ground cable.
2. Remove front door trim panel.
3. Remove radio speaker from front door.
4. Peel back watershield as required.

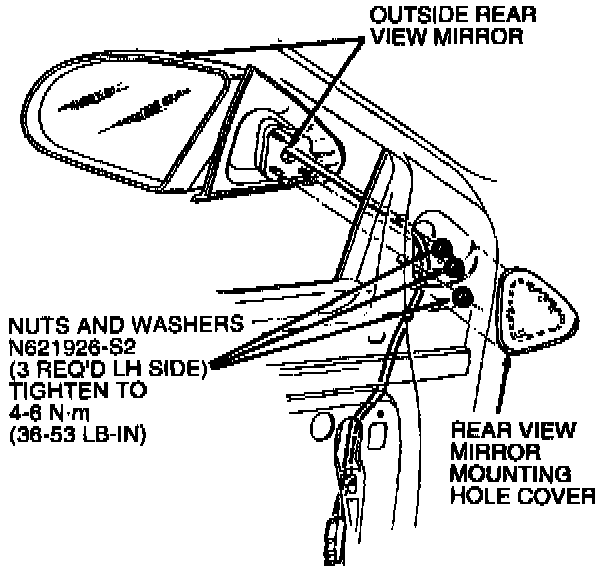

5. Remove rear view mirror mounting hole cover by pulling away from inner door panel.
6. Disconnect outside rear view mirror wiring connector and remove wiring guides as necessary.
7. Remove three retaining nuts and remove the outside rear view mirror while guiding the wiring and connector through hole in front door.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining nuts to 4-6 Nm (36-53 Lb-in).
