Outside Mirror Glass






REMOVAL

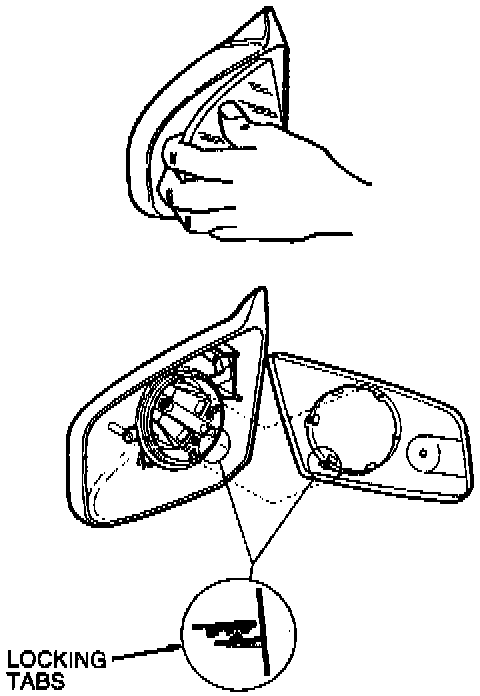

1. Push inner edge of outside rear view mirror glass into outside rear view mirror.
2. Grip outer edge of outside rear view mirror glass and pull out until outside rear view mirror glass snaps out of outside rear view mirror.

INSTALLATION
1. Line up locking tabs of outside rear view mirror glass to the outside rear view mirror.
2. Firmly push outside rear view mirror glass into place with the palm of the hand until it locks in.
