Power Mirror Motor: Service and Repair

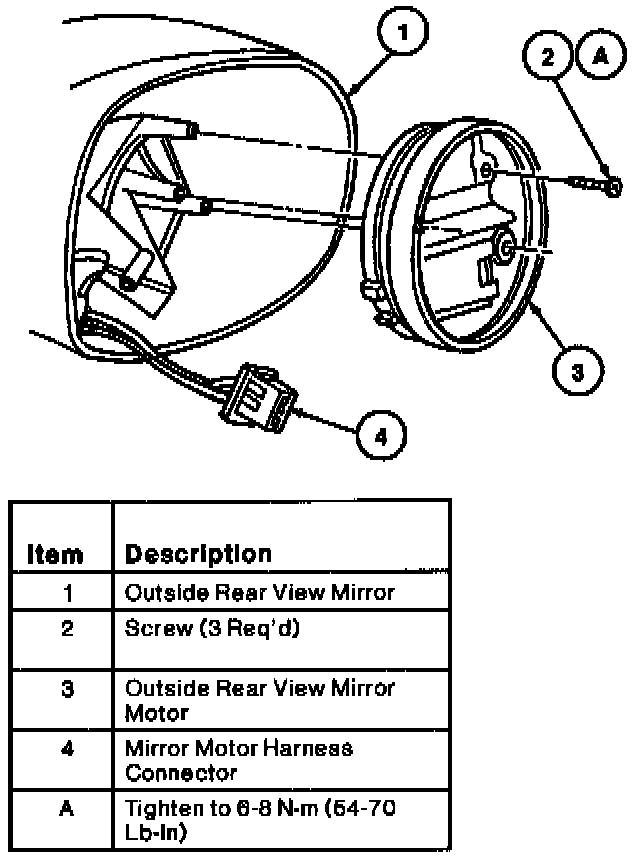

REMOVAL
1. Remove outside rear view mirror glass.
2. Remove three outside rear view mirror motor retaining screws and pull outside rear view mirror motor away from outside rear view mirror.
3. Disconnect outside rear view mirror motor connector and remove outside rear view mirror motor.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten outside rear view mirror motor retaining screws to 6-8 Nm (54-70 lb-in).
