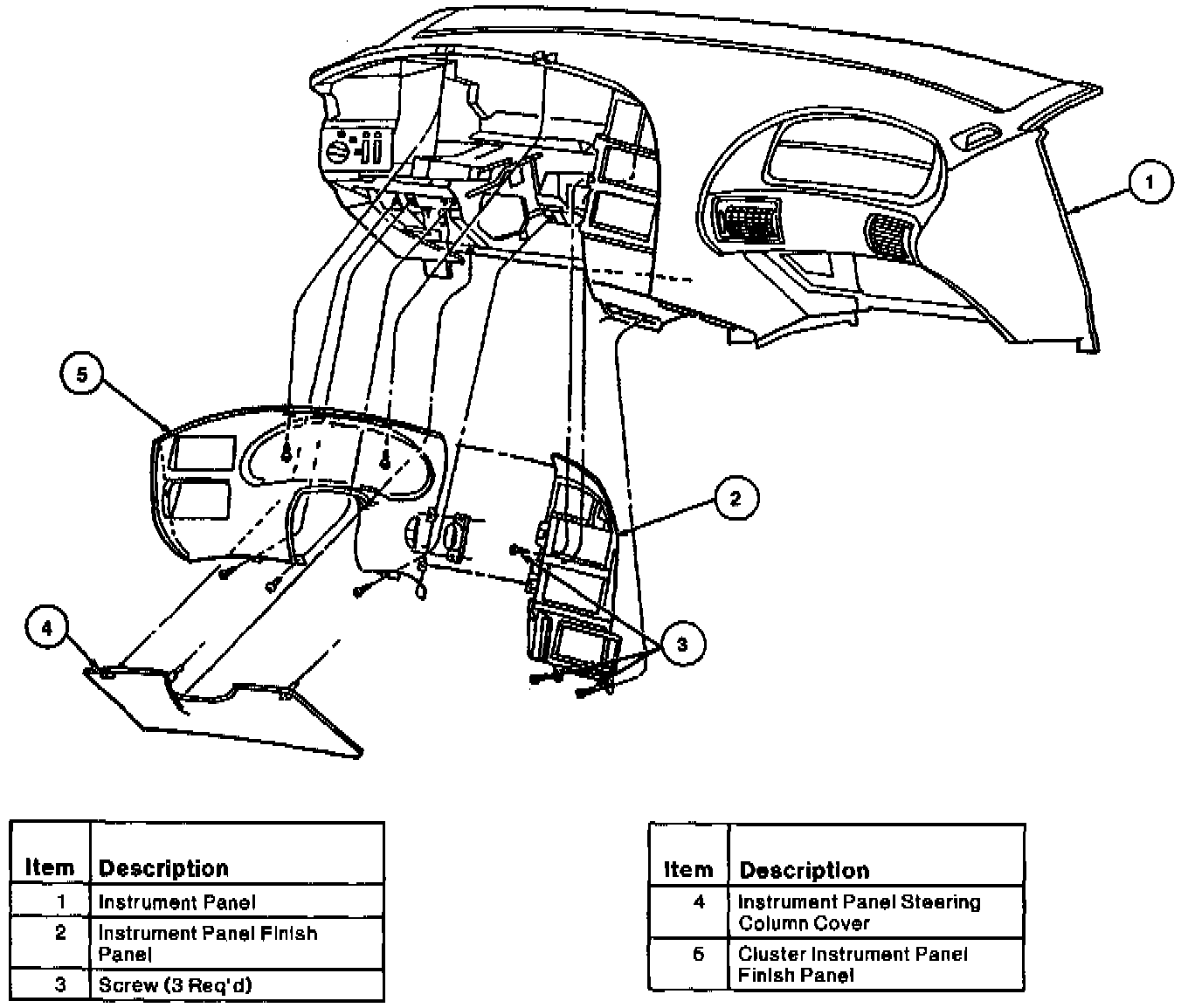

Instrument Panel - Finish Panel

REMOVAL
1. Remove cluster instrument panel finish panel.
2. Remove console finish panel from the top of the console panel.
3. Remove two screws retaining bottom of center instrument panel finish panel to instrument panel.
4. Remove one screw retaining the LH side of center instrument panel finish panel.
5. Pull center instrument panel finish panel to unsnap one clip to right of A/C control and one clip above A/C register.
6. Pull center instrument panel finish panel away from instrument panel and disconnect wiring and automatic temperature control sensor hose and elbow (if equipped).

INSTALLATION
1. Follow removal procedure in reverse order.
