Floor Console

REMOVAL

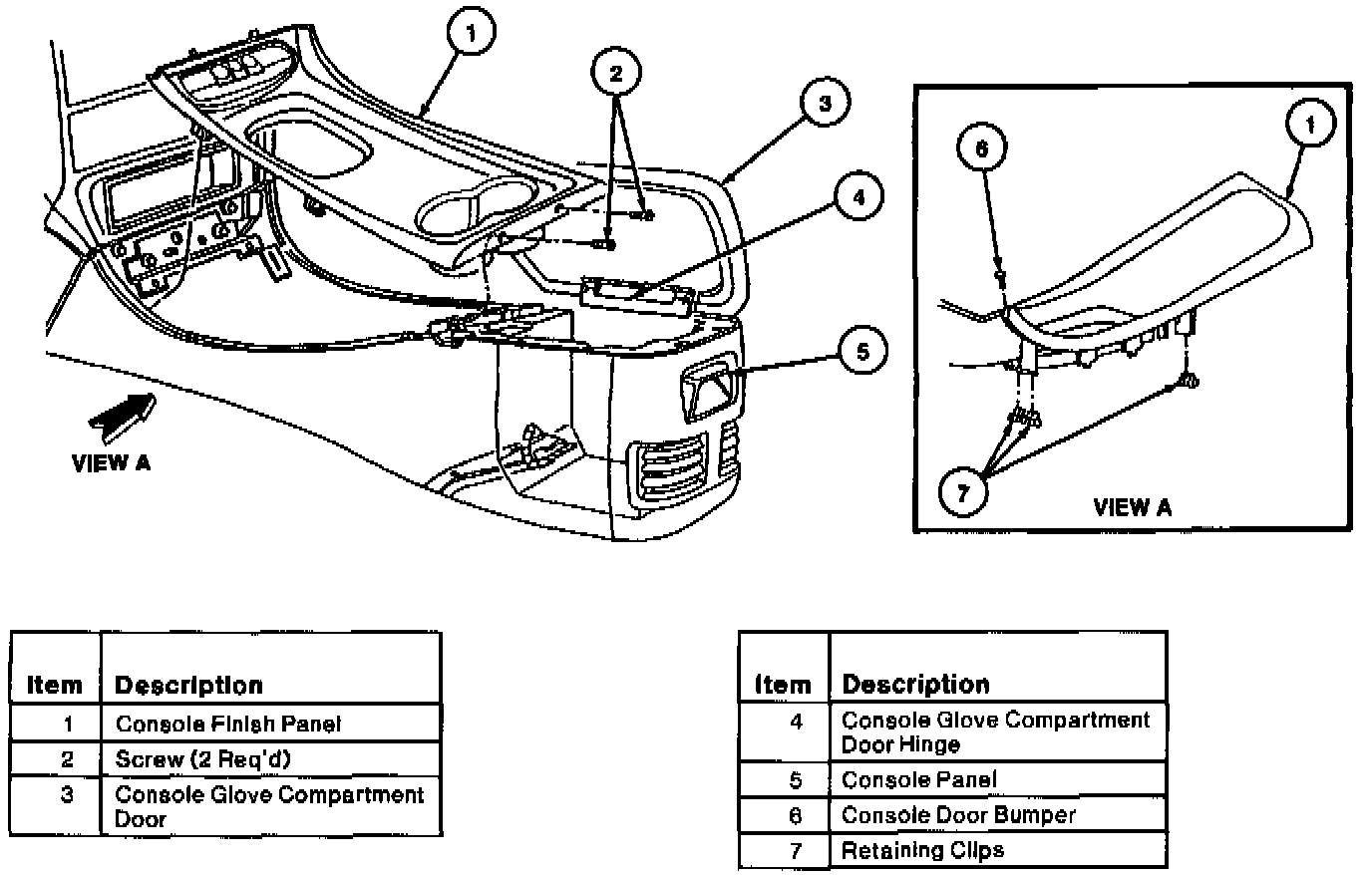

1. Open console glove compartment door to access screws to console finish panel.
2. Remove two screws and lift rear of console finish panel to unsnap snap-in retainers.
3. Lift rear of console finish panel and slide rearward to release two front locating tabs. Remove console finish panel.

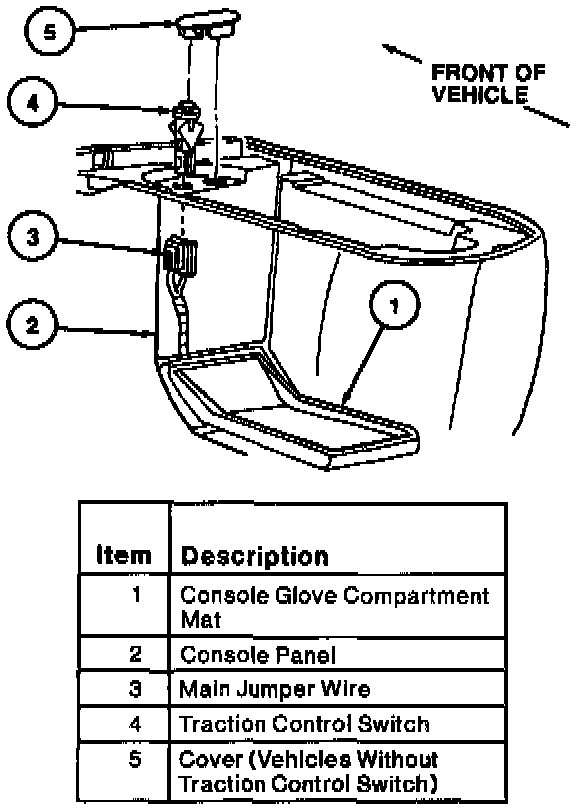

4. With console glove compartment door open, remove console glove compartment mat.







5. Remove screws from console glove compartment. Disconnect traction control switch (if equipped).

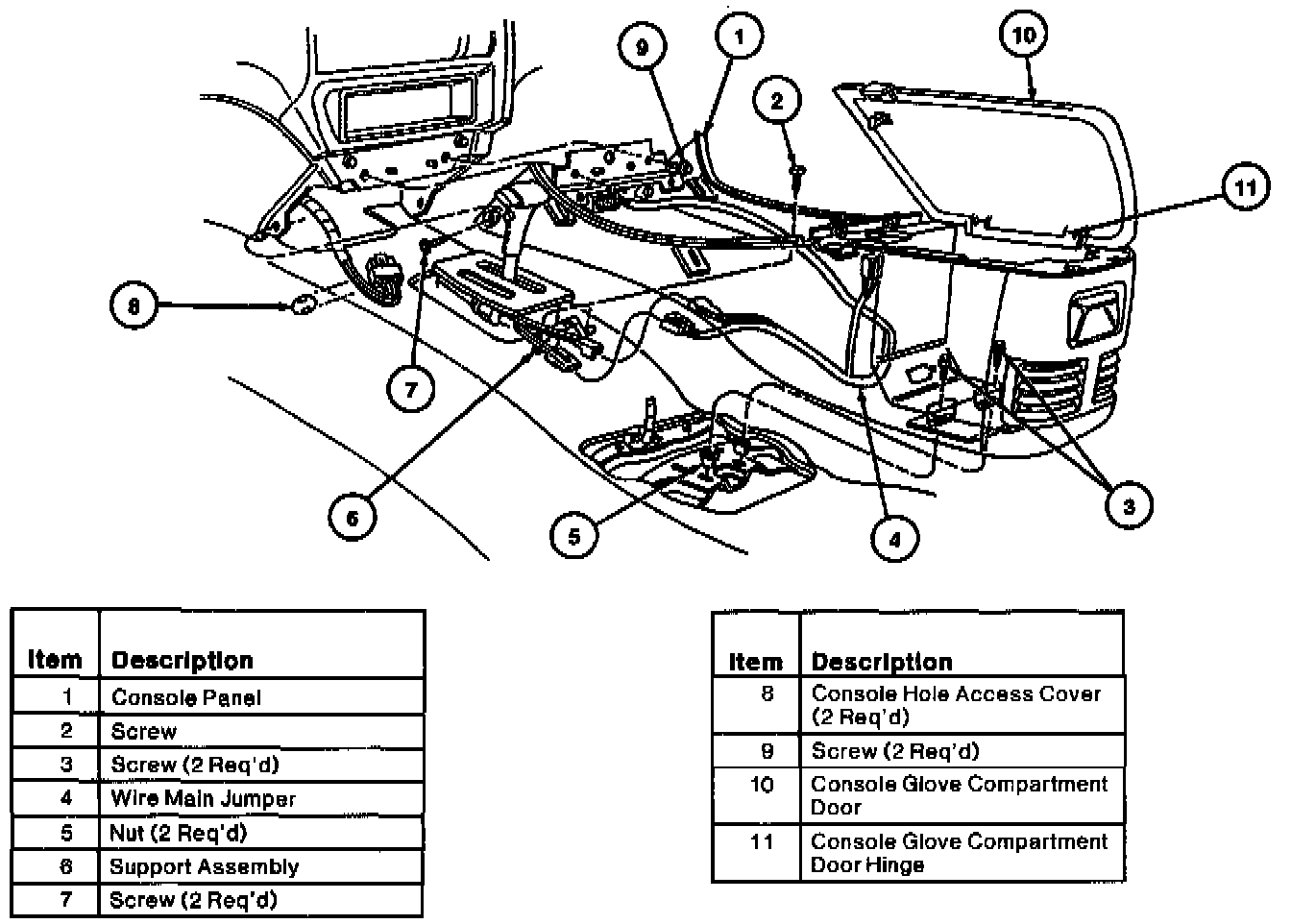

6. Remove two screws from bottom of console glove compartment to front floor pan.
7. Remove two caps and screws (one on either side). Remove floor console panel (front sides).
8. Remove two screws retaining front of floor console panel to instrument panel. Disconnect main jumper wire and main wiring. Lift console panel from vehicle.

INSTALLATION
1. Follow removal procedure in reverse order.
