Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Sound System Function Pinpoint Tests >> D: Radio/Compact Disc Display Blank-Radio/Compact Disc Operates

D: Radio/Compact Disc Display Blank-Radio/Compact Disc Operates

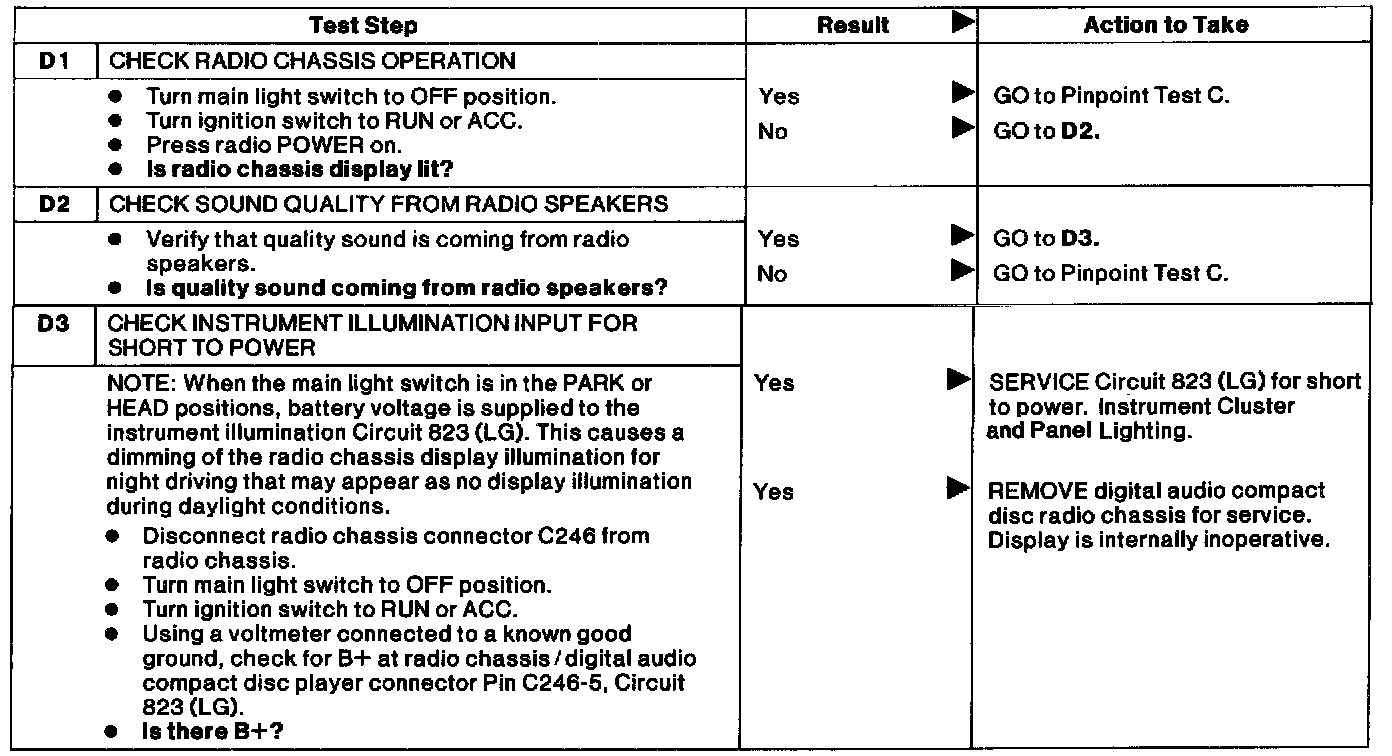

D1 - D3:
