FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1997
>>
Cougar/XR7 V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Sound System Function Pinpoint Tests
>>
A: Radio/Tape Player Inoperative/Does Not Operate Properly
A: Radio/Tape Player Inoperative/Does Not Operate Properly

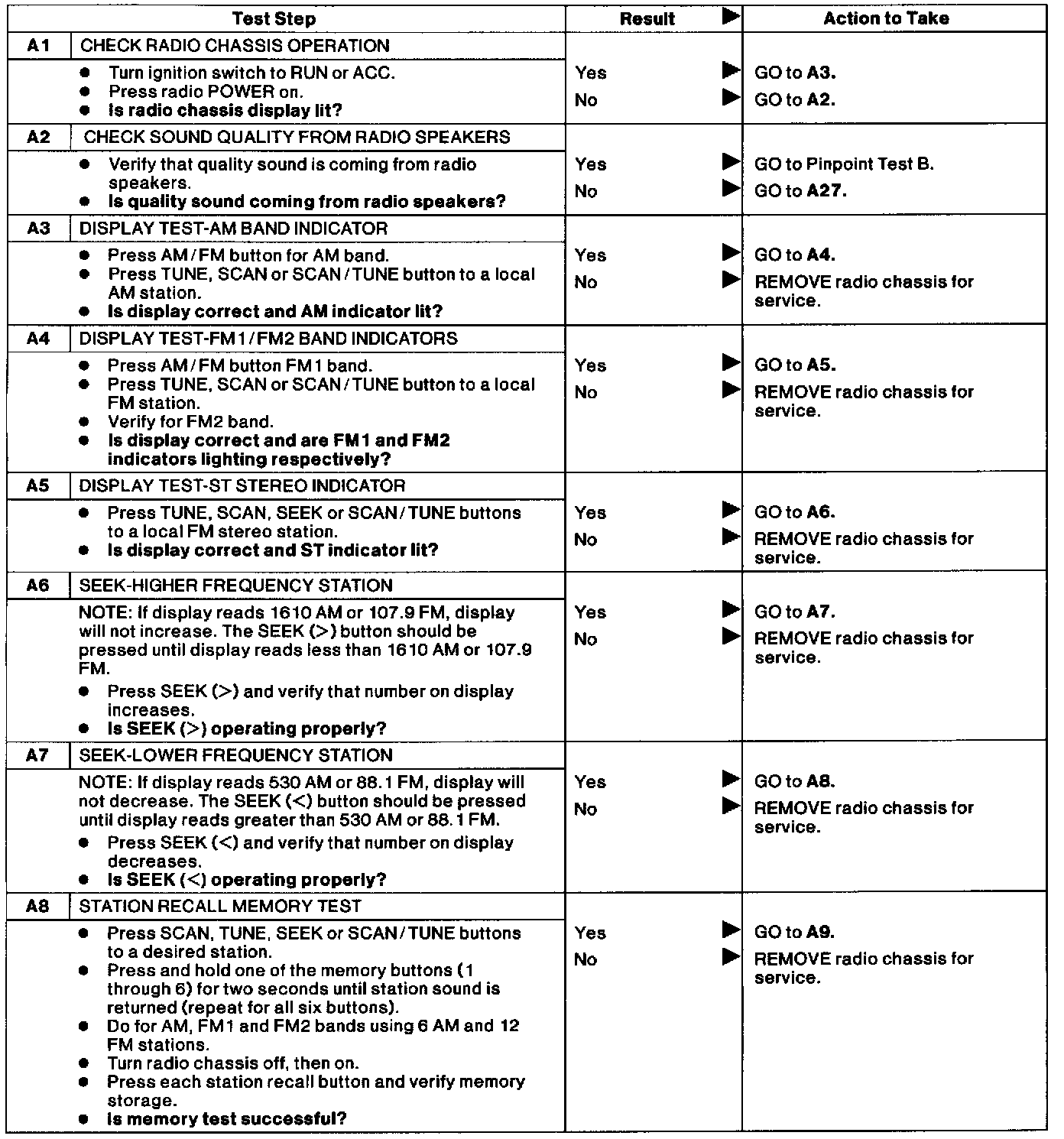

A1 - A8:

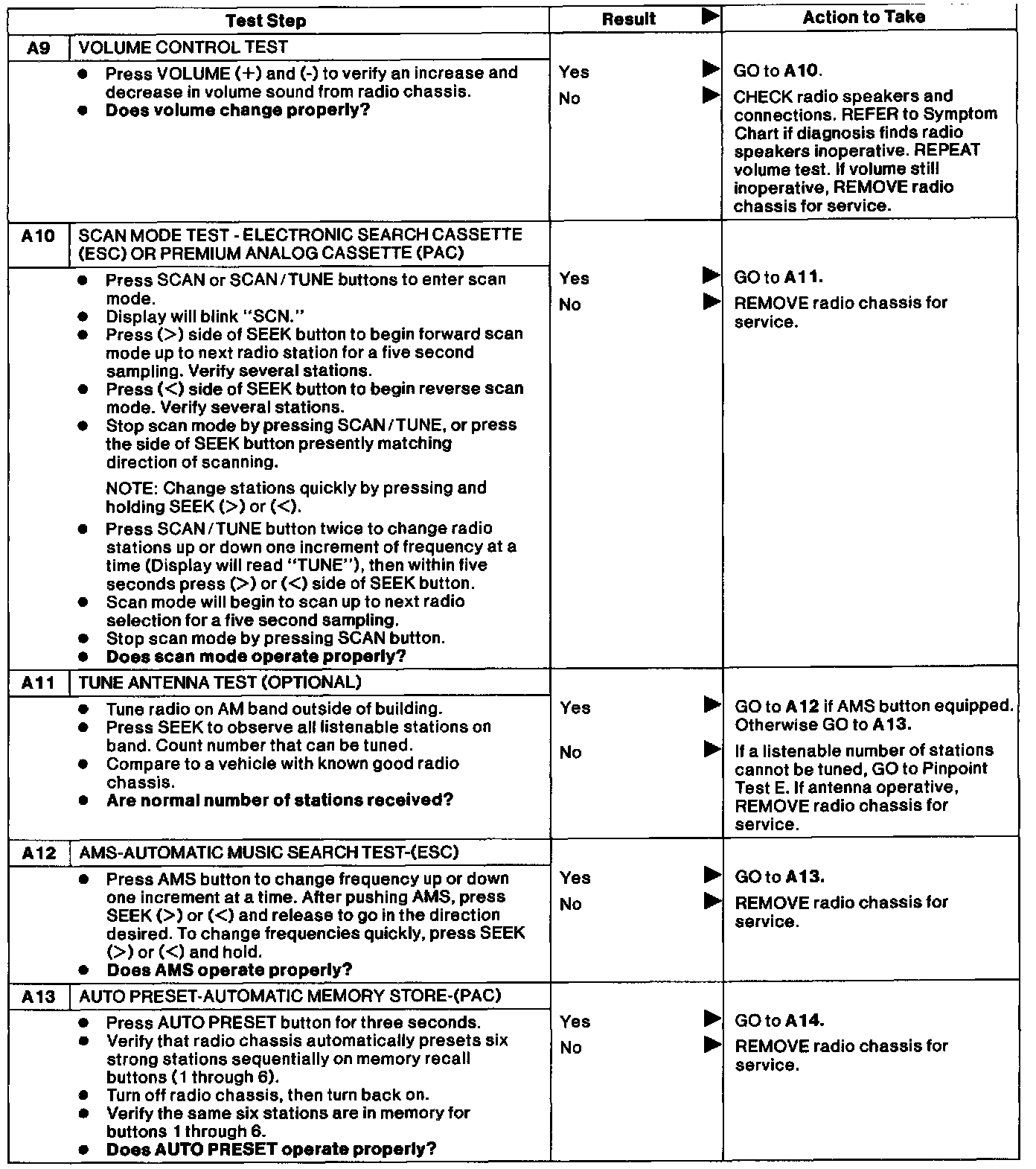

A9 - A13:

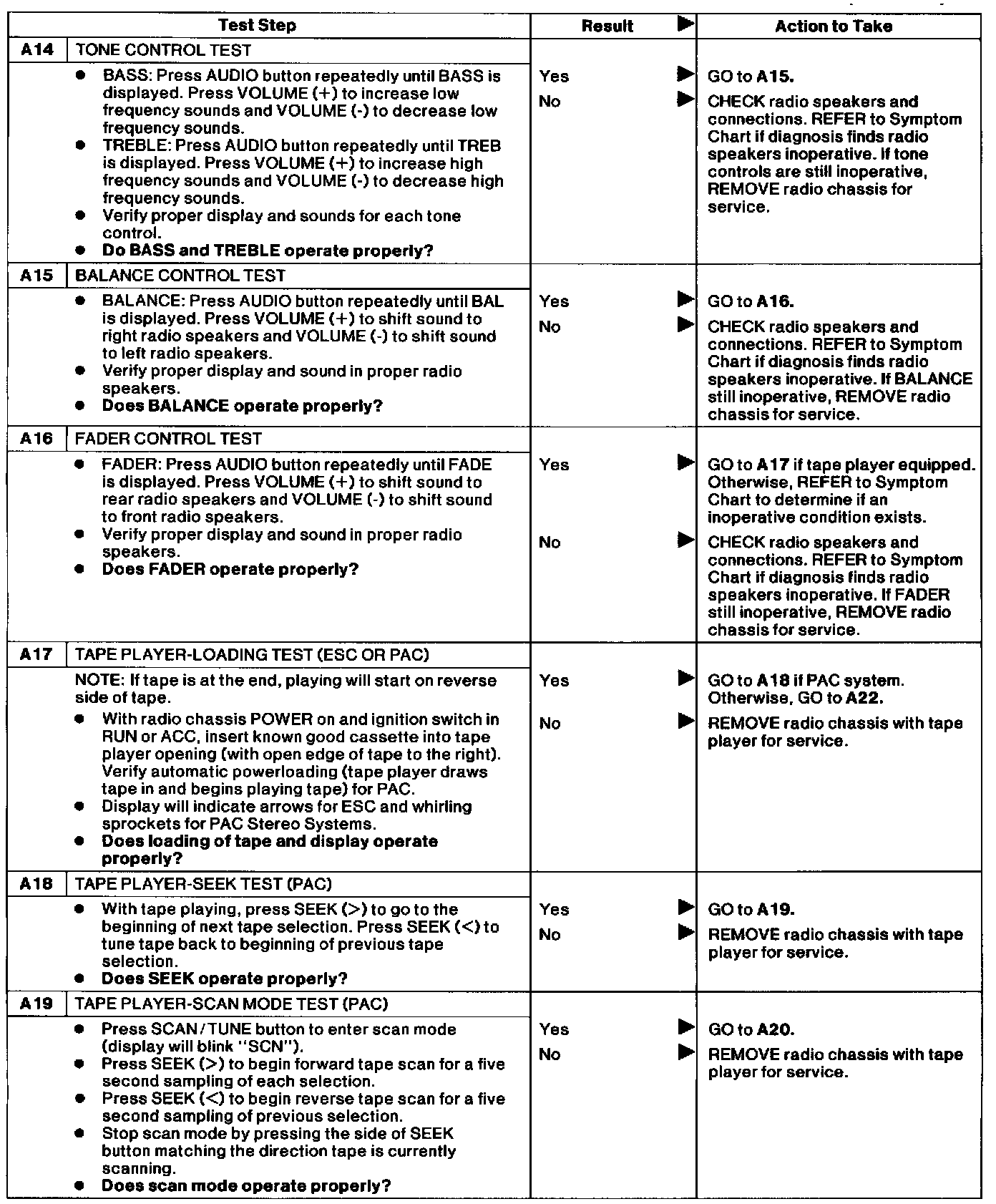

A14 - A19:

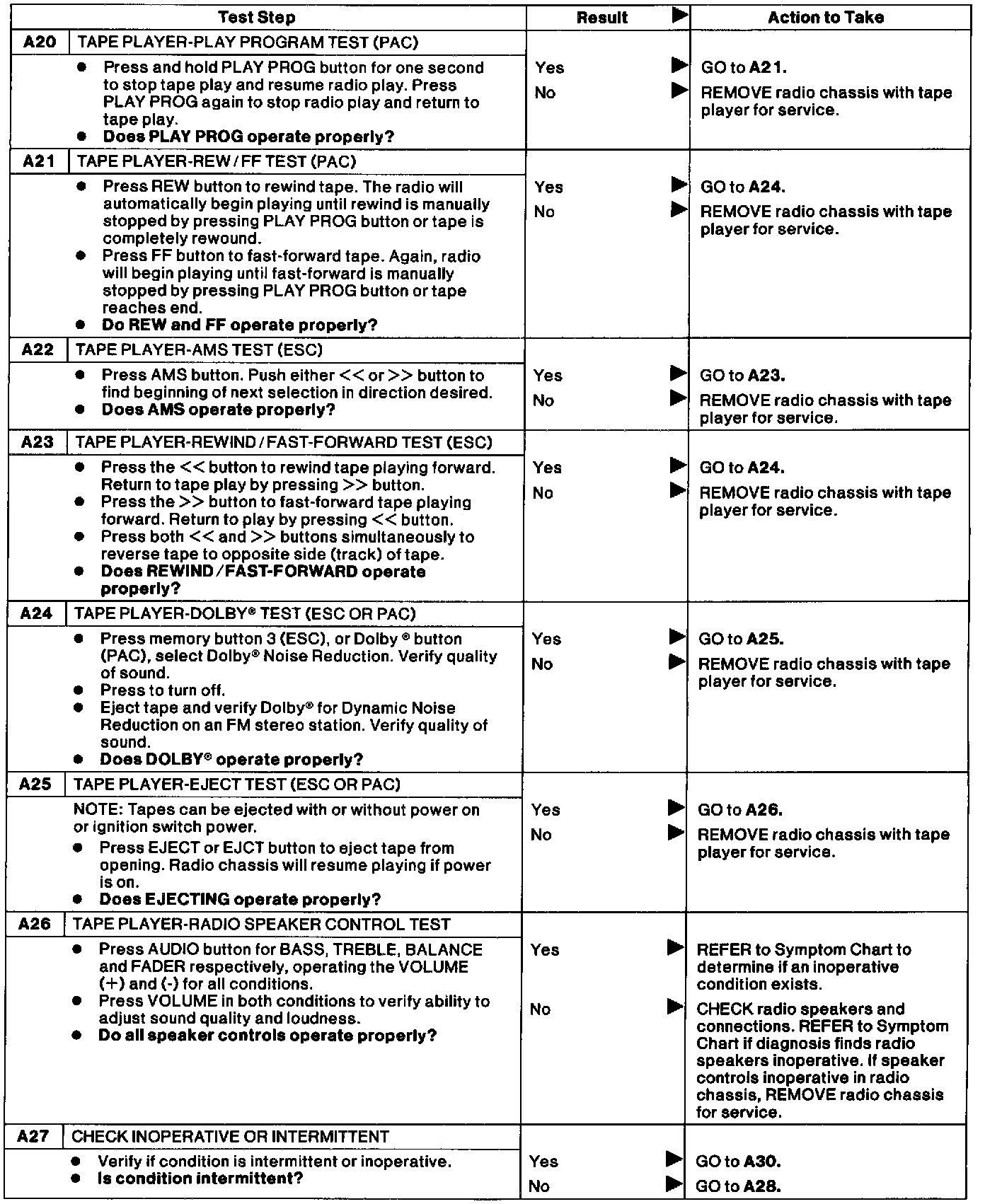

A20 - A27:

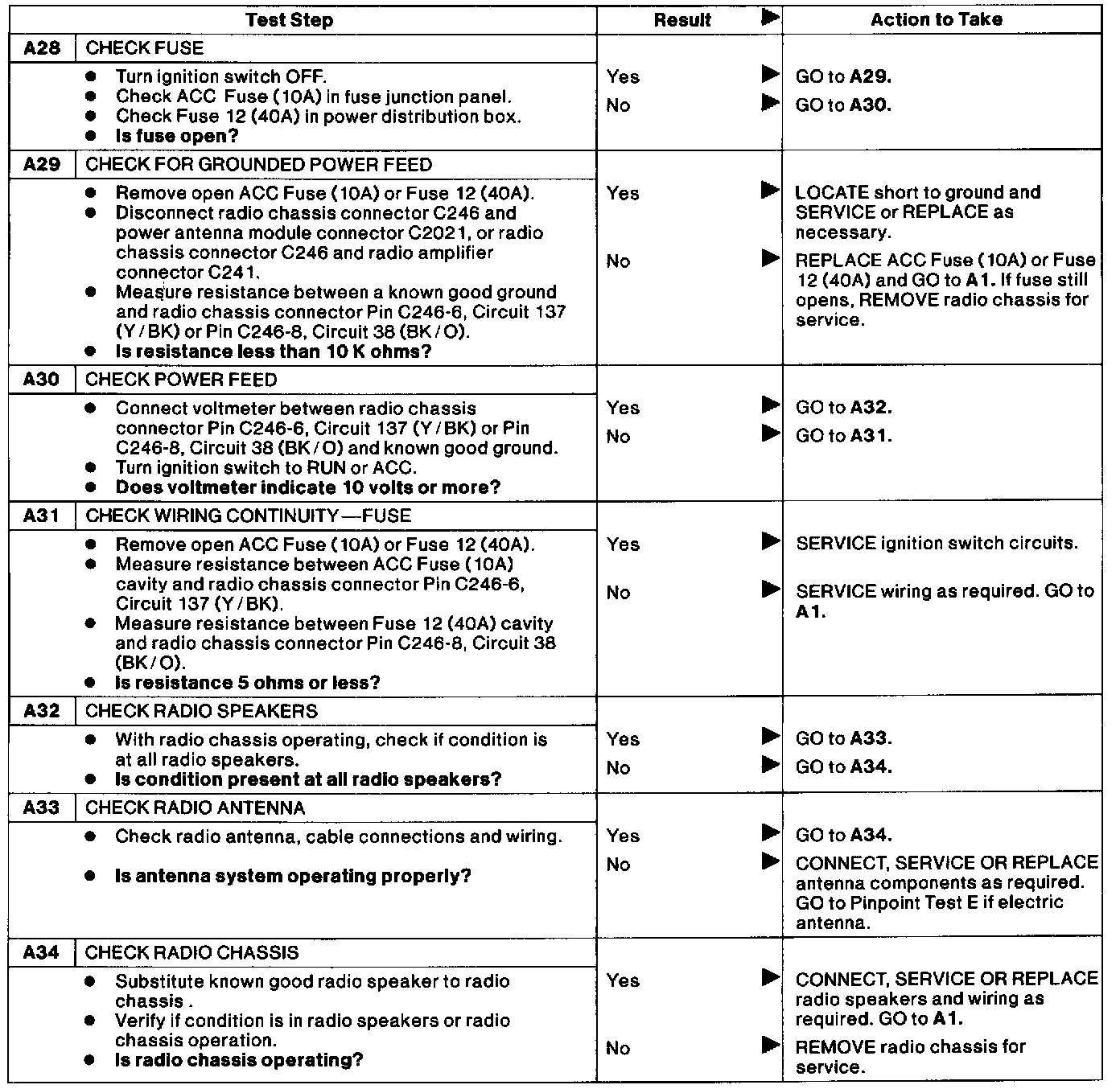

A28 - A34:
