Radio, Stereo, and Compact Disc: Description and Operation

There are three combinations of audio system components available on Thunderbird, Cougar vehicles:
- Electronic Search Cassette (ESC) radio chassis
- Premium Analog Cassette (PAC) radio chassis
- Digital Audio Compact Disc (CDR) radio chassis. The base system consists of four base radio speakers.

Premium
The premium audio system consists of the Premium Analog Cassette radio chassis and a separate radio amplifier or the Digital Audio Compact Disc radio chassis.

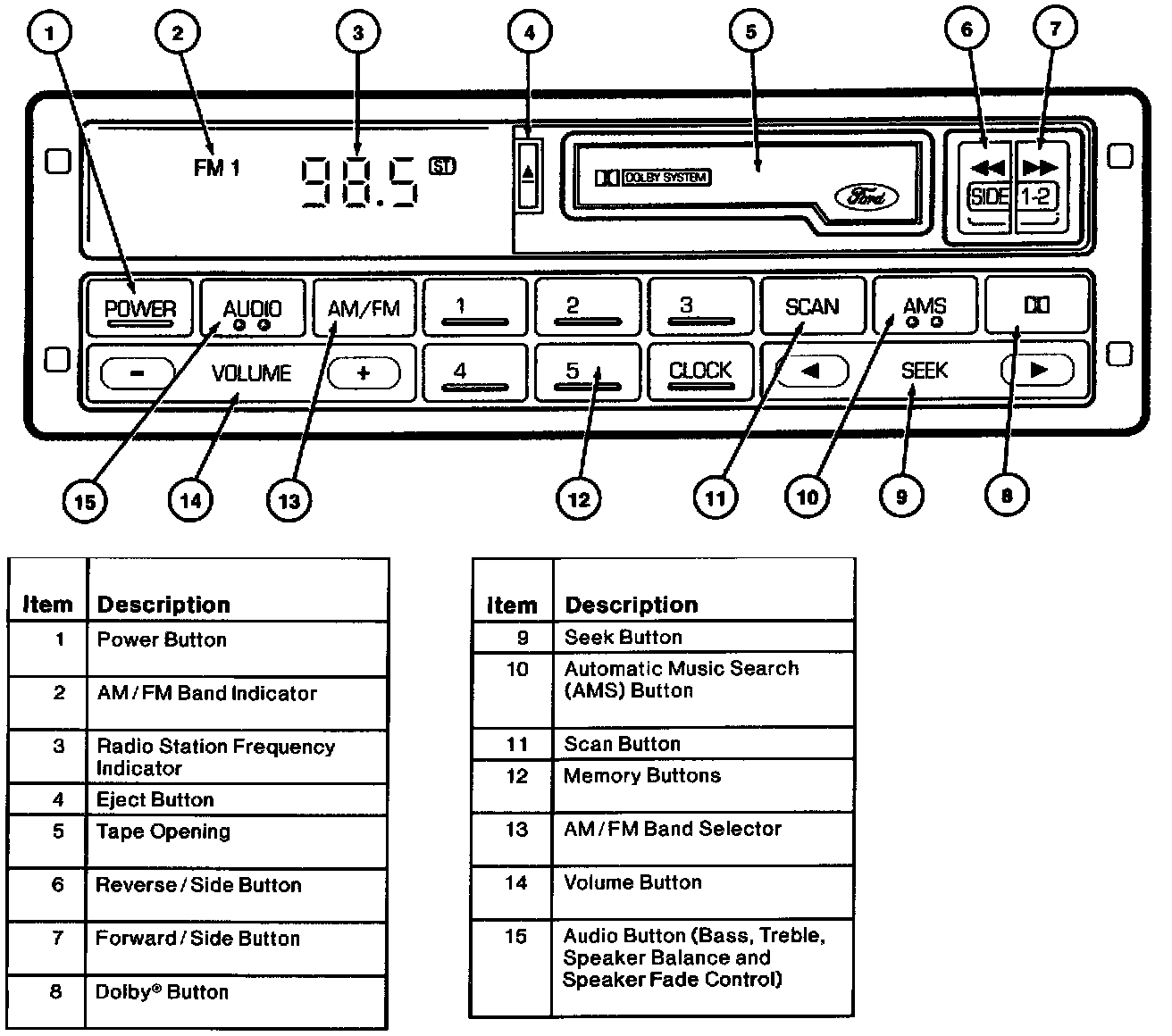

Electronic Search Cassette Radio Chassis Controls
Refer to Owner Guide for complete operating guidelines.

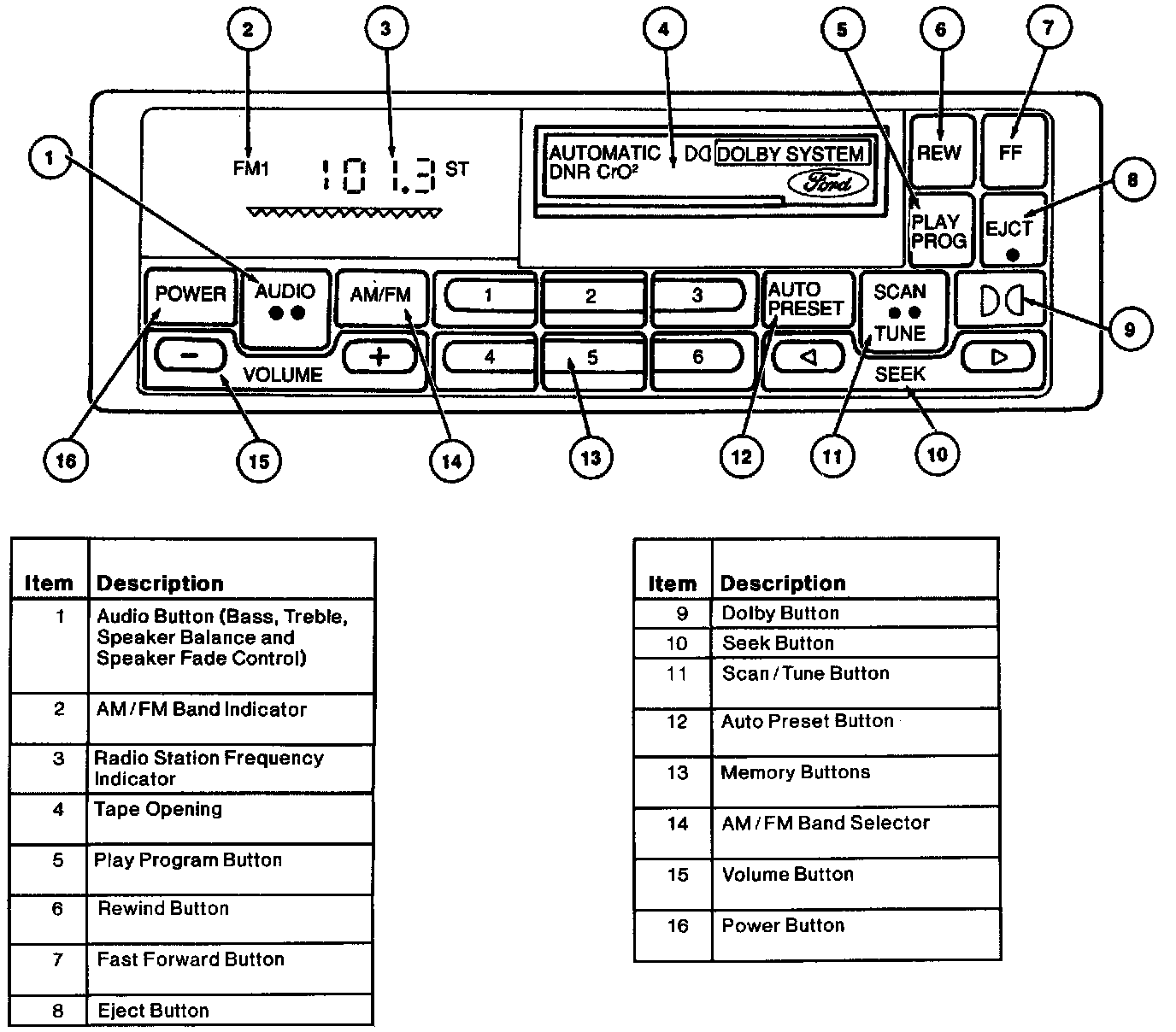

Premium Analog Cassette Radio Chassis Controls
Refer to Owner Guide for complete operating guidelines.

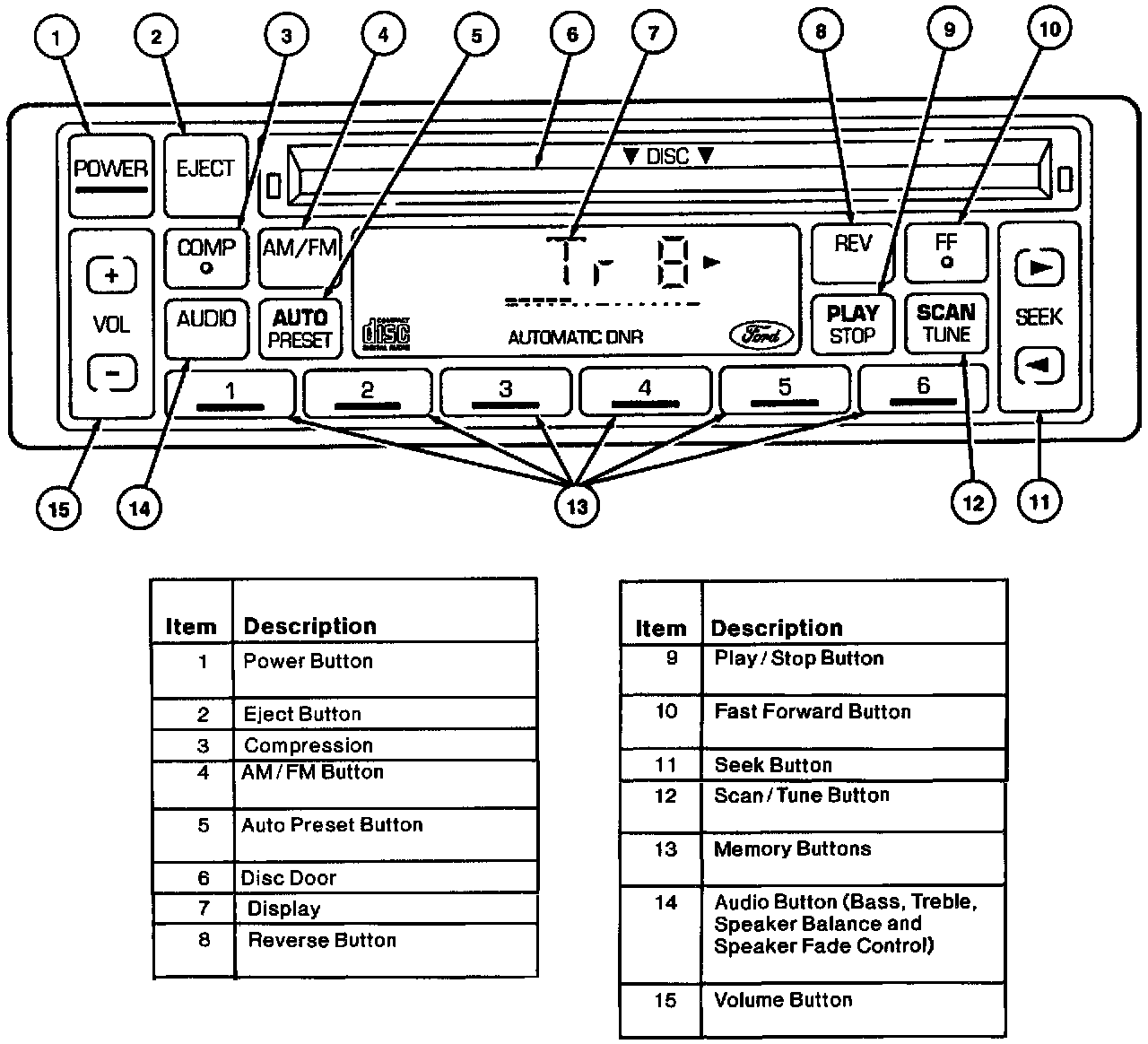

Digital Audio Compact Disc Player Chassis Controls
Refer to Owner Guide tar complete operating guidelines.

WARNING: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD AS THE LASER BEAM USED IN THE DIGITAL AUDIO COMPACT DISC PLAYER IS HARMFUL TO THE EYES. DO NOT ATTEMPT TO DISASSEMBLE THE CASE. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Audio system radio chassis abbreviations are as follows:
- Electronic Search Cassette (ESC)
- Premium Analog Cassette (PAC)
- Compact Disc Radio (CDR)
