Ignition Key In Signal: Service and Repair

REMOVAL
1. Disconnect battery ground cable.





2. Remove ignition switch lock cylinder from steering column lock cylinder housing.

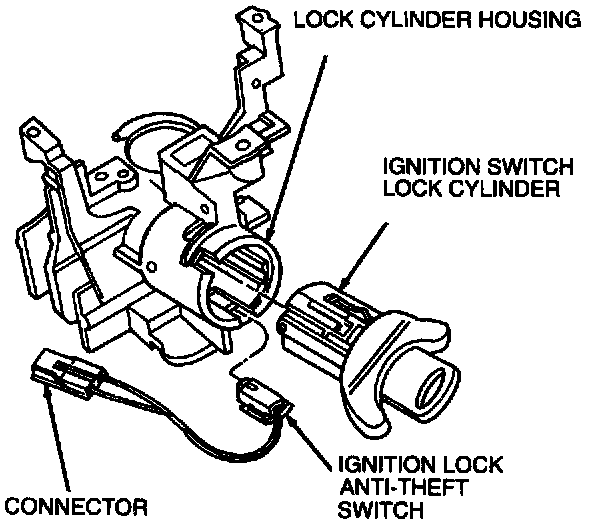

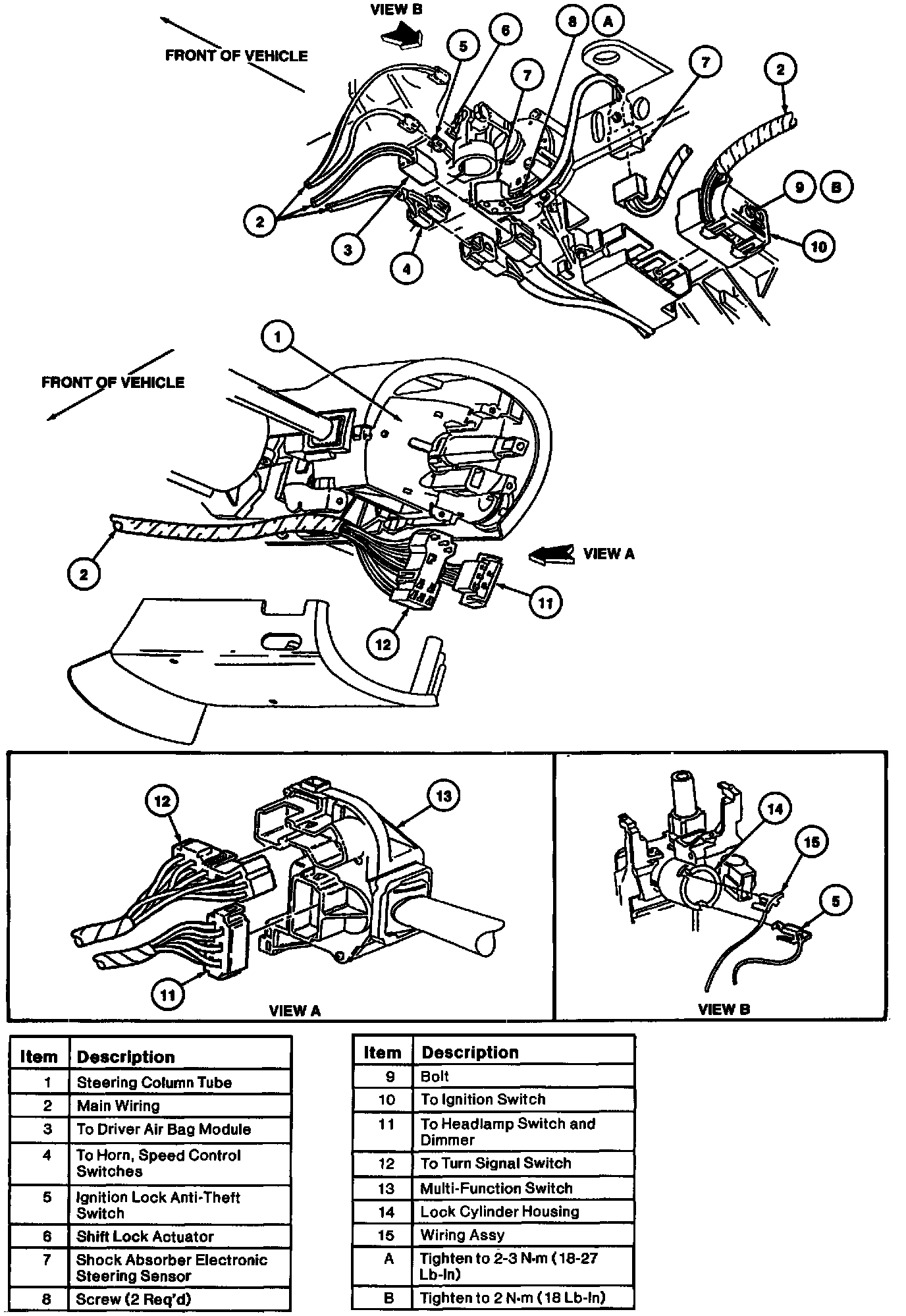

3. Locate ignition lock anti-theft switch attached to steering column housing next to key warning switch.
4. Slide ignition lock anti-theft switch off steering column casting.
5. Disconnect ignition lock anti-theft switch from wiring harness.

INSTALLATION
1. Follow removal procedure in reverse order.
