Wiper Motor Tests

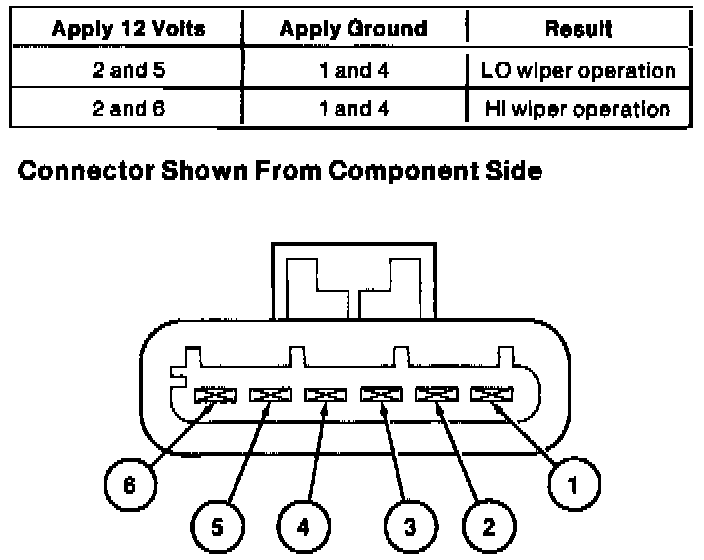

Wiper Motor Connector Test.:





Disconnect wiper motor connector, then refer to image for wiper motor test.
