Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Reference Charts
>>
Band/Clutch Application Chart
Band/Clutch Application Chart

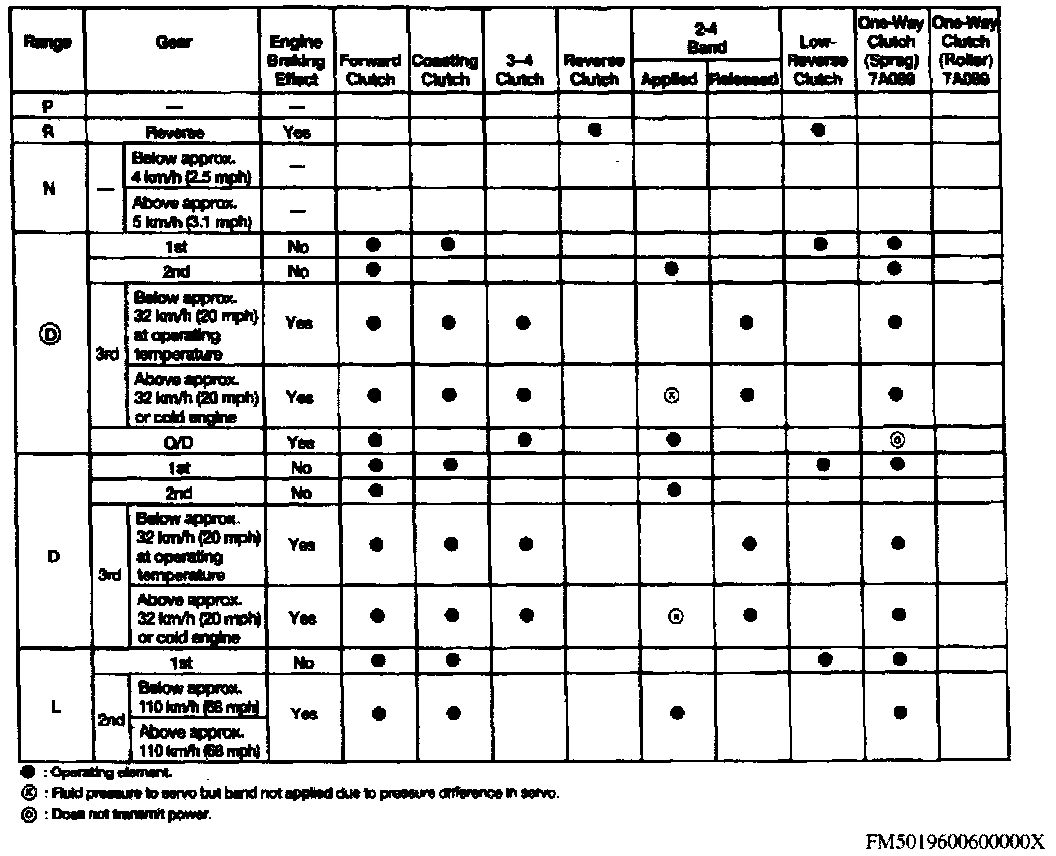

Band And Clutch Application Chart:
