Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
B - Control Pressure Test
B - Control Pressure Test

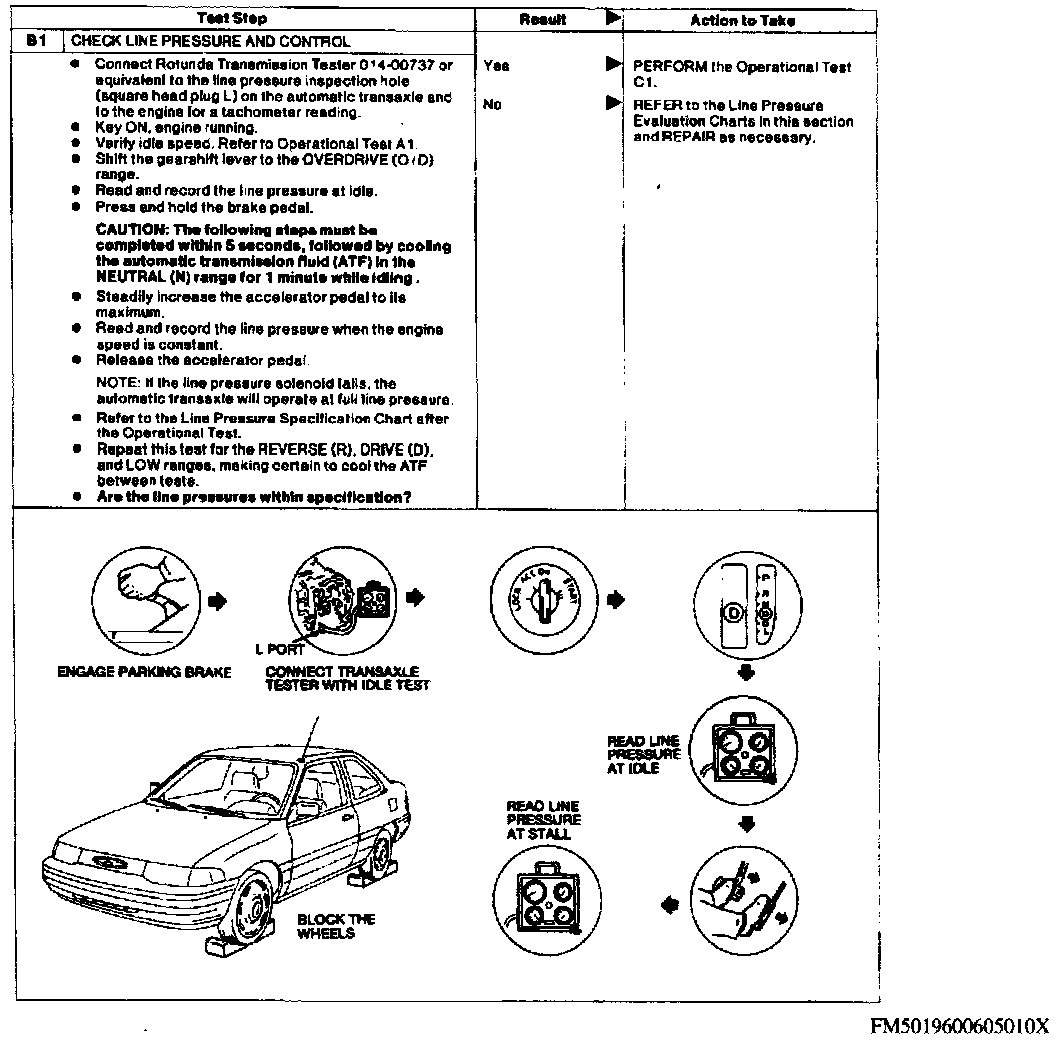

B1 - Control Pressure Test:

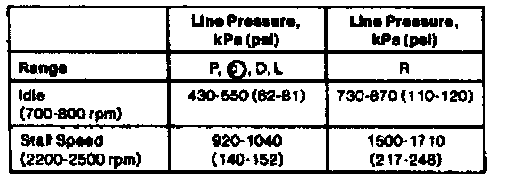

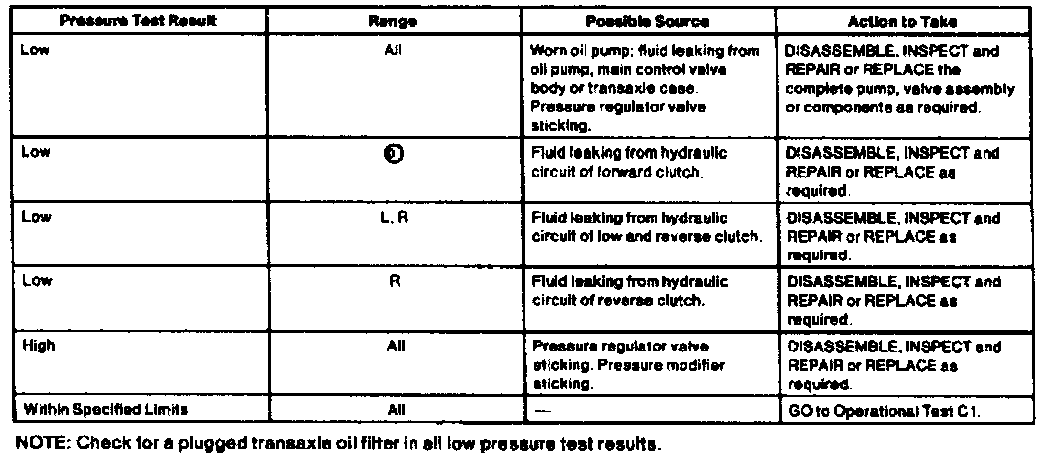

Line Pressure Test Evaluation Chart (Part 1 Of 2):
Line Pressure Test Evaluation Chart (Part 2 Of 2):
