Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> M/T Torque Data

M/T Torque Data

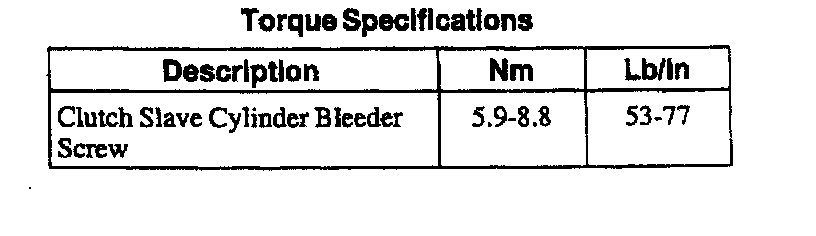

G5M5 5-spd M/T, Clutch Slave (Escort/Tracer):

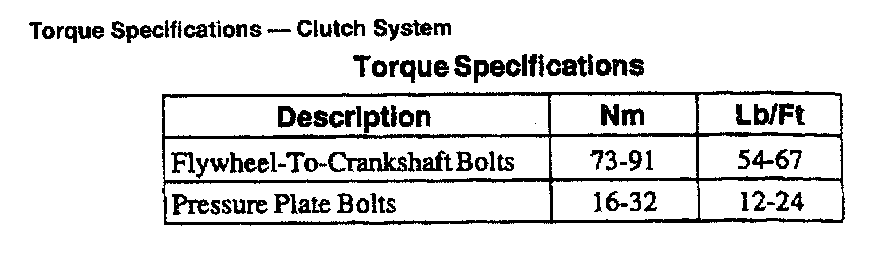

G5M5 5-spd M/T, Clutch Flywheel/Pressure Plate:

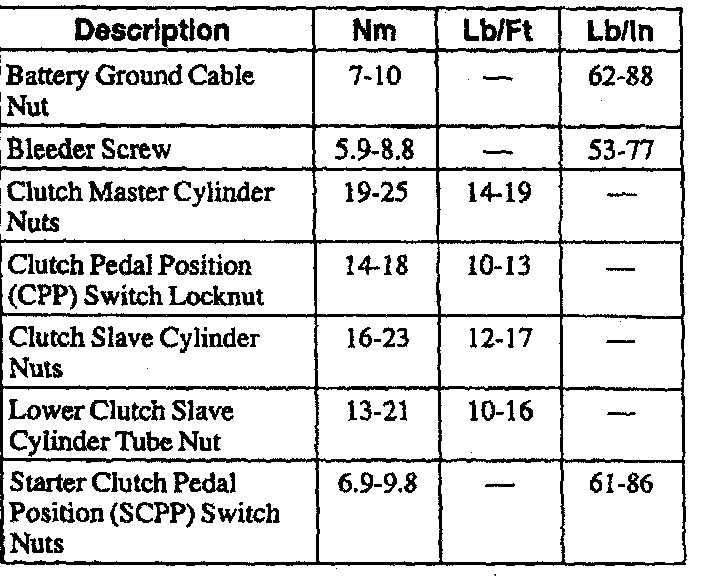

G5M5 5-spd M/T, Clutch Controls:

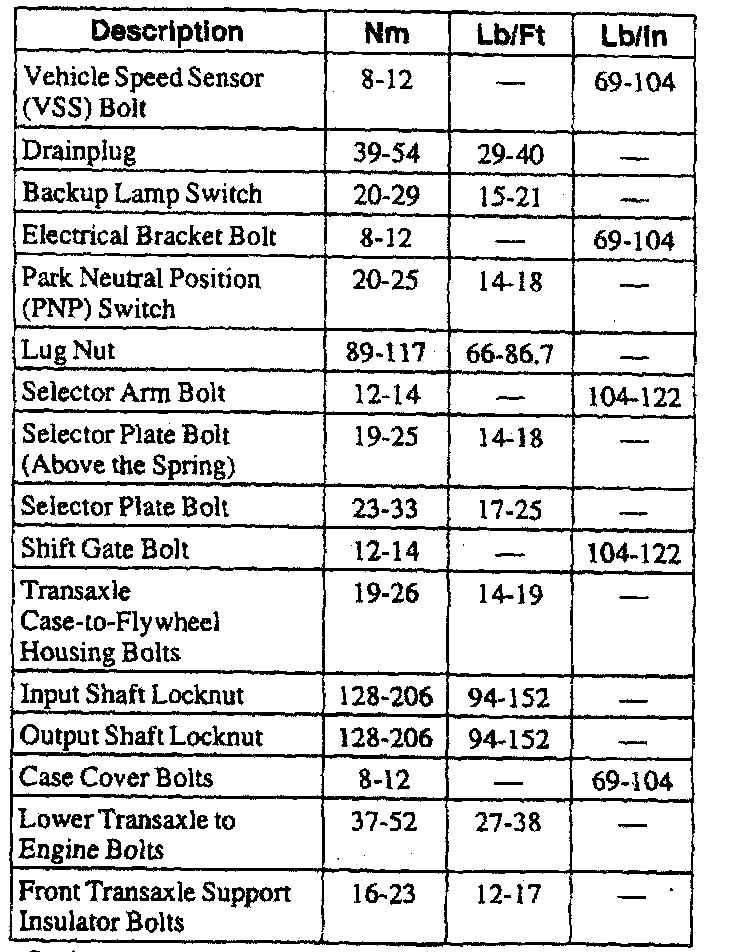

G5M5 5-spd M/T, Transaxle:

G5M5 5-spd M/T, Transaxle Cont.:
