Inertia Fuel Shutoff Switch
>>
Service and Repair
>>
Reset
Reset

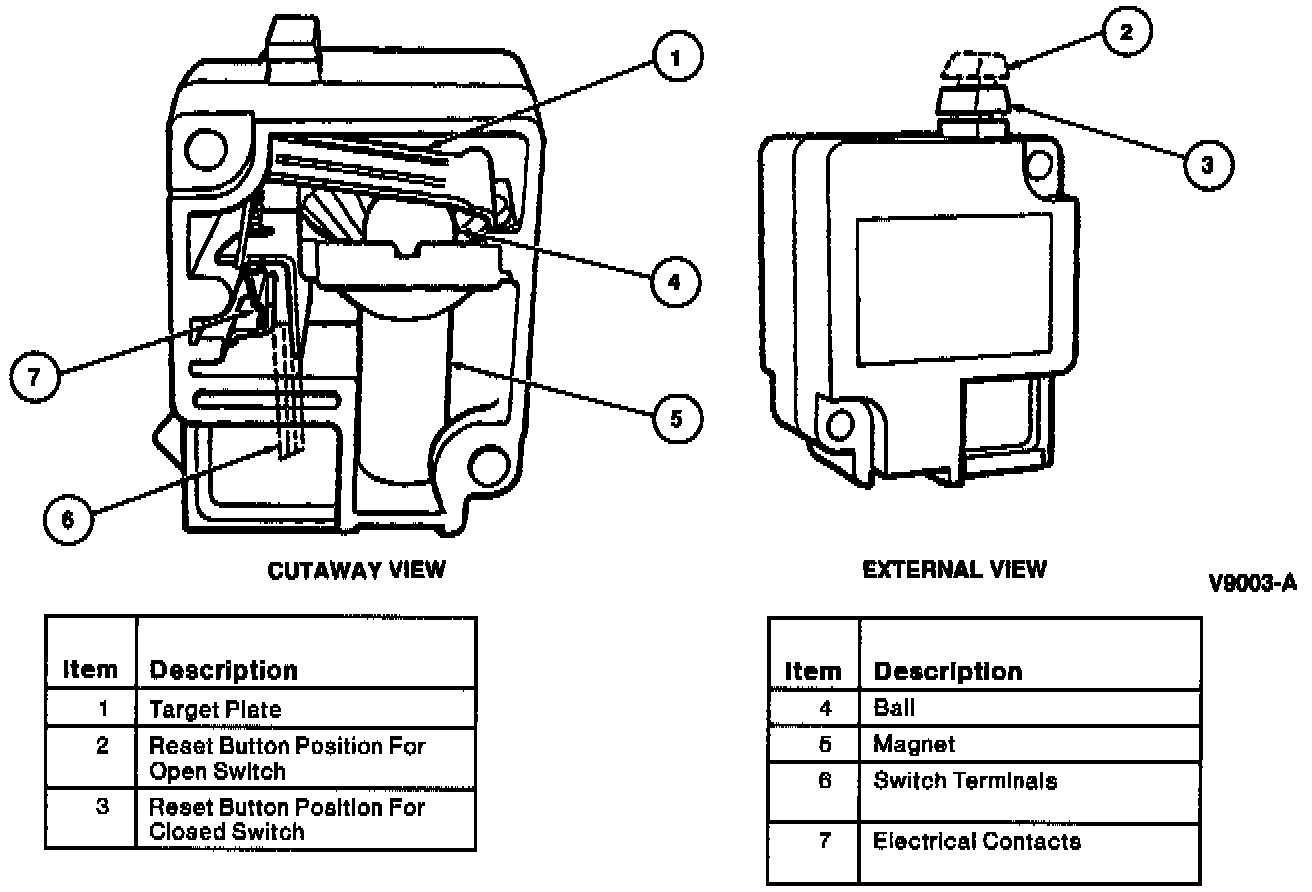

Inertia Fuel Shutoff Switch:
WARNING: Do not reset the inertia fuel shutoff switch until the fuel system has been inspected for leaks.
To reset the Inertia Fuel Shutoff
(IFS)
switch, depress the button on top of the switch.
