Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
Coolant Temperature Sensor/Switch (For Computer): Locations

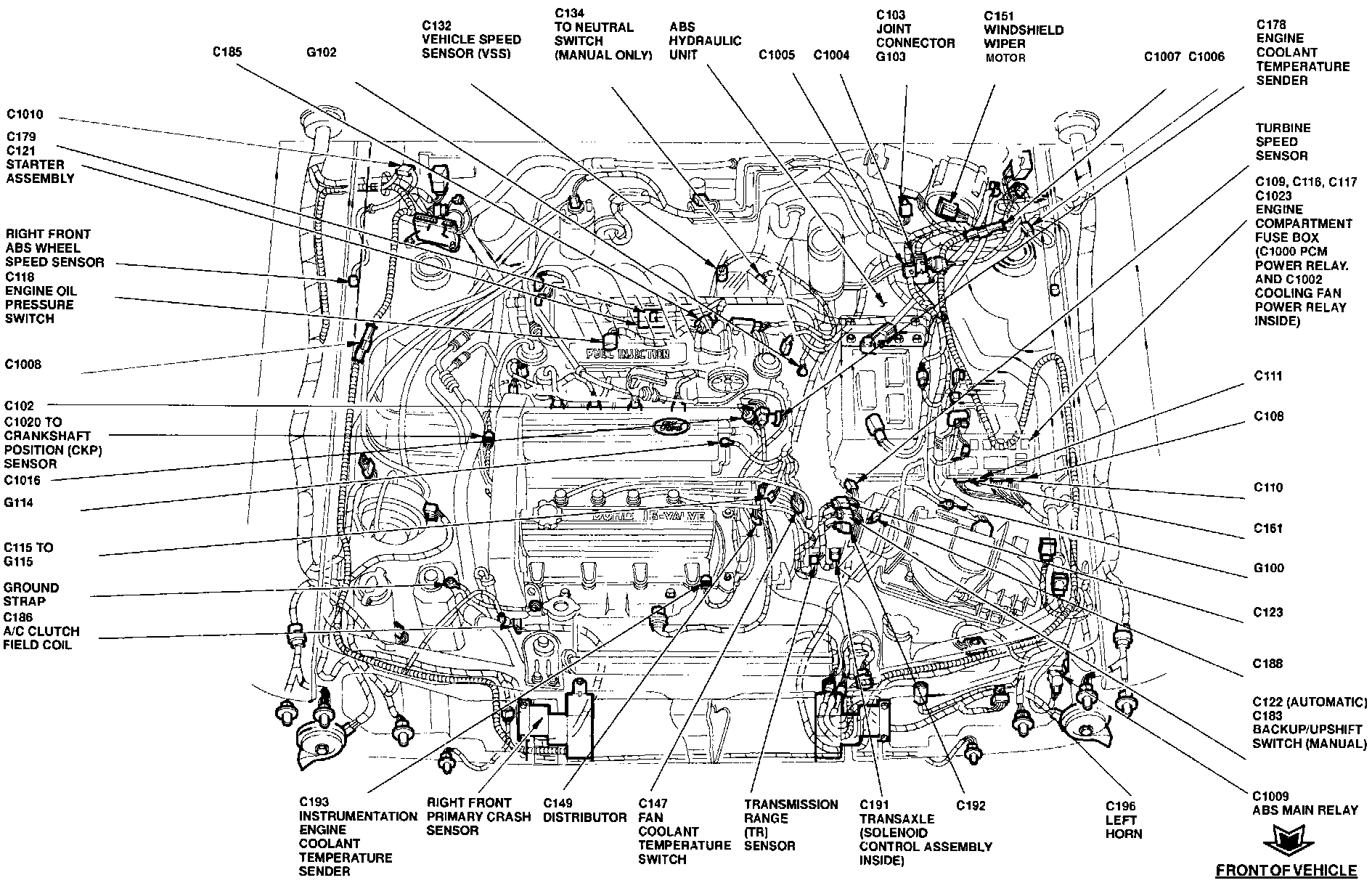

Engine View:
The Engine Coolant Temperature Sensor is located on the top LH side of the engine.
