Headlamp Dimmer Switch: Testing and Inspection

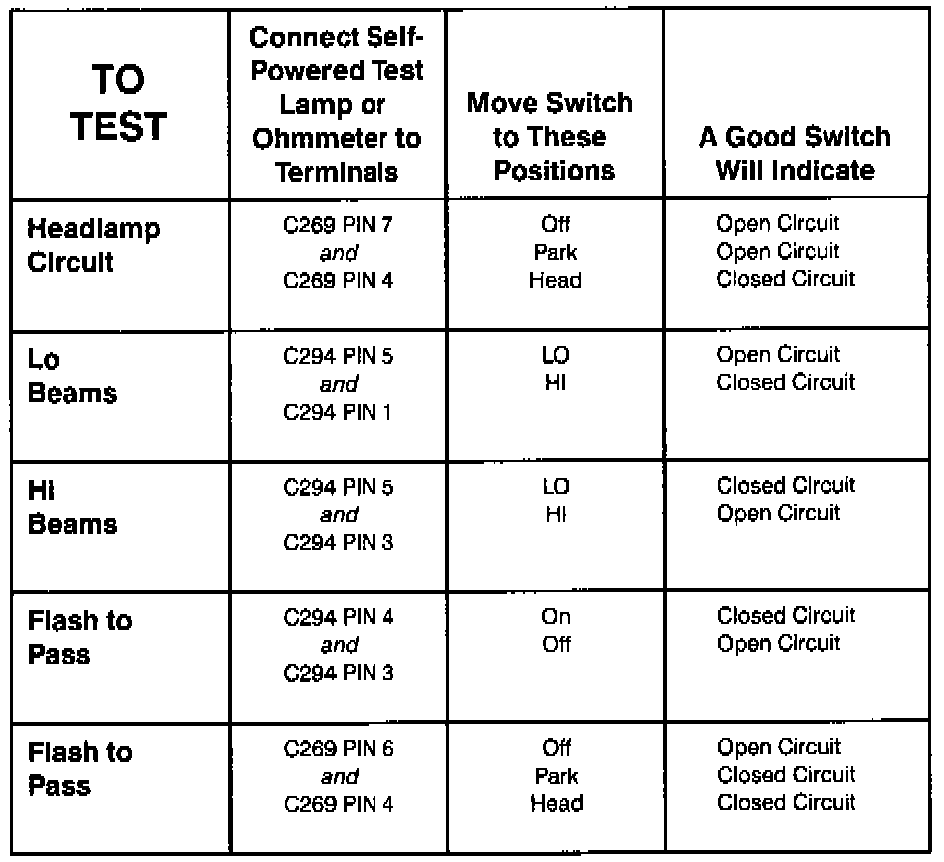

Multi-Function Switch - Component Testing Procedure:




Multi-Function Switch - Terminal Locations:




Multi-Function Switch - Schematic:
