Power Mirror Switch: Testing and Inspection

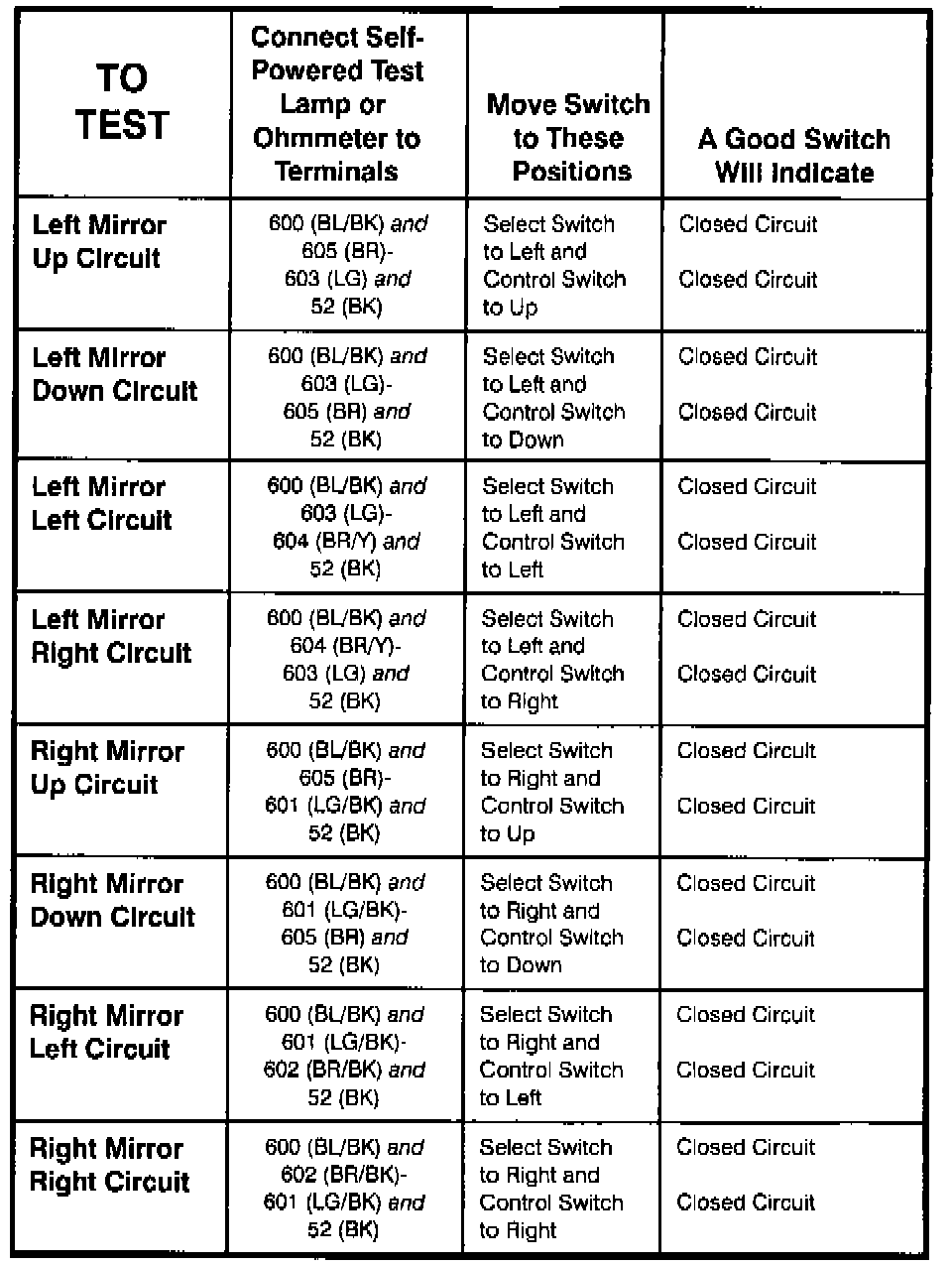

Power Mirror Switch - Component Testing Procedure:

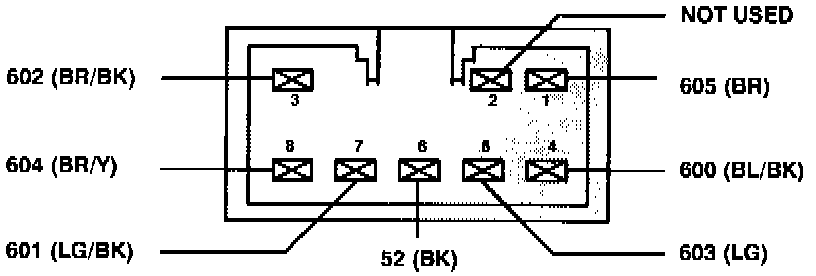

Power Mirror Switch - Terminal Locations:

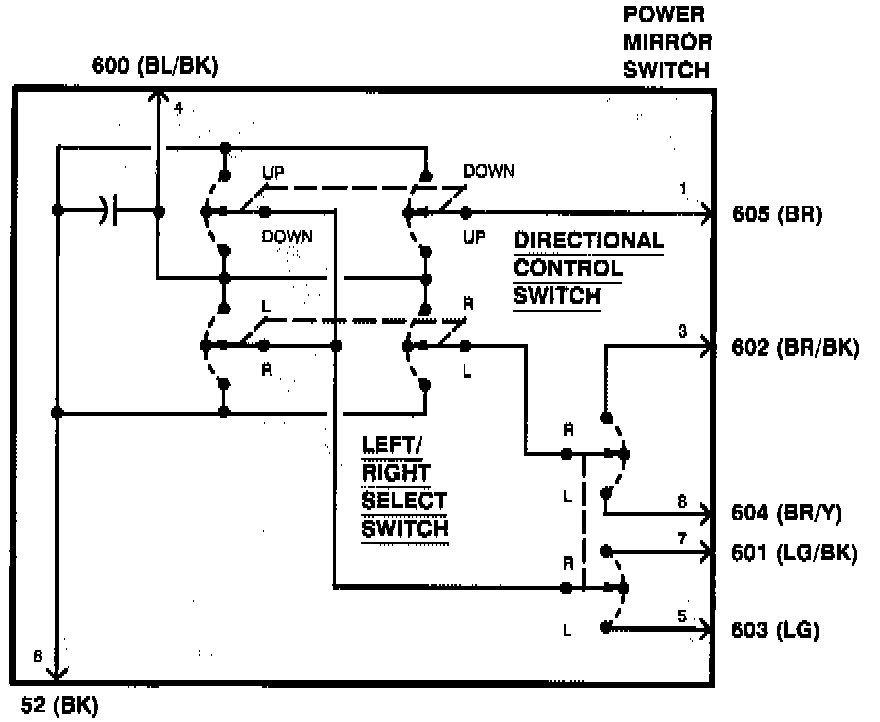

Power Mirror Switch - Schematic:
