Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Technical Service Bulletins >> Passive Restraint - Incorrect Information in Manual >> Pinpoint Tests >> Test C

Test C

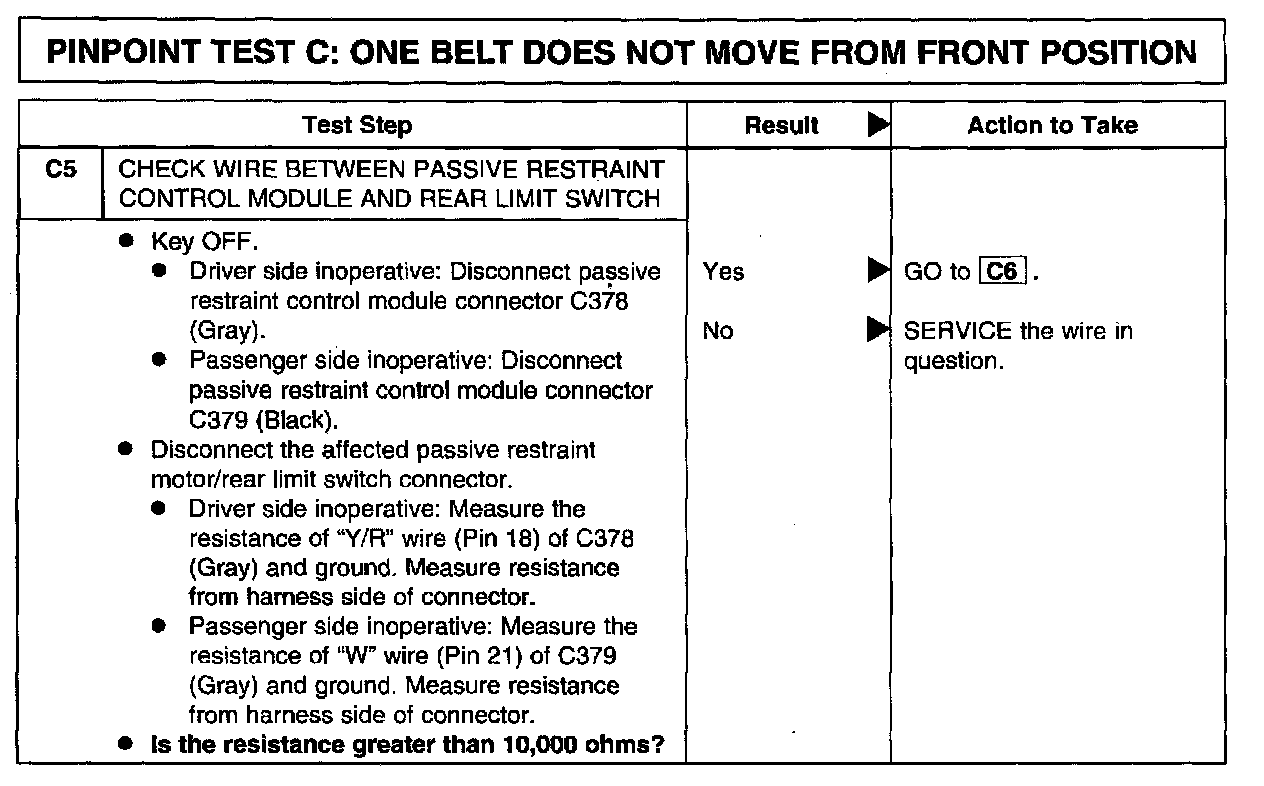

Fig. 7:

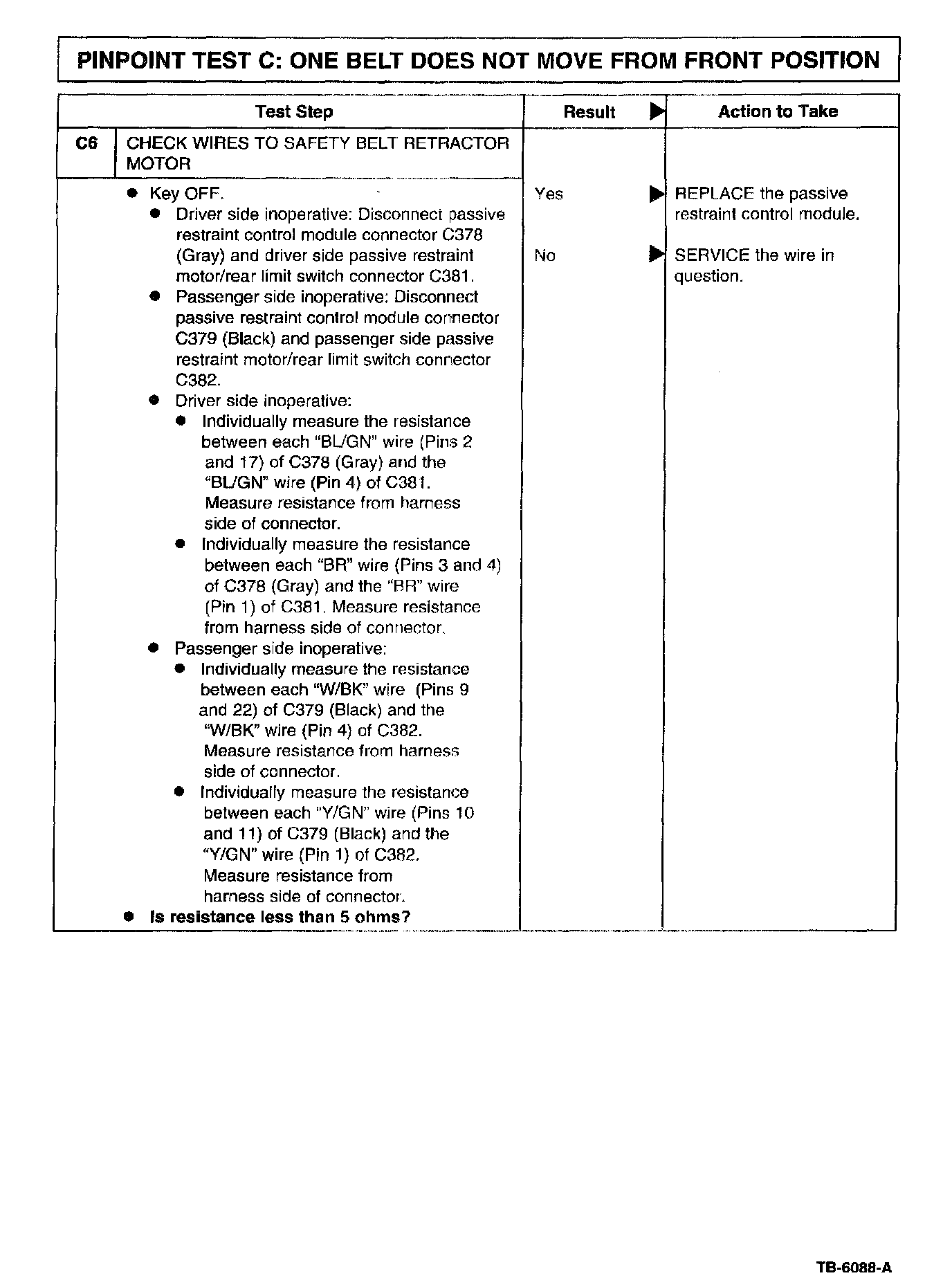

Fig. 8:



Fig. 9:
