Safety Belt Tongue Rotated on Belt

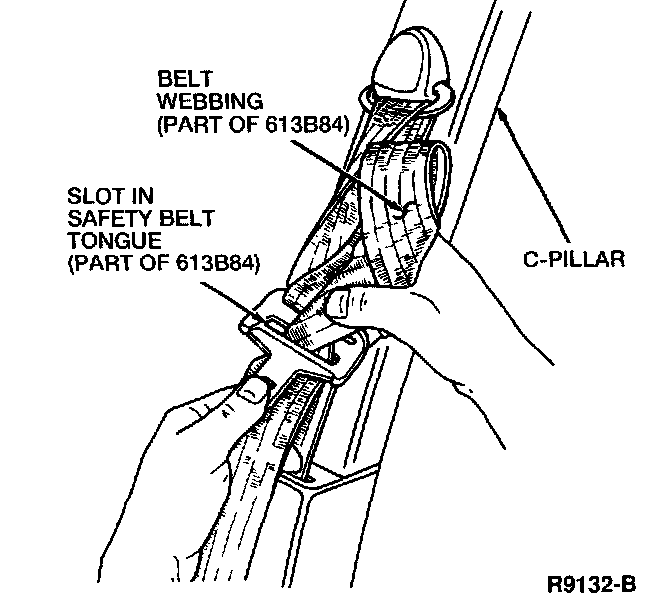

Safety Belt Tongue Rotated on Belt
1.
Rotate and fold the belt webbing over itself.
2.
Pull the belt webbing through the slot in the safety belt tongue.
3.
When completed, the safety belt tongue should face outward.
