Radiator Cooling Fan Motor Relay: Locations

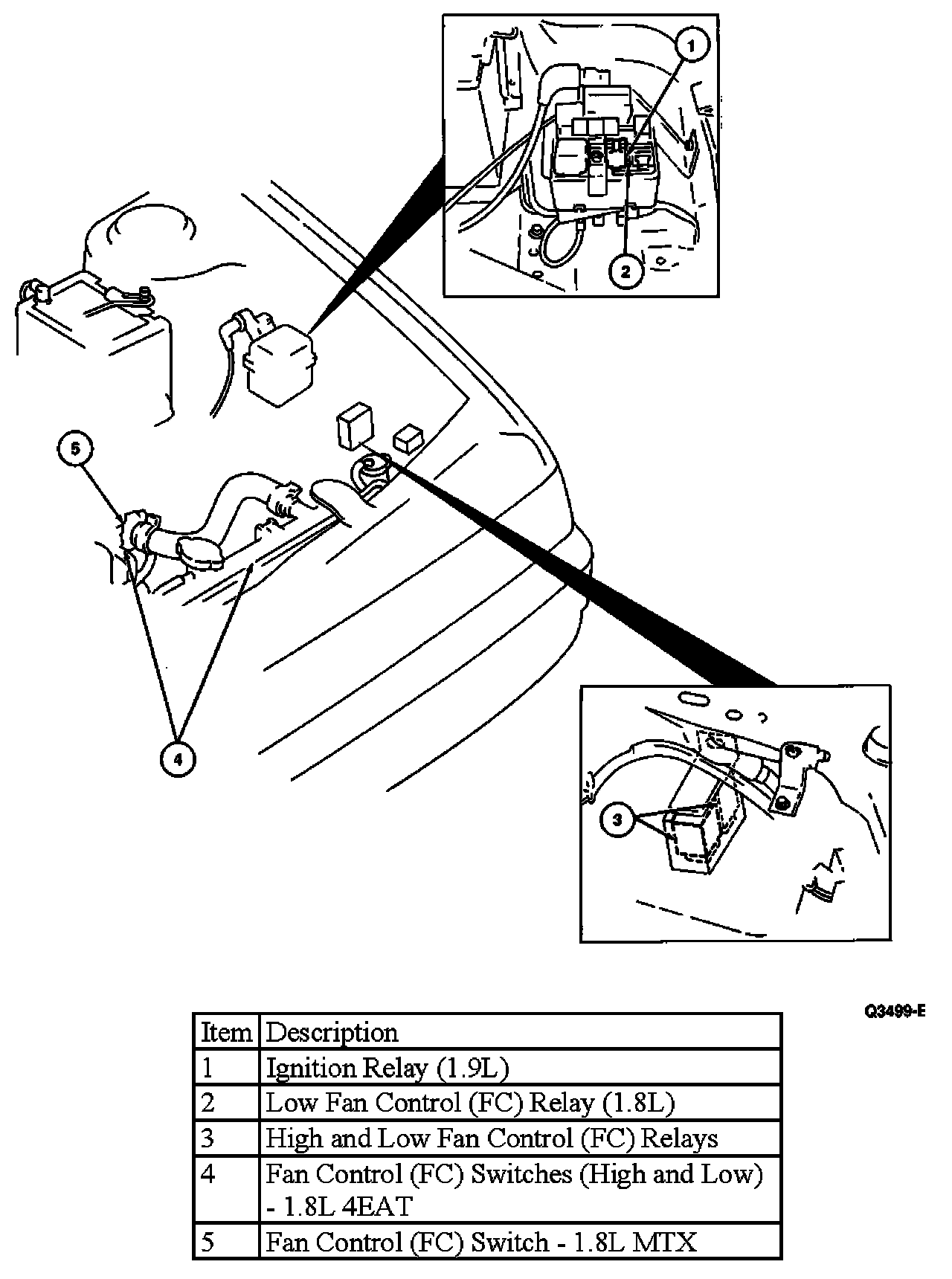

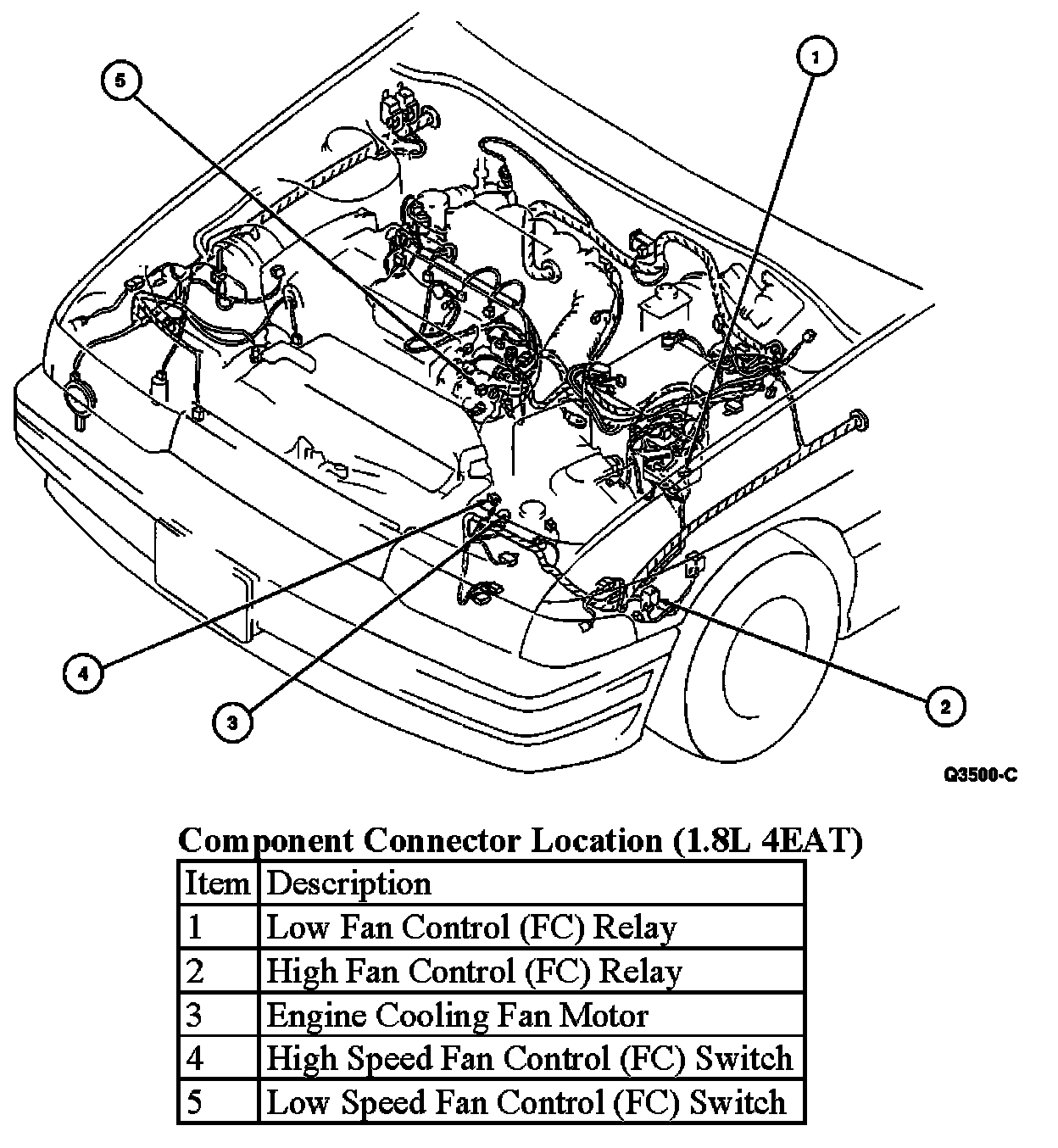

The Cooling Fan High Speed Relay is located in front of the LH fender apron, left of air cleaner assembly.

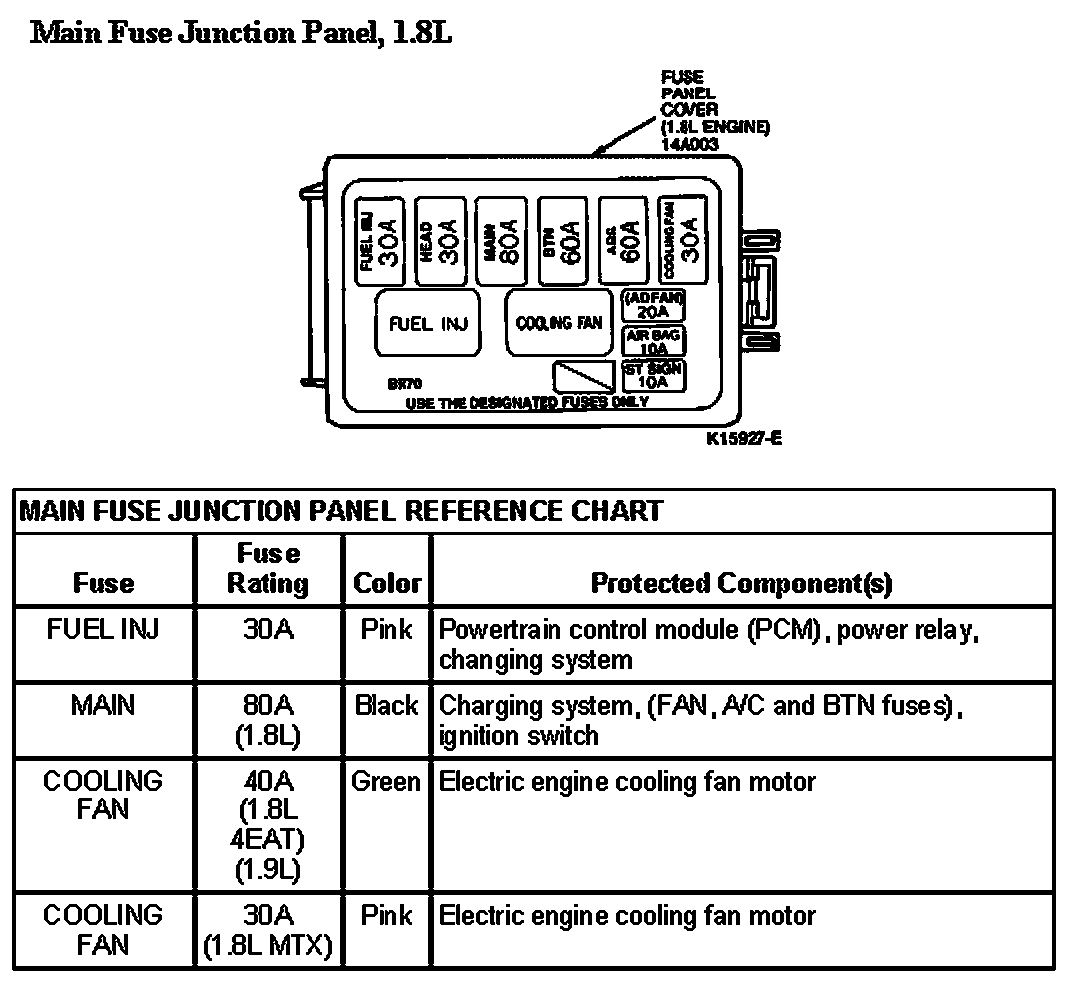

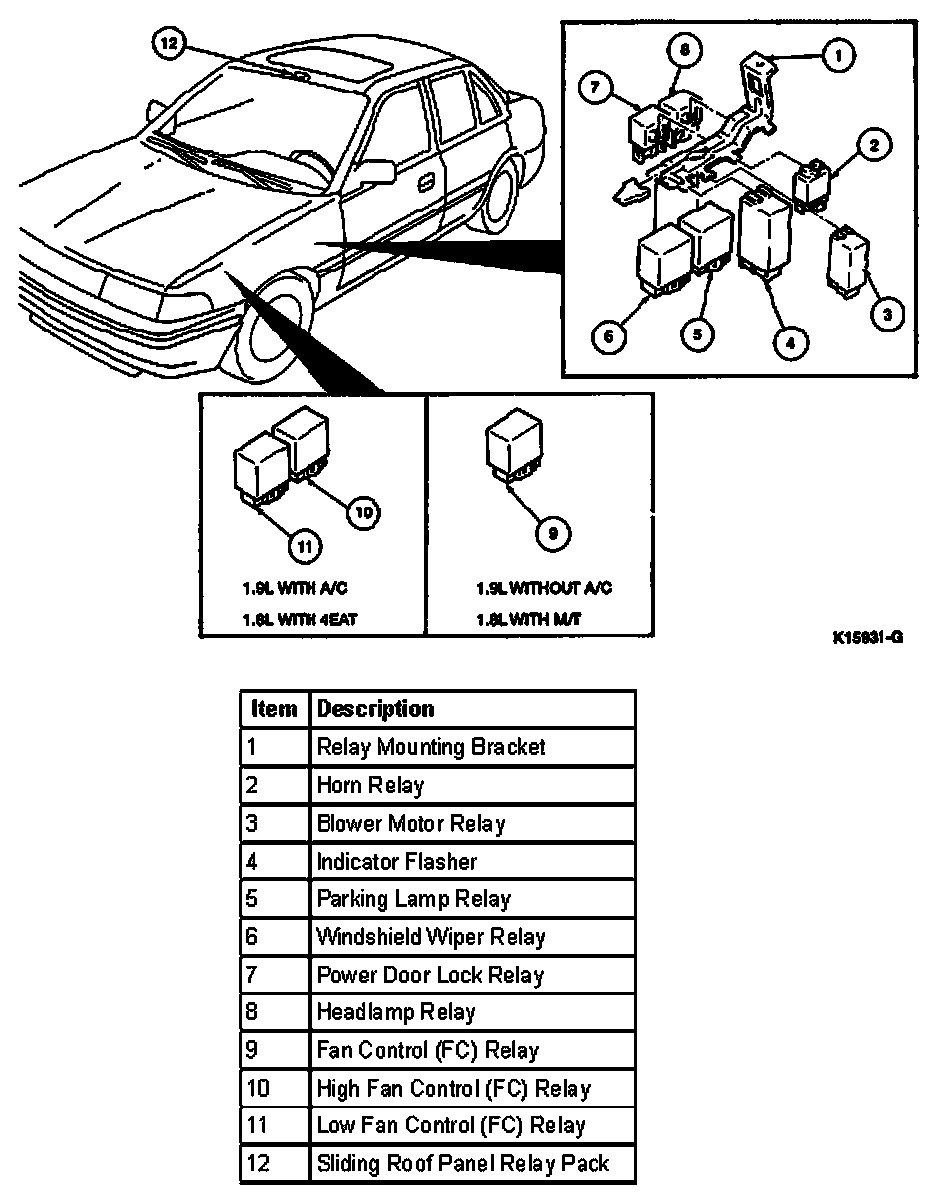

The Cooling Fan Relay is located on the top of LH front wheel well, in the engine compartment fuse box.
