Spark Plug: Adjustments

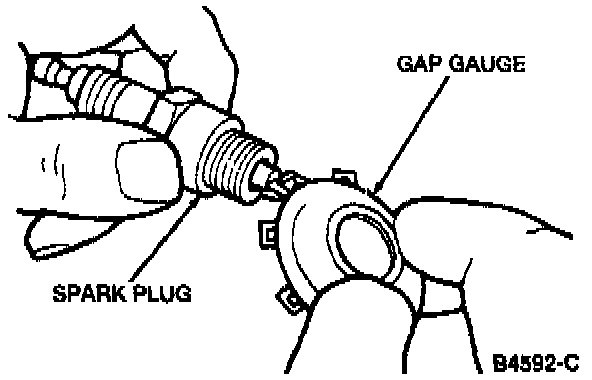

Gapping Spark Plug:
Check the electrode gaps. If necessary, adjust the gap clearance to
1.0-1.1 mm (0.039-0.043 inch)
