Vehicles Built On or After 12/14/95

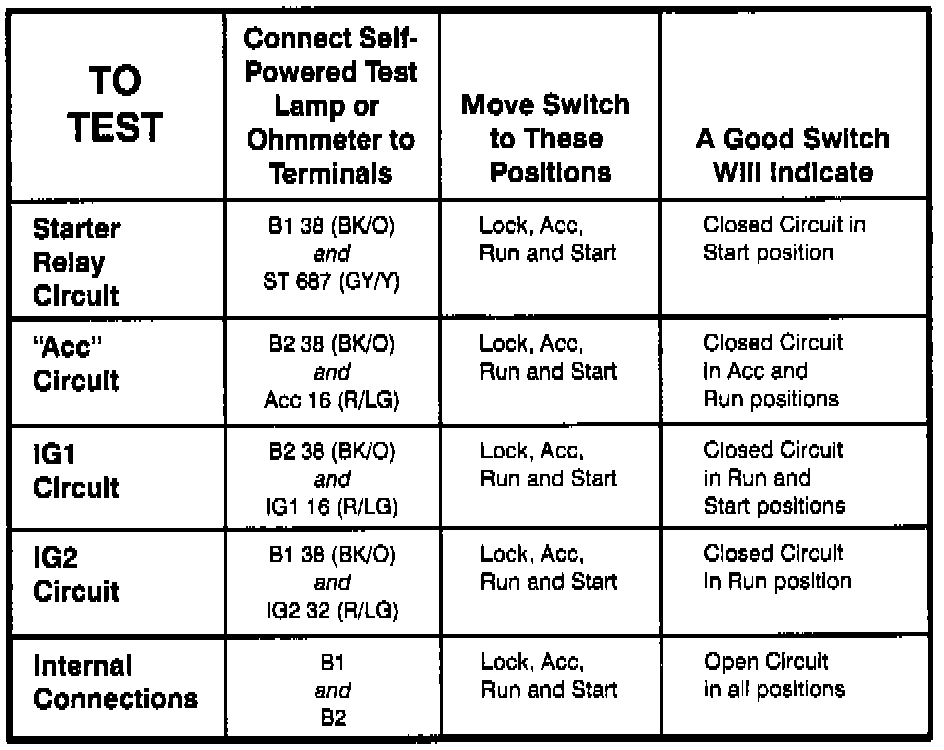

Ignition Switch - Component Testing Procedure (Vehicles Built After 12/14/95):

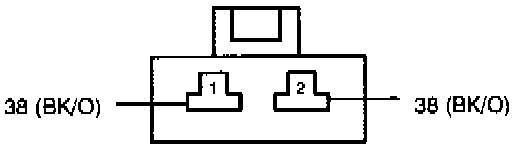

Ignition Switch - Terminal Locations (Vehicles Built After 12/14/95) (Part 1 Of 2):

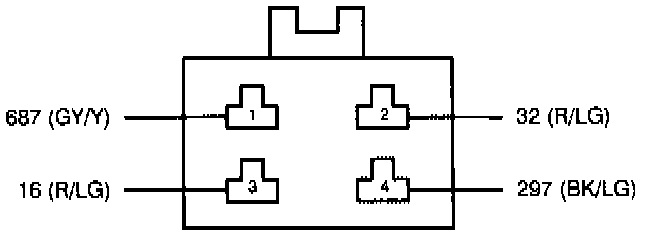

Ignition Switch - Terminal Locations (Vehicles Built After 12/14/95) (Part 2 Of 2):

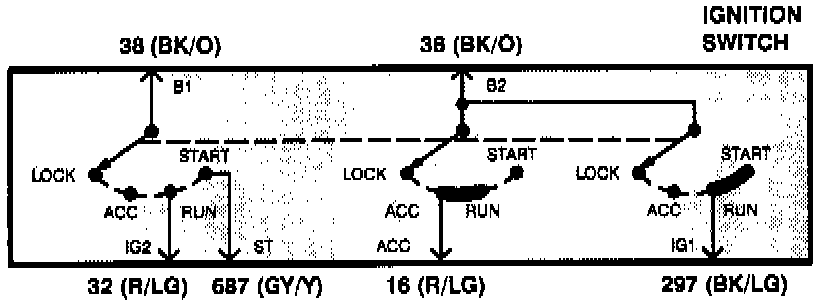

Ignition Switch - Schematic (Vehicles Built After 12/14/95):
