Mercury
>>
1996
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Ignition System
>>
Ignition Switch
>>
Diagrams
>>
Vehicles Built Before 12/14/95
Vehicles Built Before 12/14/95

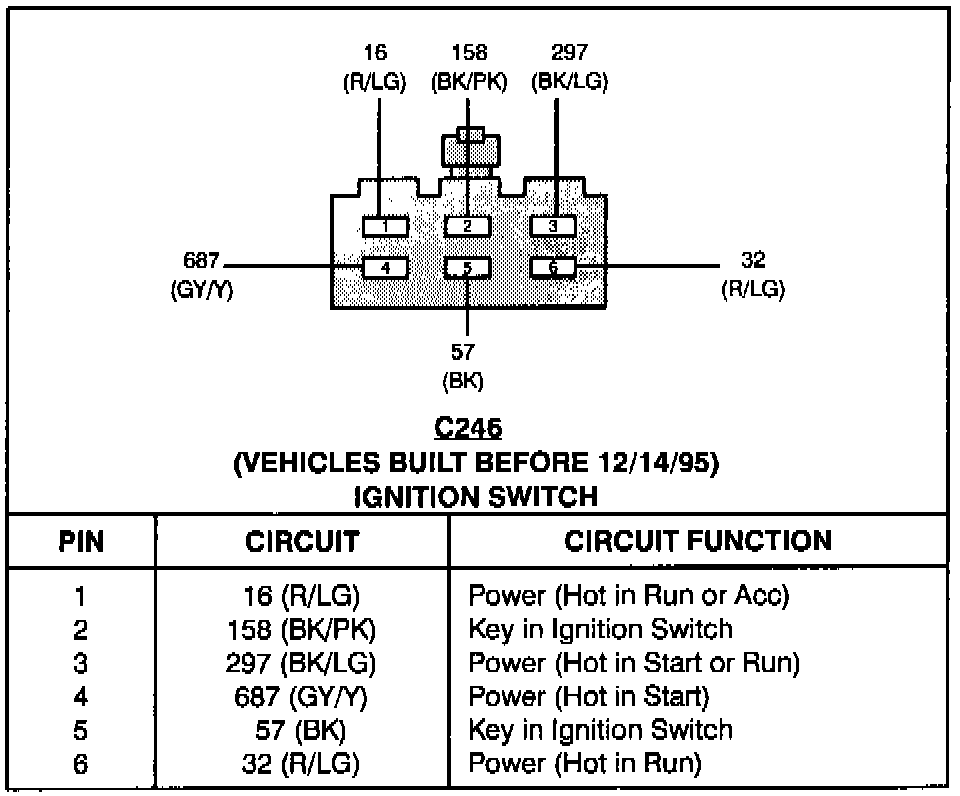

Ignition Switch (Vehicles Built Before 12/14/95):

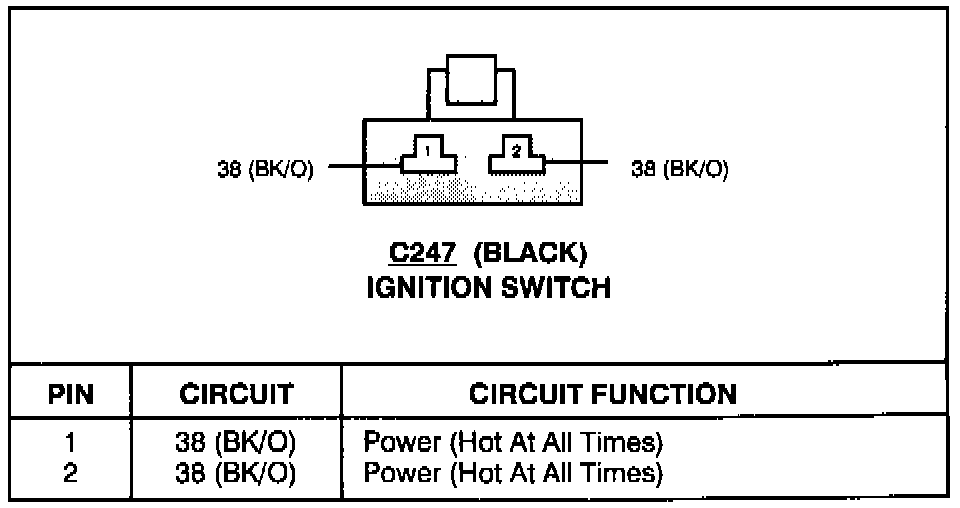

Ignition Switch:
