Throttle Position Sensor: Locations

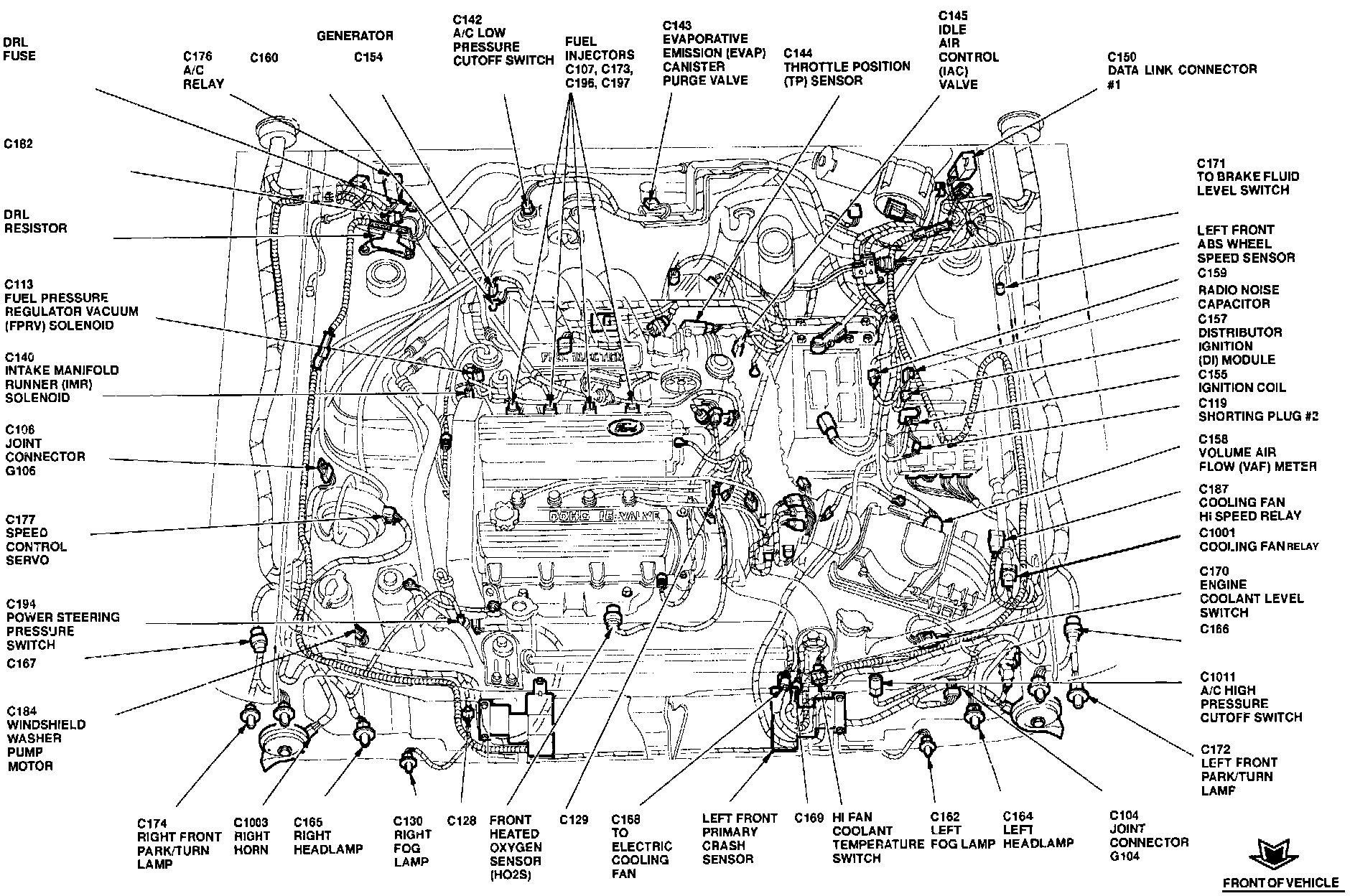

Engine View:
The Throttle Position Sensor is located on the top LH rear of the engine,
on throttle body.
