Resonator Chamber

Chamber:

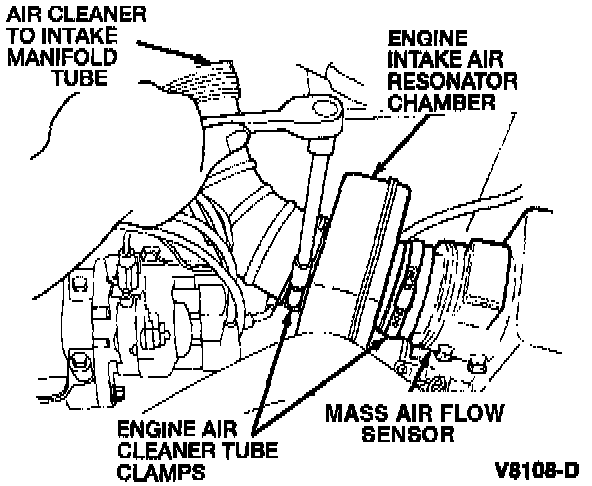

1. Loosen the engine air cleaner tube clamps and disconnect the engine intake air resonator chamber from the Mass Air Flow (MAF) sensor.

Chamber:

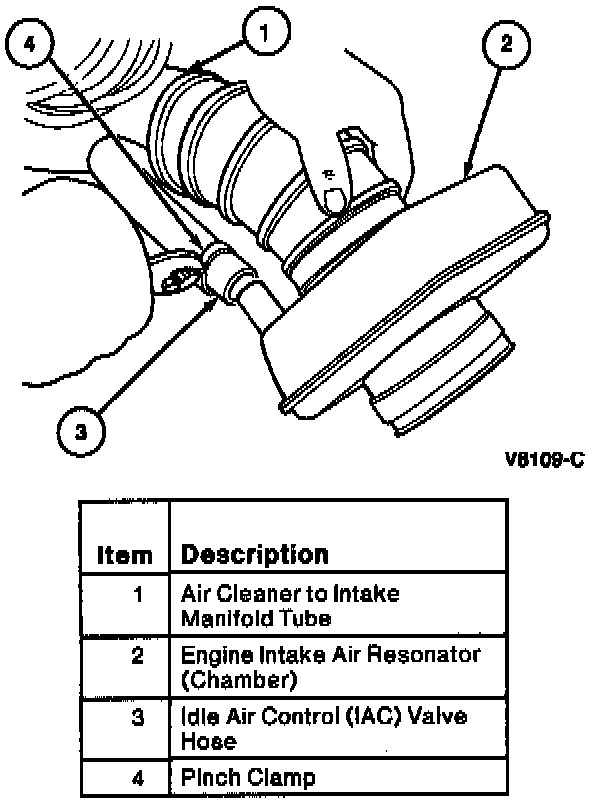

2. Loosen the pinch clamp and disconnect the idle air control valve hose from the engine intake air resonator chamber.
3. Remove the engine intake air resonator chamber from the air cleaner to intake manifold tube.
4. To install, reverse the removal procedure.
