Fuel Pressure Regulator: Description and Operation

Fuel Pressure Regulator:

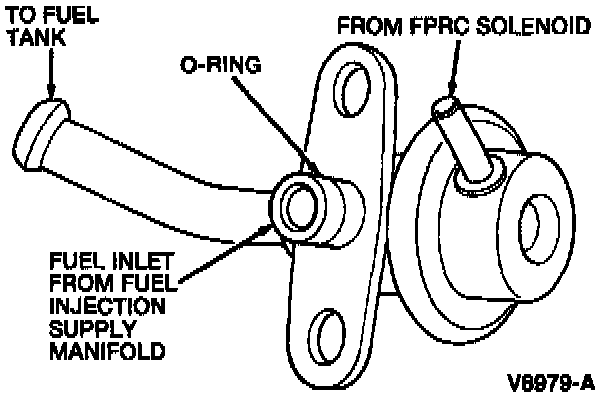

The fuel pressure regulator controls the amount of fuel pressure supplied to the fuel injectors. The amount of fuel pressure is controlled by a vacuum actuated diaphragm inside the fuel pressure regulator.
