Evaporative Check Valve: Service and Repair

1. Raise and support the vehicle.

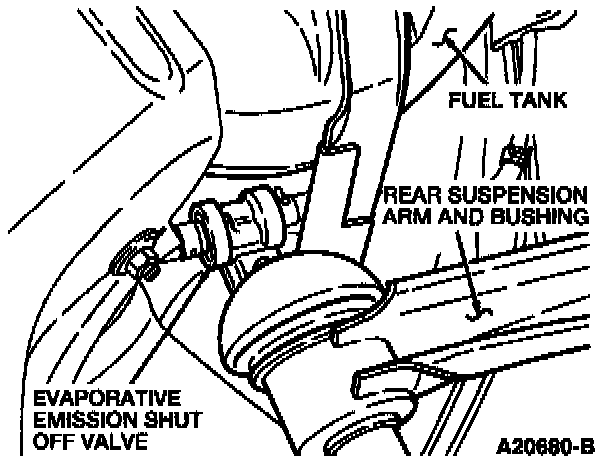

Shut Off Valve:

2. Disconnect the inlet and outlet hoses from the evaporative emission tube shut off valve.
3. Remove the bolt and remove the evaporative emission tube shut off valve.
4. To install, reverse the removal procedure.
