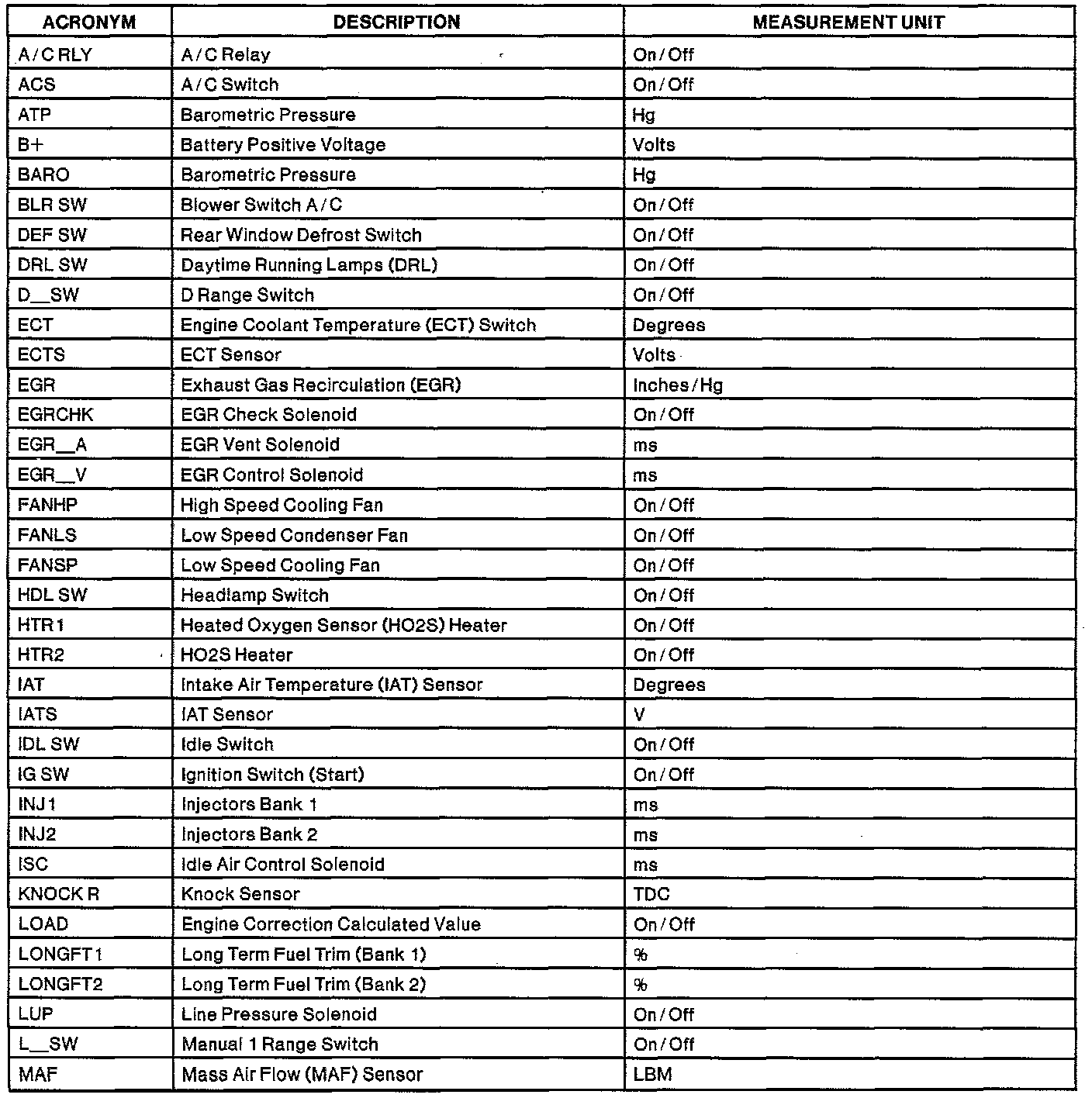

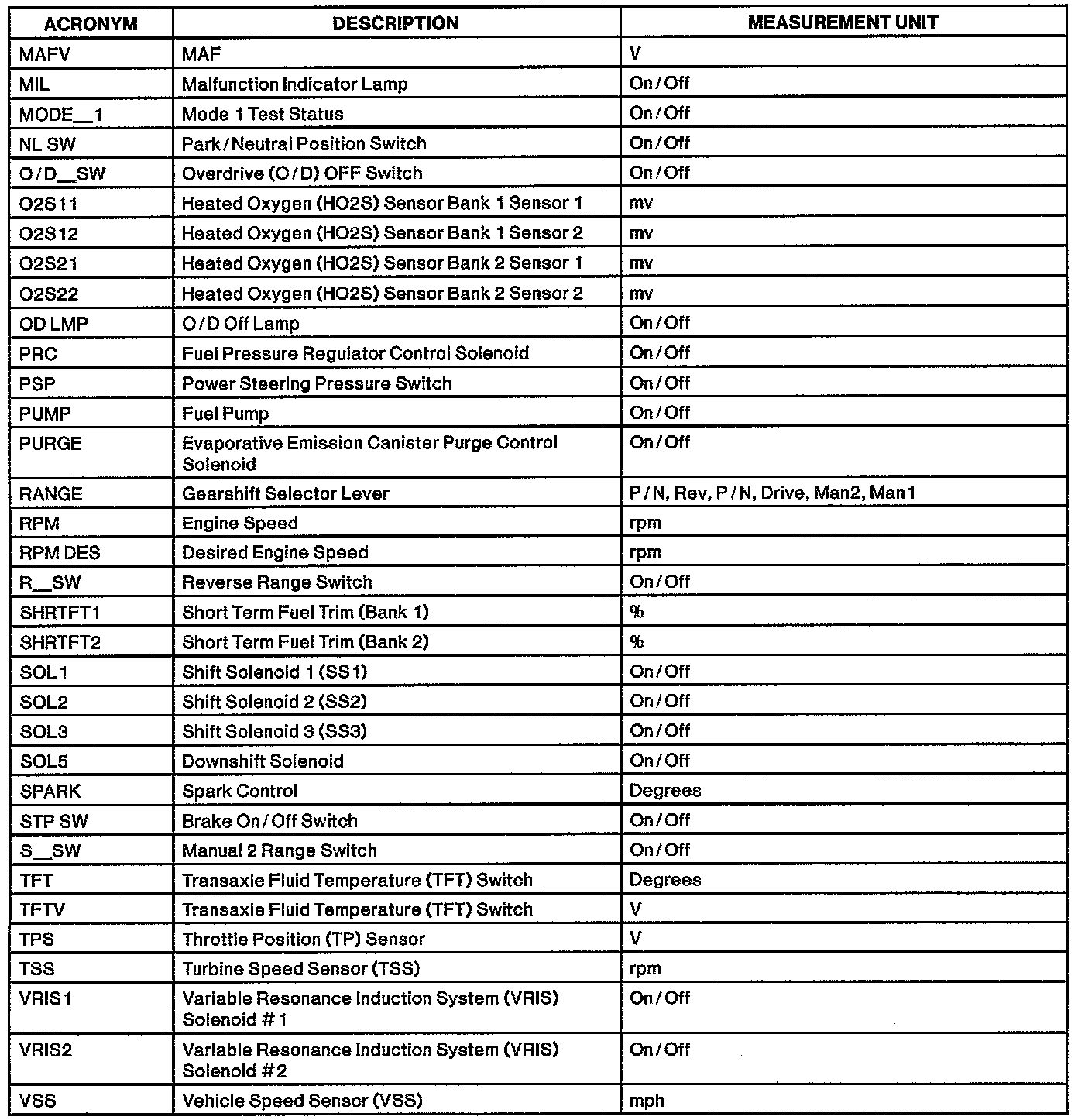

New Generation Star (NGS) PID List

The Parameter Identification (PID) list is taken from the New Generation STAR (NGS) scan tool PID display. When accessing these PIDs, the values will be continuously updated. These values are vehicle sensor inputs to the Powertrain Control Module (PCM) and PCM outputs. The output may not be the actual condition of the output signal line due to an open or shorted signal line.
