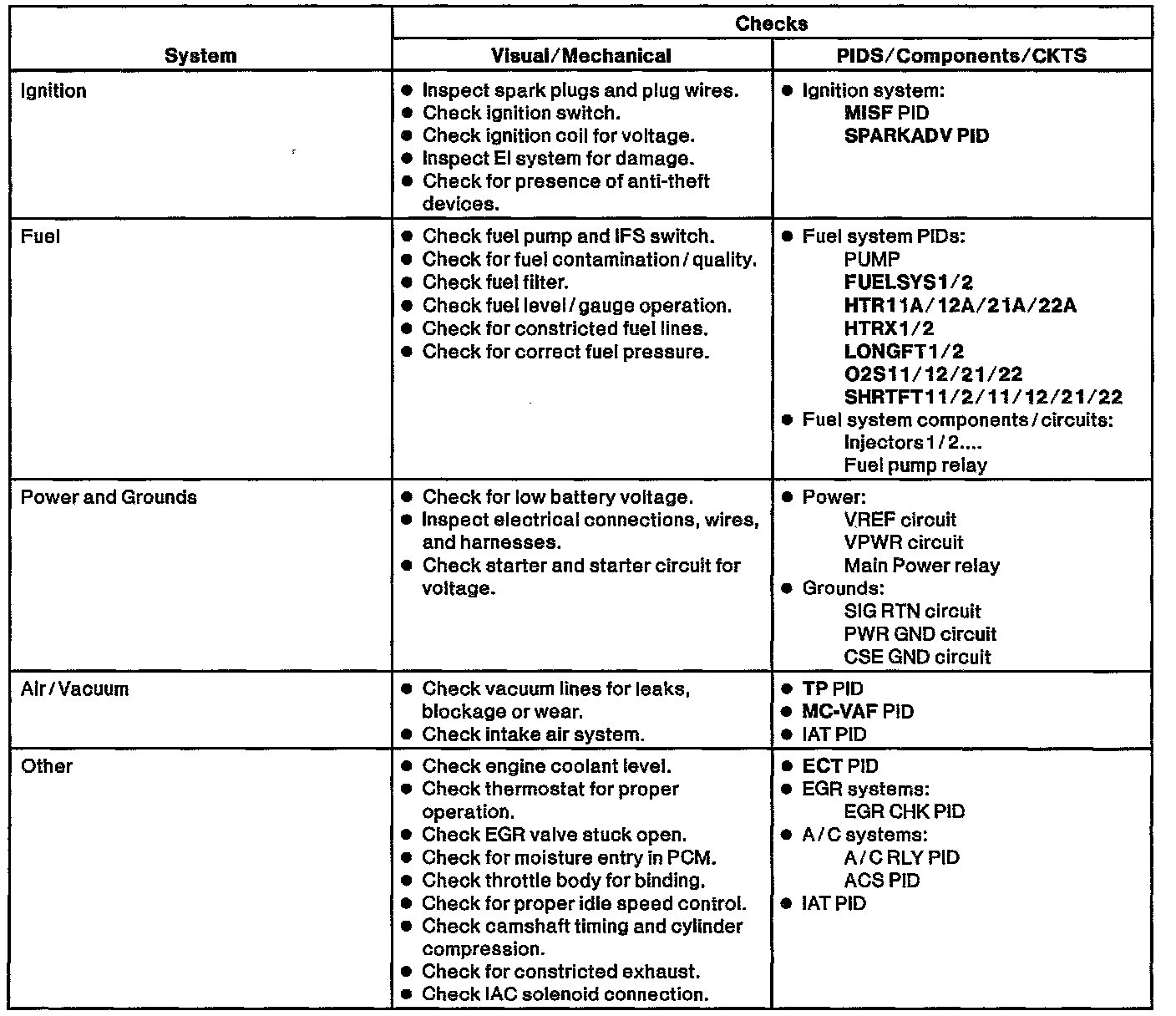

Chart 2 -- Stall After Start, Hard Start/Long Crank
Chart 2 -- Stall After Start, Hard Start/Long Crank
NOTE:
Generic Parameter Identifications
(PIDs)
are in bold.
Stall After Start Hard Start/ Long Crank:
