Oxygen Sensor Monitor

NOTE: This procedure is written assuming the use of a New Generation STAR (NGS) Tester. If a generic OBD II scan tool is used, it will be necessary to follow the instructions supplied by the manufacturer of the scan tool.

Oxygen Sensor Monitoring Test:

DESCRIPTION

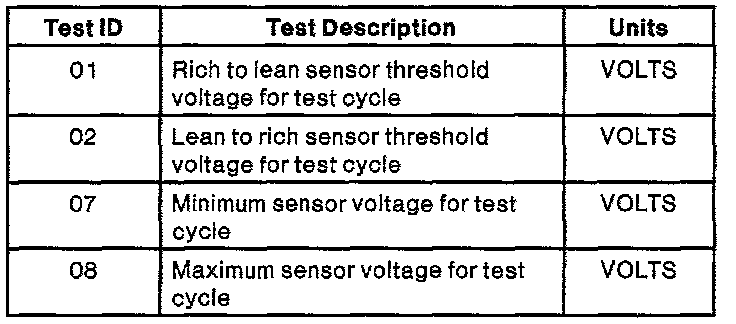

The Oxygen Sensor (O2S) Monitoring Test Results allows access to the on-board 02S sensor fault limits and actual values during the OBD II Drive Cycle. The test cycle has specific operating conditions that must be met (engine temperature, load, etc.) for completion. This information helps to determine the efficiency of the exhaust catalyst. Listed below are the tests and test identification numbers that are available.

RETRIEVING OXYGEN SENSOR MONITORING TEST RESULTS WITH NEW GENERATION STAR TESTER
- Perform the necessary vehicle preparation and visual inspection.

- Connect scan tool to the OBD II Data Link Connector (DLC).

- Select VEHICLE & ENGINE SELECTION menu (OPTIONAL).

- Select SELECT NEW VEHICLE YEAR & MODEL.

- Select year, engine, model with the appropriate qualifier, if needed (i.e., transmission type, 49 State, California) (OPTIONAL).

- Follow operating instructions from the menu (i.e., turn key ON).

- Select GENERIC OBD II FUNCTIONS.

- Press CONT if all the OBD II monitors are not complete.

- Select OXYGEN SENSOR TESTS.

- Select the appropriate oxygen sensor test.
