Heated Oxygen Sensor (HO2S) Locations

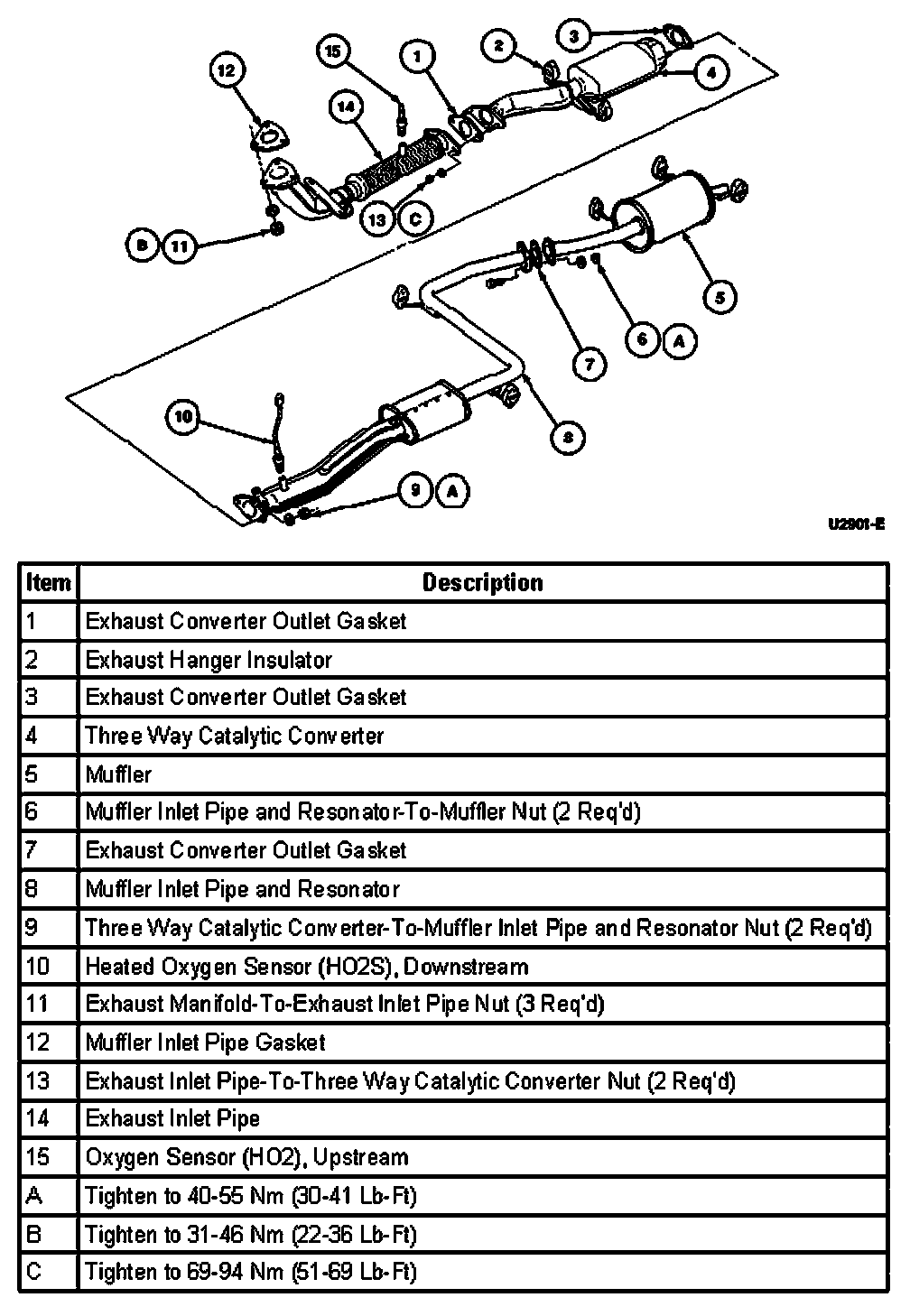

The upstream heated oxygen sensor (HO2S) is located in the exhaust inlet pipe.

The downstream heated oxygen sensor (HO2S) is located in the muffler inlet pipe and resonator.
