Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Connector Views >> OBD II Data Link Connector

OBD II Data Link Connector

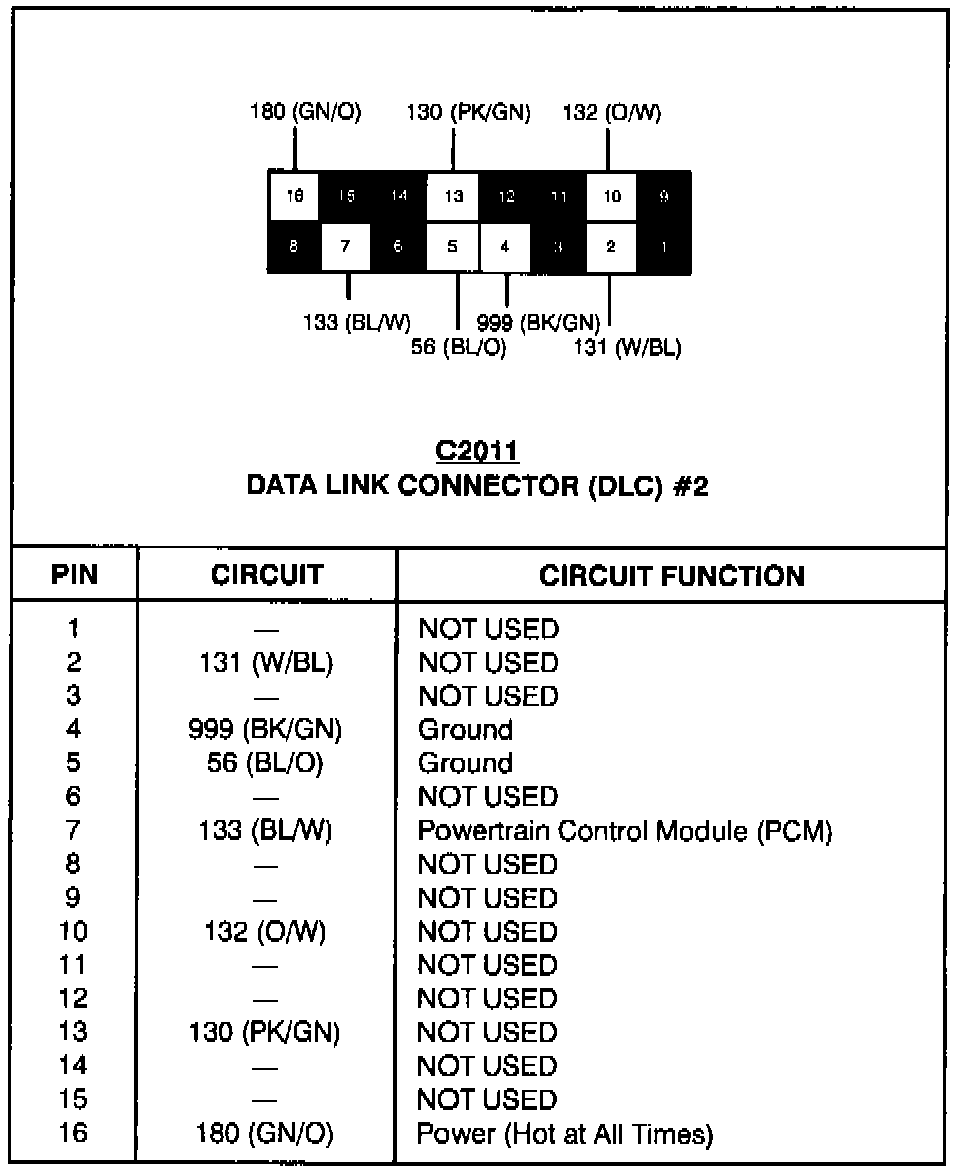

Data Link Connector #2:
