Tachometer Inoperative

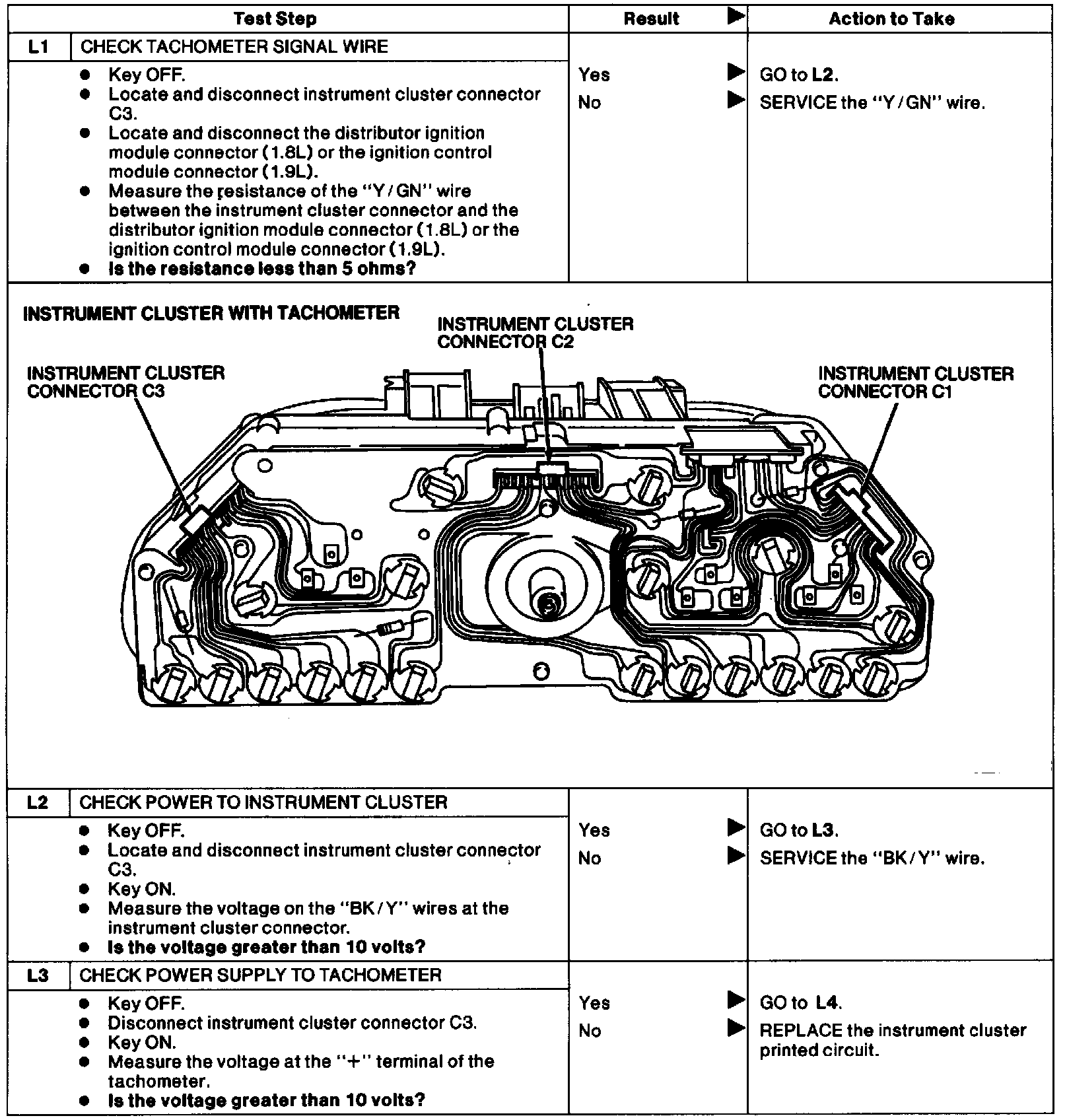

Test L: Tachometer Inoperative.:





Test L1-L3

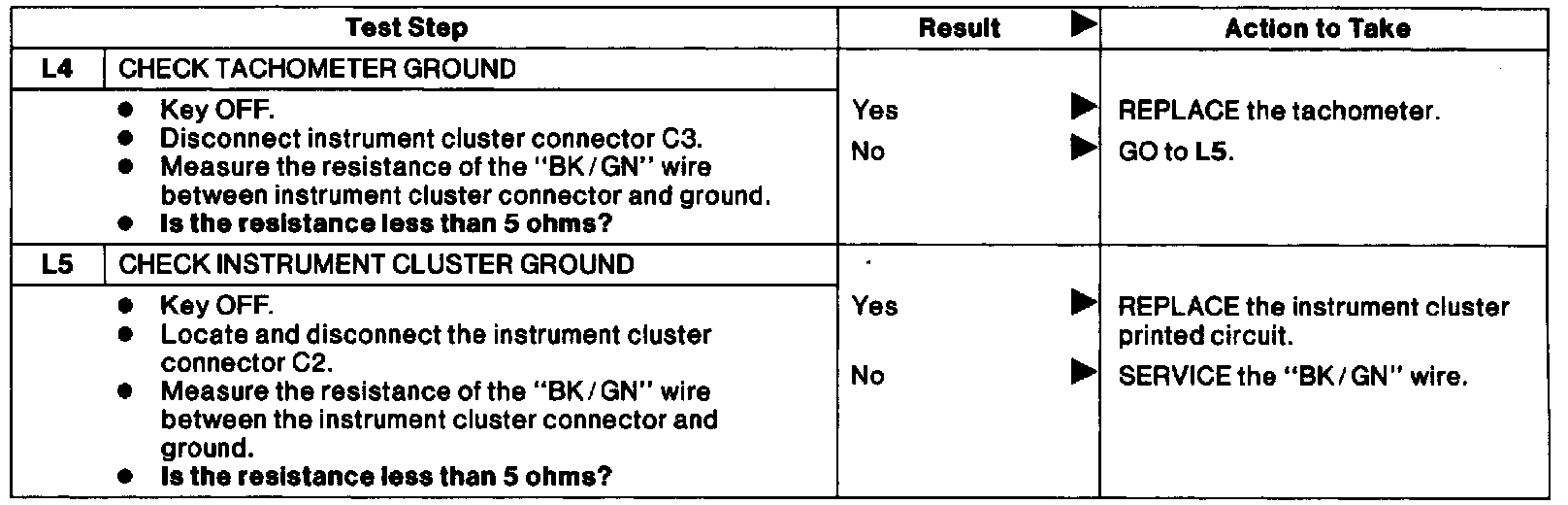

Test L: Tachometer Inoperative.:





Test L4-L5
