Speedometer Inoperative

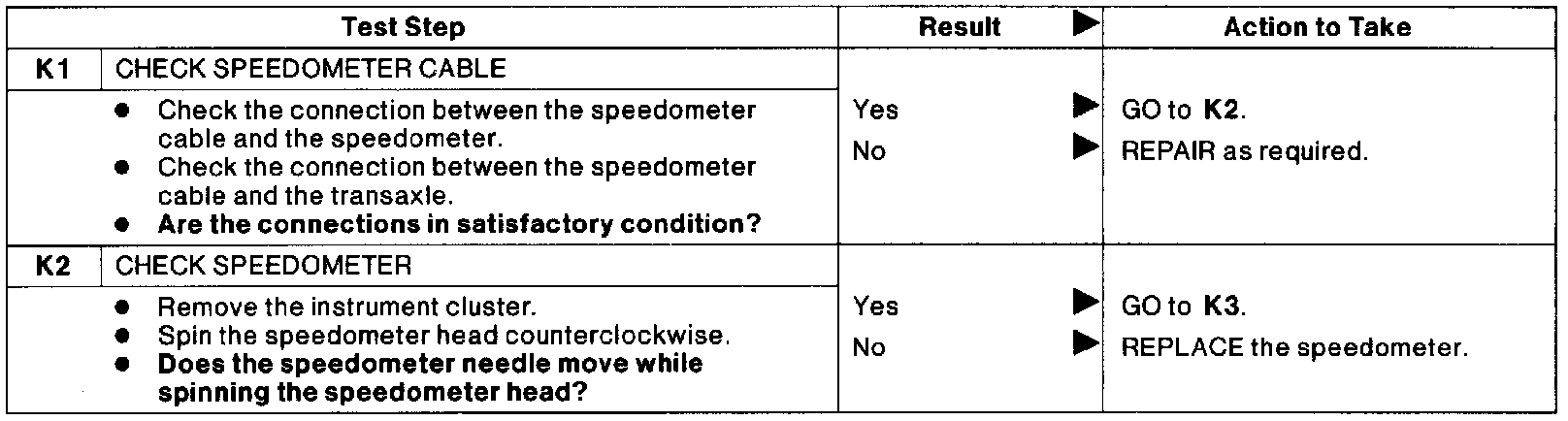

Test K: Speedometer Reads Inaccurately.:





Test K1-K2

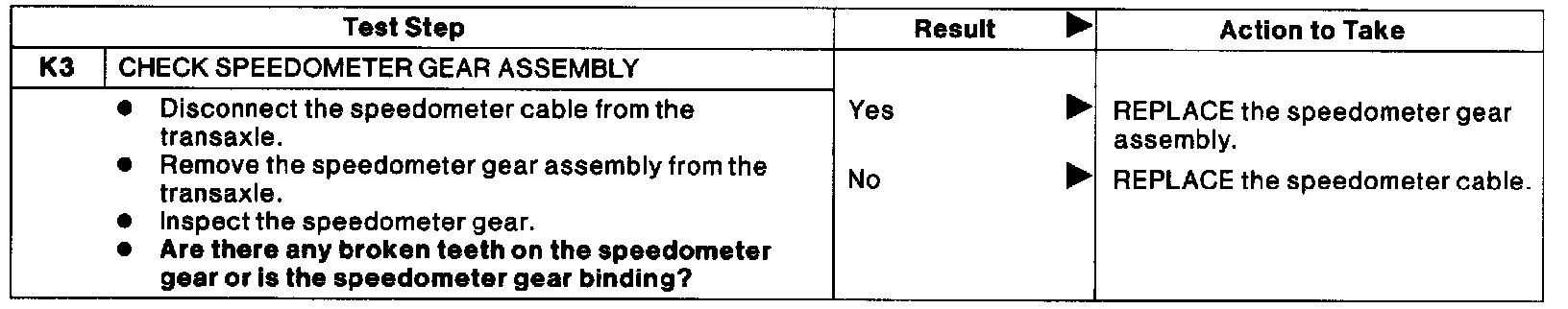

Test K: Speedometer Reads Inaccurately.:





Test K3
