Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Fuel Gauge >> Testing and Inspection >> Pinpoint Tests >> Fuel Gauge Always Reads Empty

Fuel Gauge Always Reads Empty

Test B: Fuel Level Always Reads Empty.:

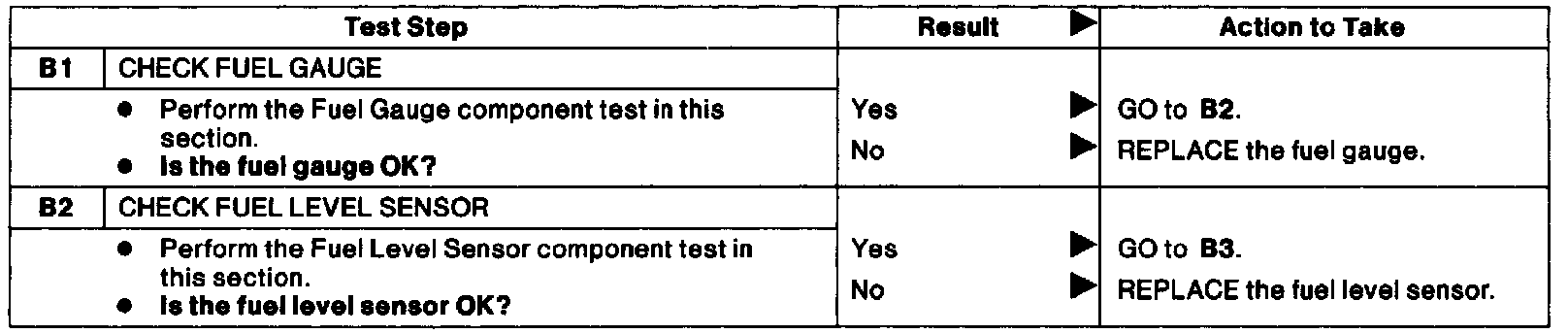

Test B1-B2

Test B: Fuel Level Always Reads Empty.:

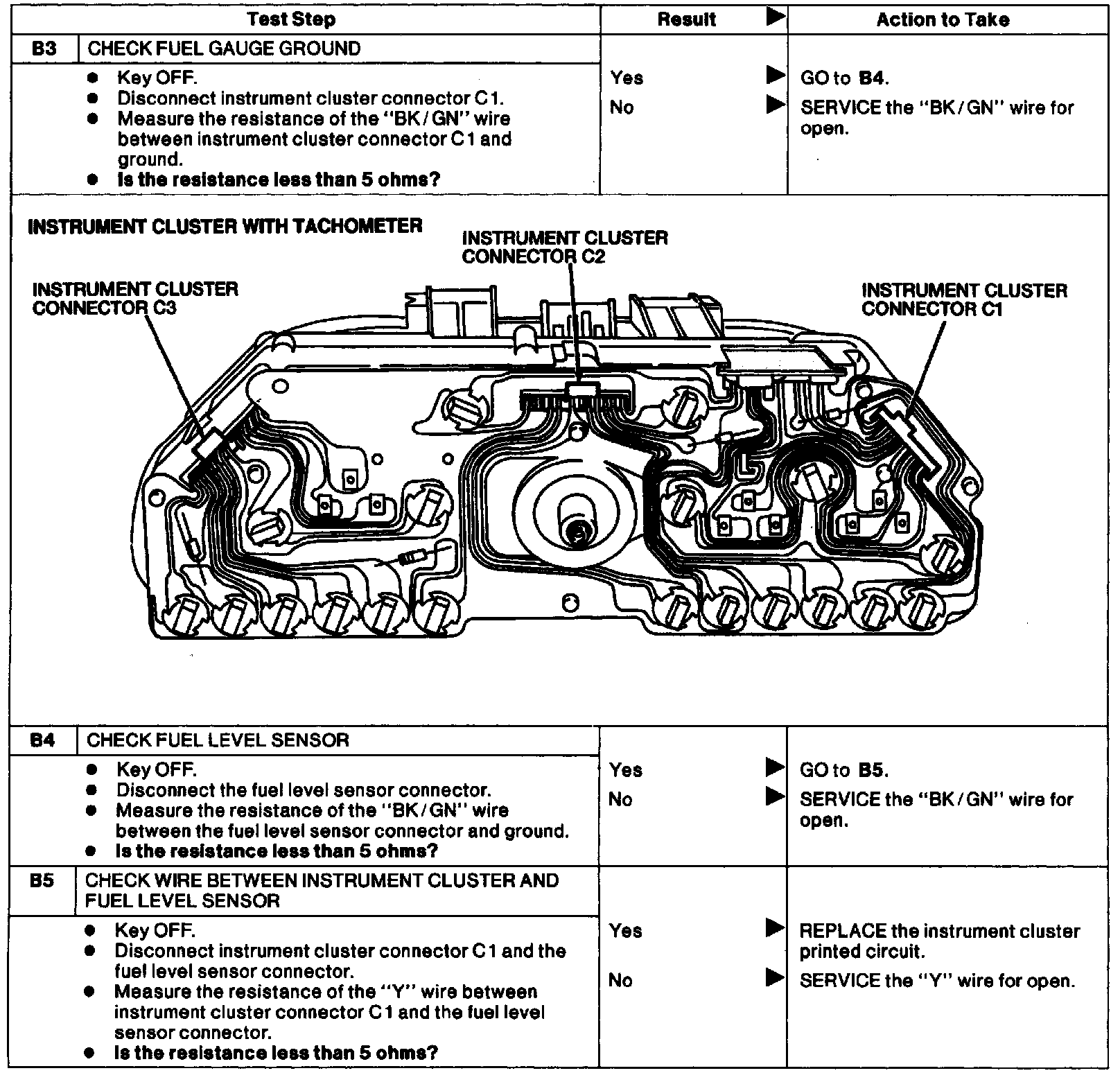

Test B3-B5
