Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Brake Warning Indicator >> Testing and Inspection

Brake Warning Indicator: Testing and Inspection

Test M: Brake System Warning Lamp Inoperative:

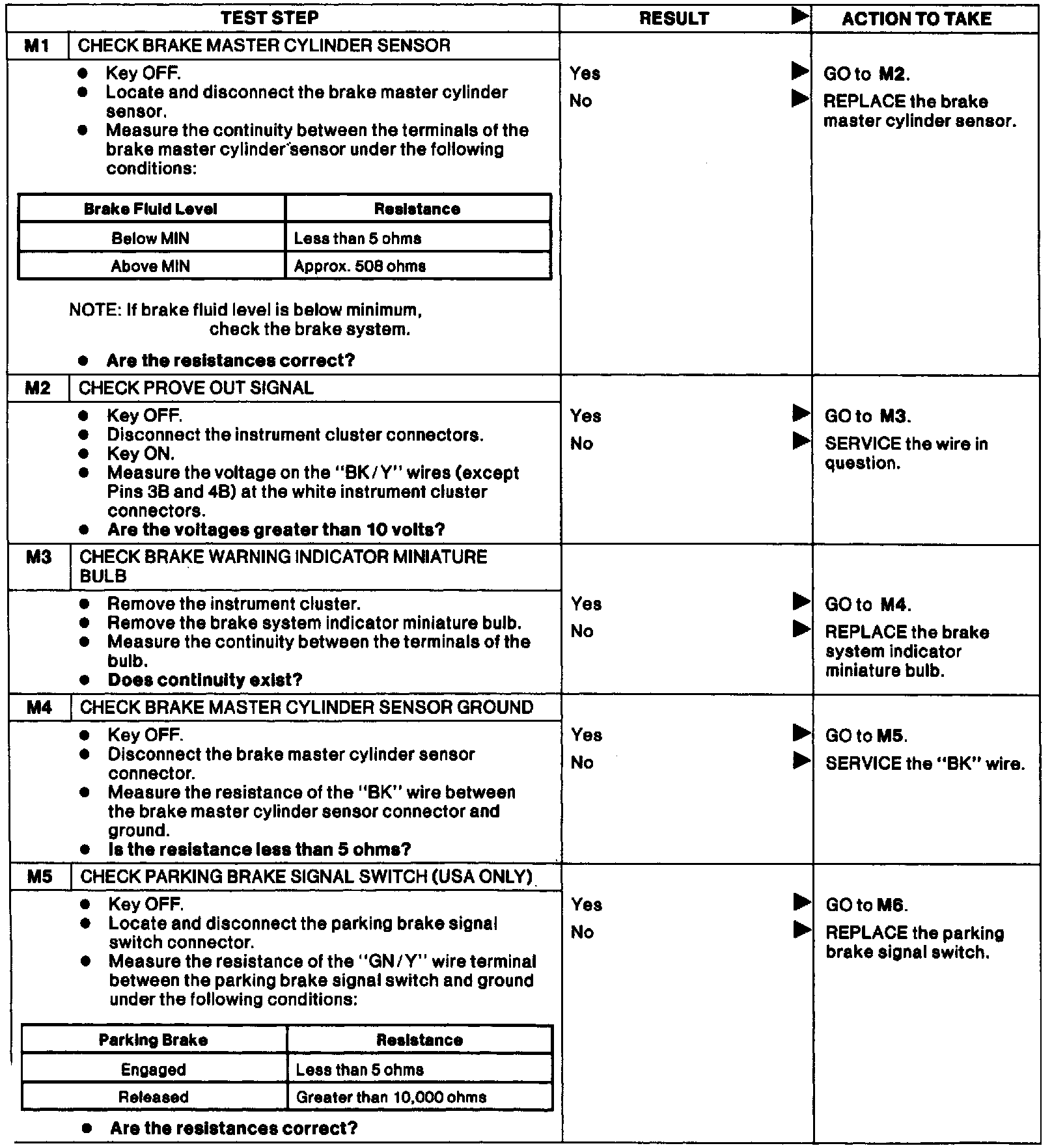

Test M1-M5

Test M: Brake Warning Lamp Inoperative:

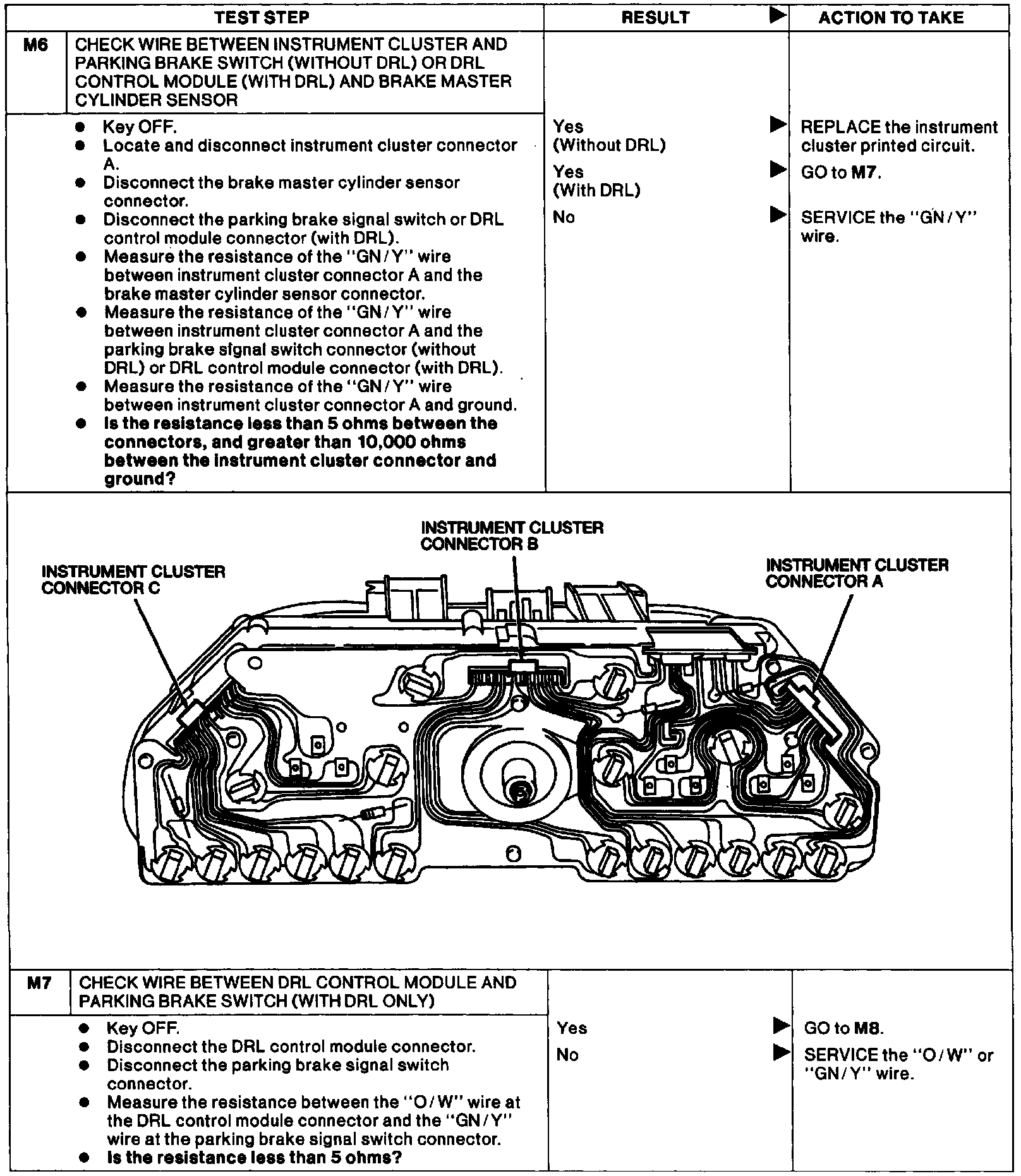

Test M6-M7

Test M: Brake System Warning Lamp Inoperative:

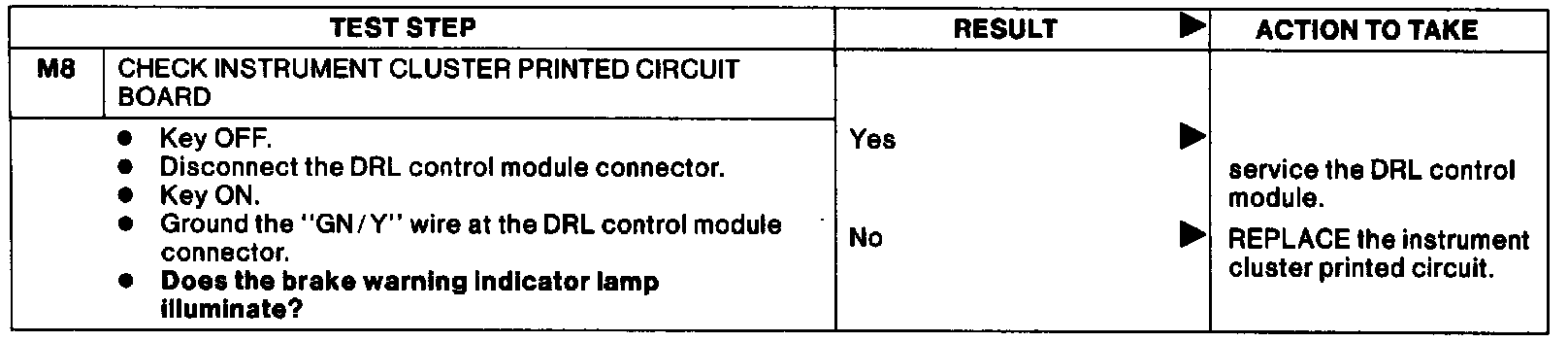

Test M8
