Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Pressure Warning Lamp/Indicator >> Testing and Inspection

Oil Pressure Warning Lamp/Indicator: Testing and Inspection

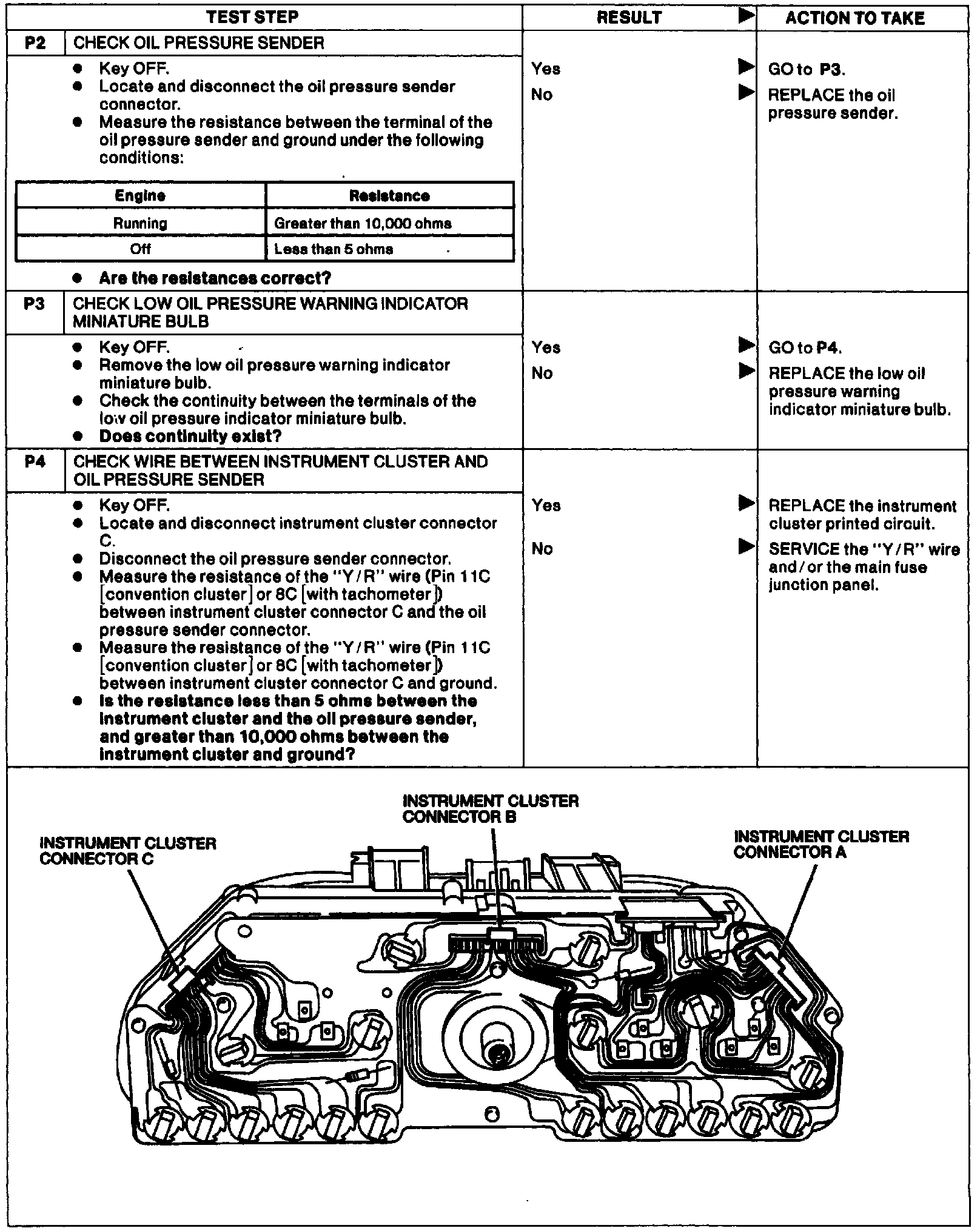

Test P: Low Oil Pressure Warning Lamp Inoperative.:





Test P1

Test P: Low Oil Pressure Warning Lamp Inoperative.:





Test P2-P4
