E - Fan Operates, No High Speed
E - Fan Operates, No High Speed
Test E: Cooling Fan Runs, No High Speed.:

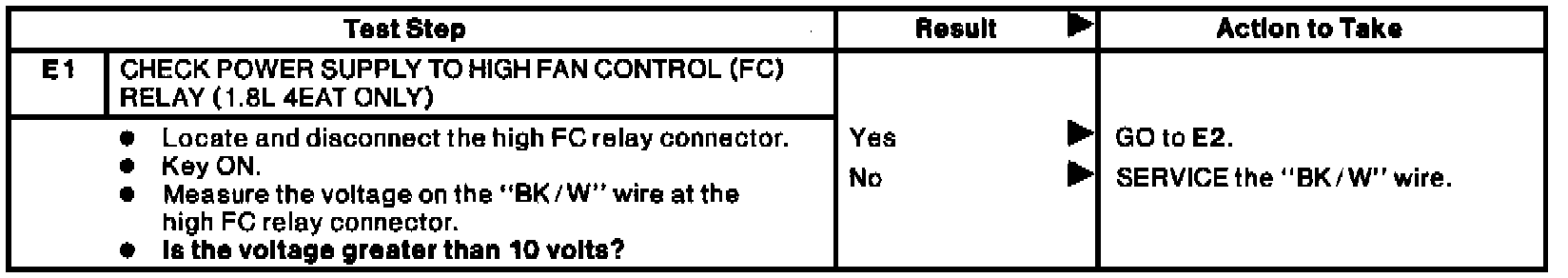

Test E1
Test E: Cooling Fan Runs, No High Speed.:

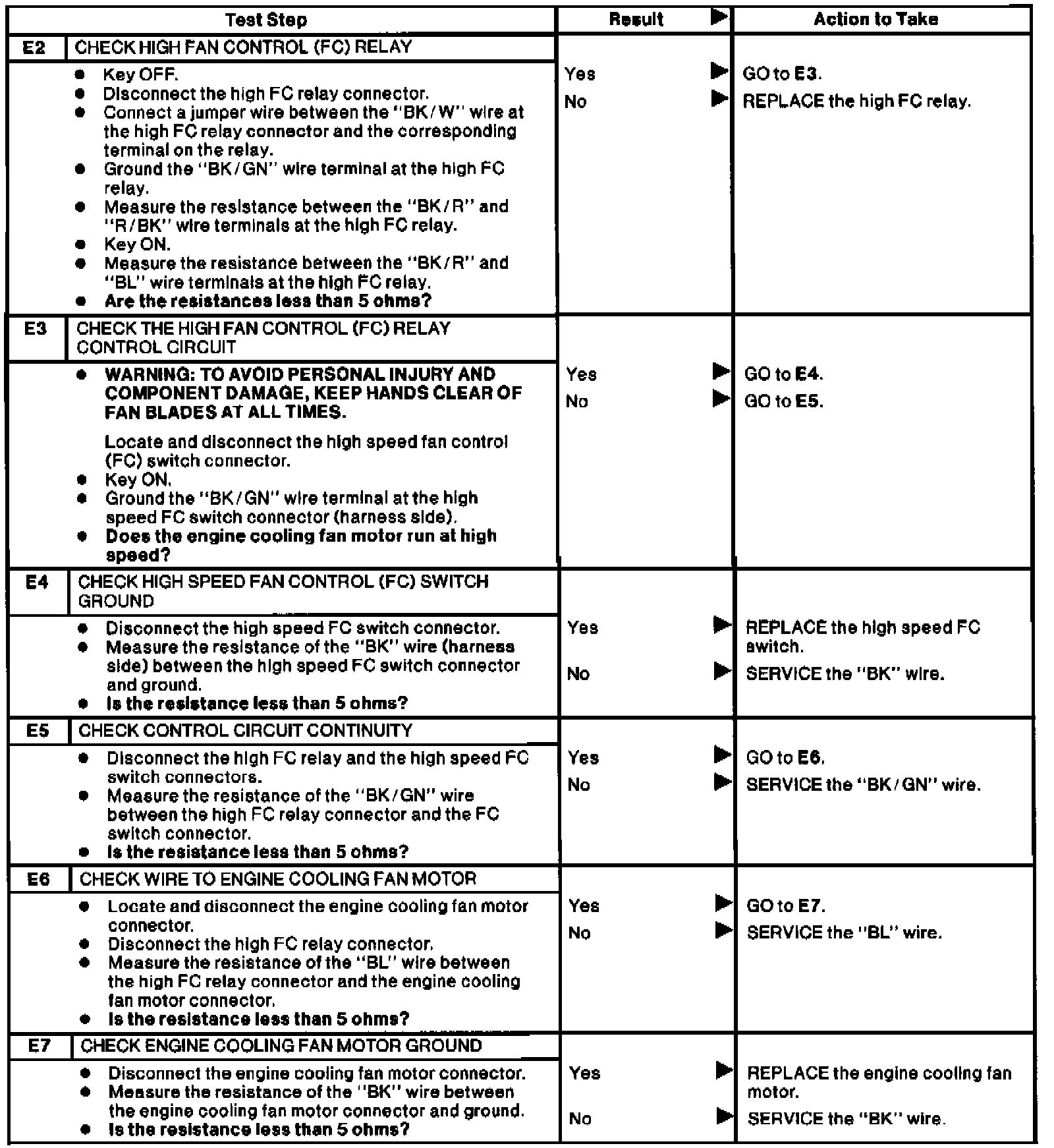

Test E2-E7
