Engine Controls

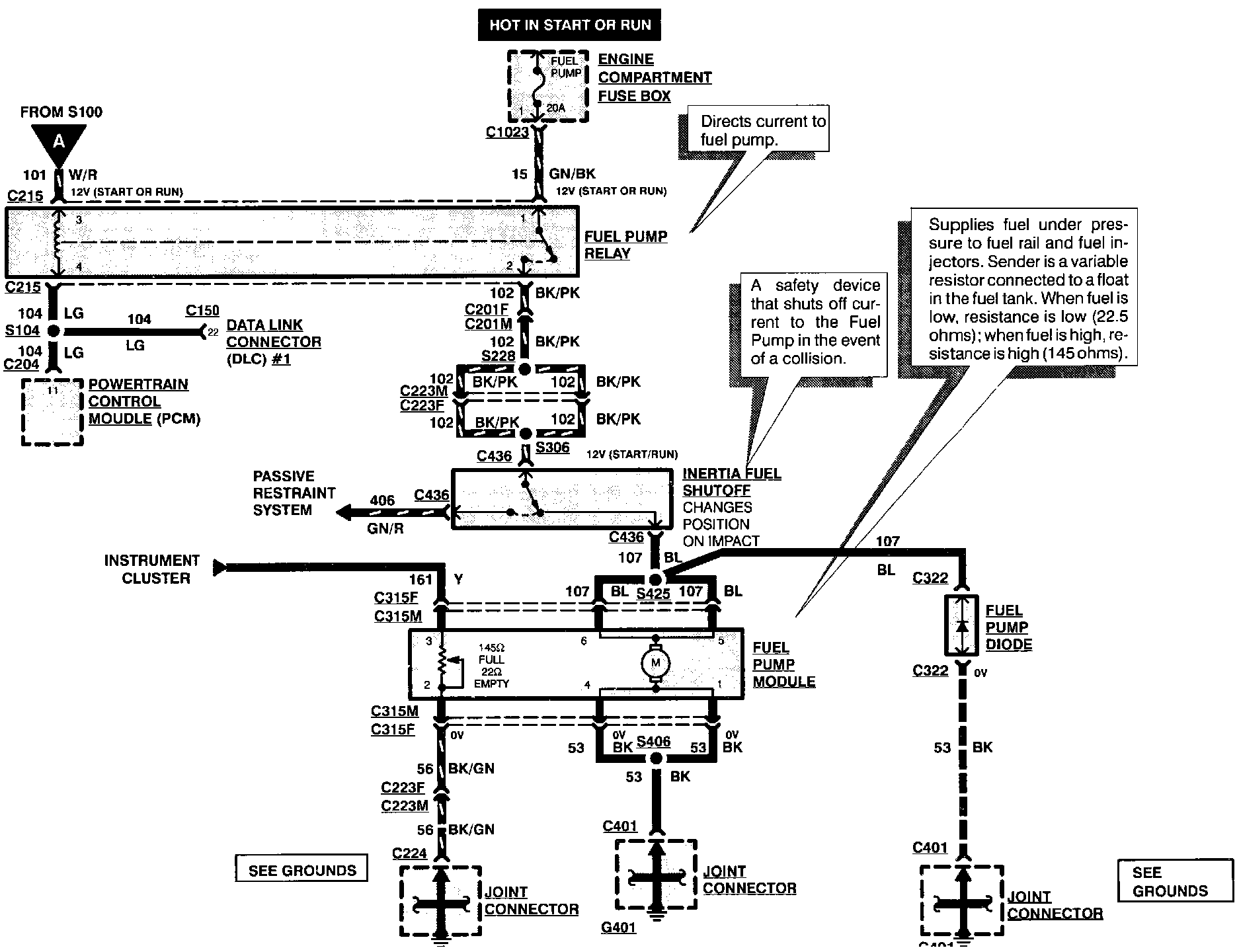

Engine Controls (Part 1 Of 7):

FUEL PUMP DIODE
FUEL PUMP MODULE
FUEL PUMP RELAY
INERTIA FUEL SHUTOFF

Engine Controls (Part 2 Of 7):

ENGINE COOLANT TEMPERATURE SENSOR
MALFUNCTION INDICATOR LAMP
THROTTLE POSITION SENSOR
VOLUME AIR FLOW METER

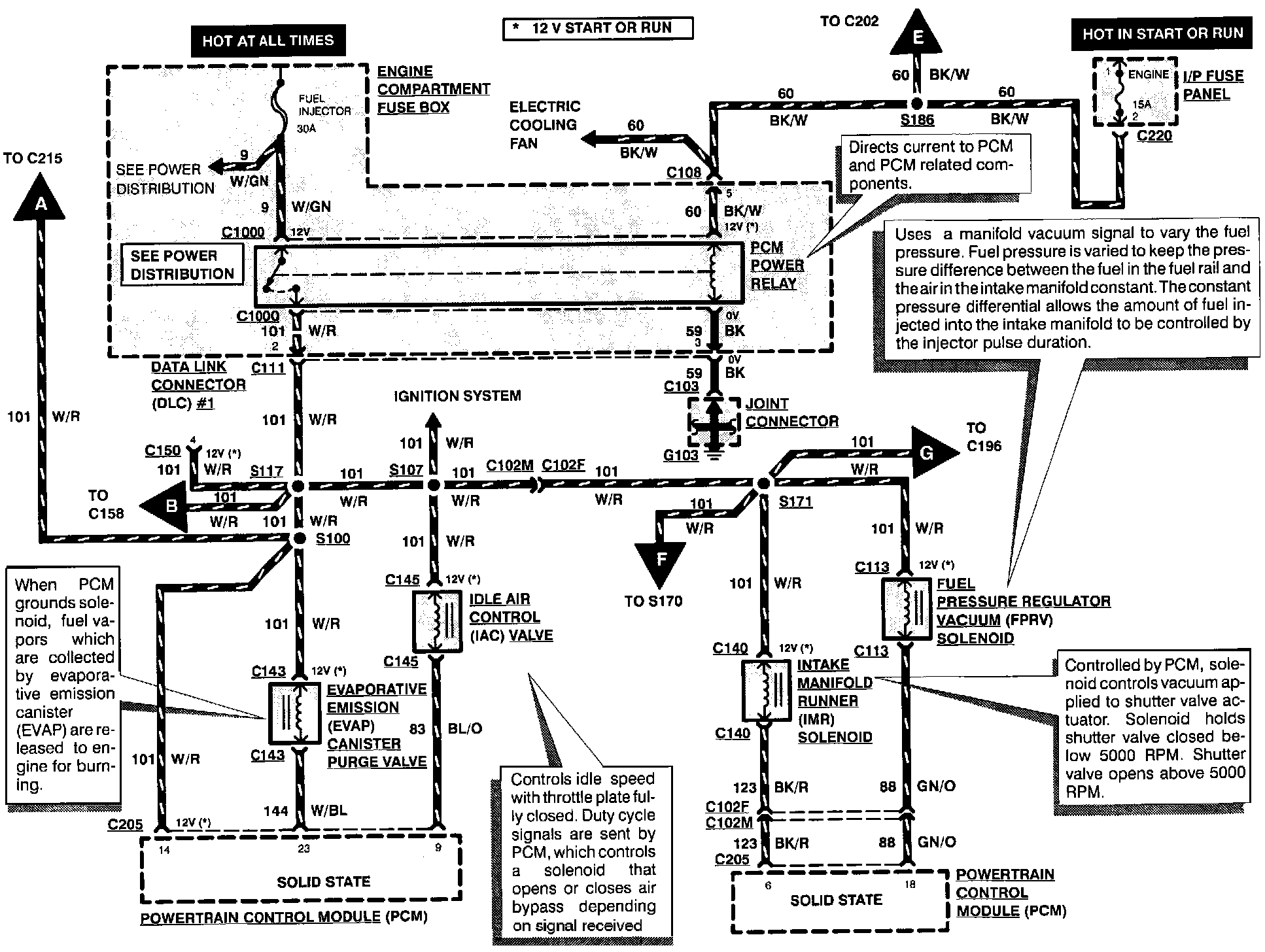

Engine Controls (Part 3 Of 7):

EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL PRESSURE REGULATOR VACUUM SOLENOID
IDLE AIR CONTROL VALVE
INTAKE MANIFOLD RUNNER SOLENOID
PCM POWER RELAY

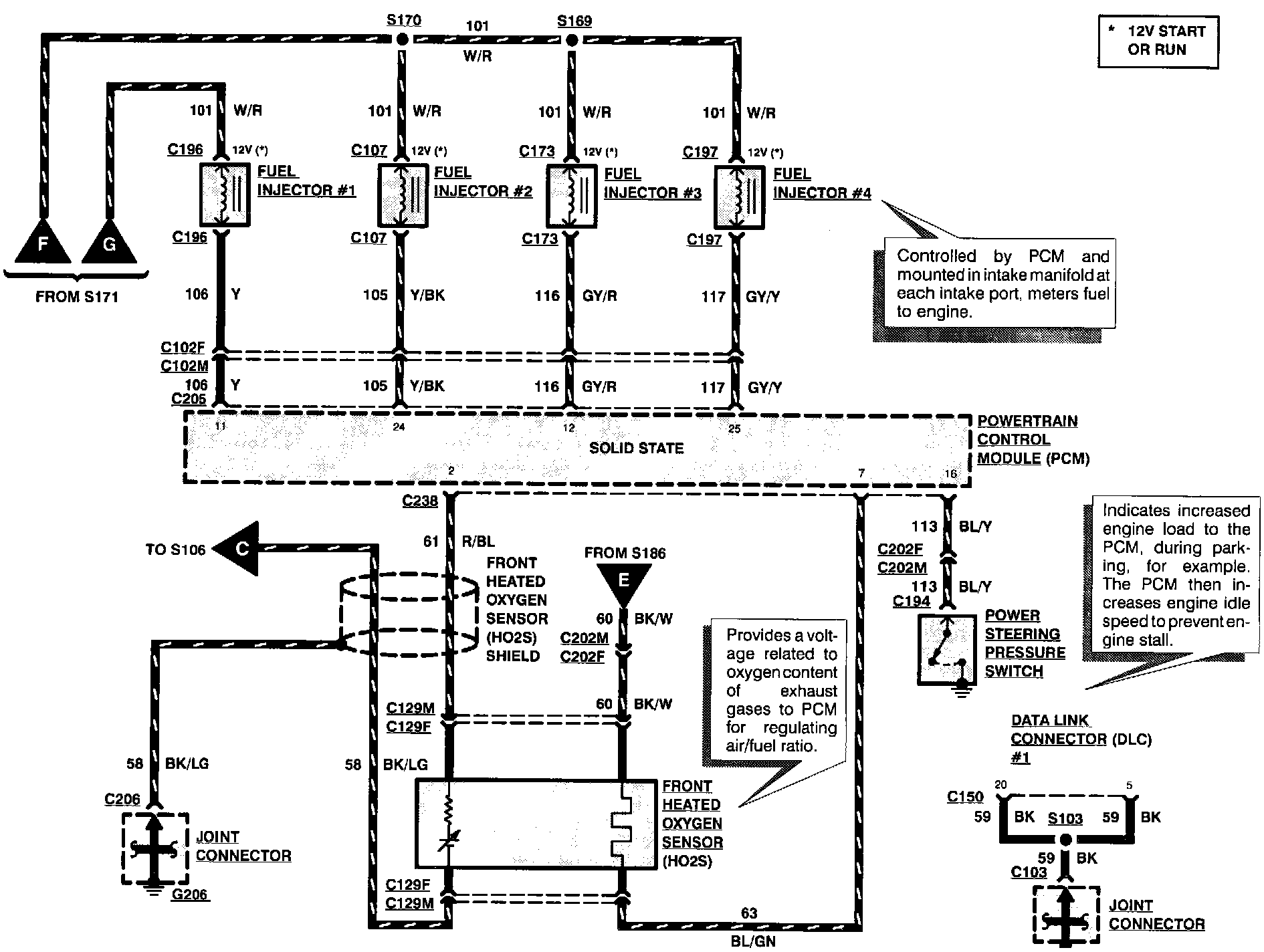

Engine Controls (Part 4 Of 7):

FRONT HEATED OXYGEN SENSOR
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
POWER STEERING PRESSURE SWITCH

Engine Controls (Part 5 Of 7):

BRAKE ON/OFF SWITCH
NEUTRAL SWITCH

Engine Controls (Part 6 Of 7):

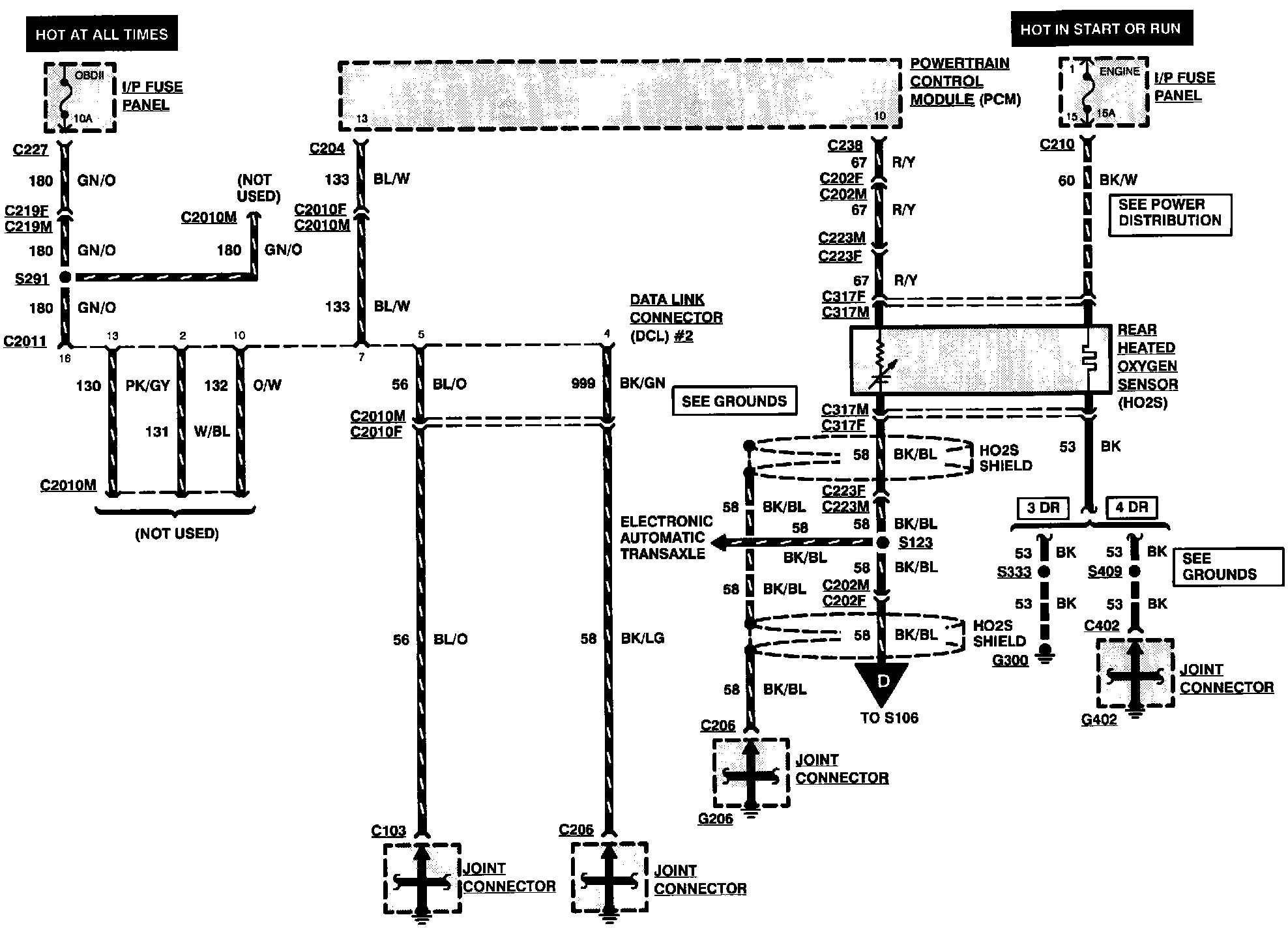

Engine Controls (Part 7 Of 7):

REAR HEATED OXYGEN SENSOR
