Fuse ENGINE

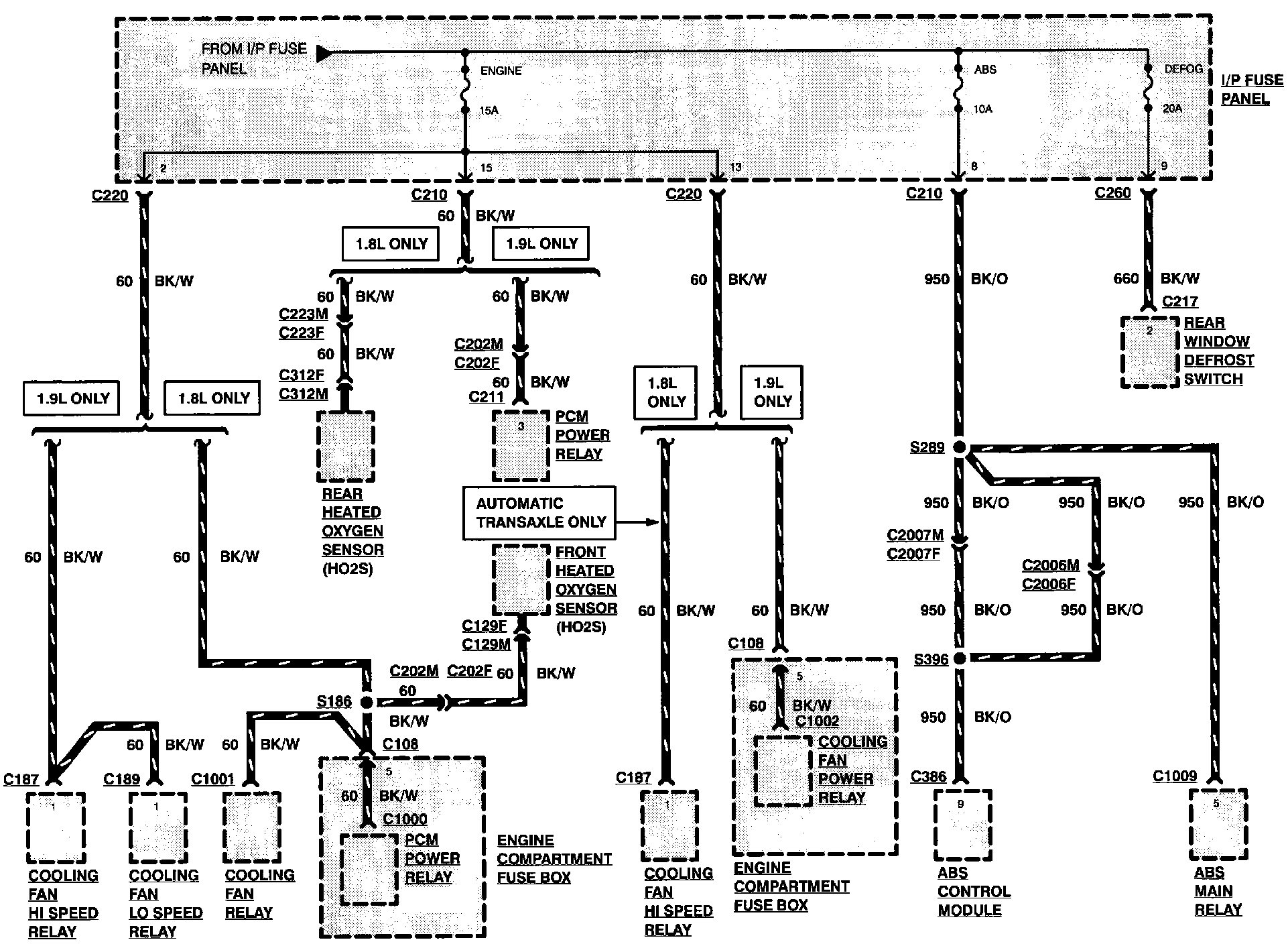

Fuse ENGINE - protects the following circuit
^ Cooling Fans
^ Engine Controls

Power Distribution:




Power Distribution:




Power Distribution:
