Fuse OBD II

Fuse OBD II - protects the following circuits:
^ Air Bag Diagnostic Monitor

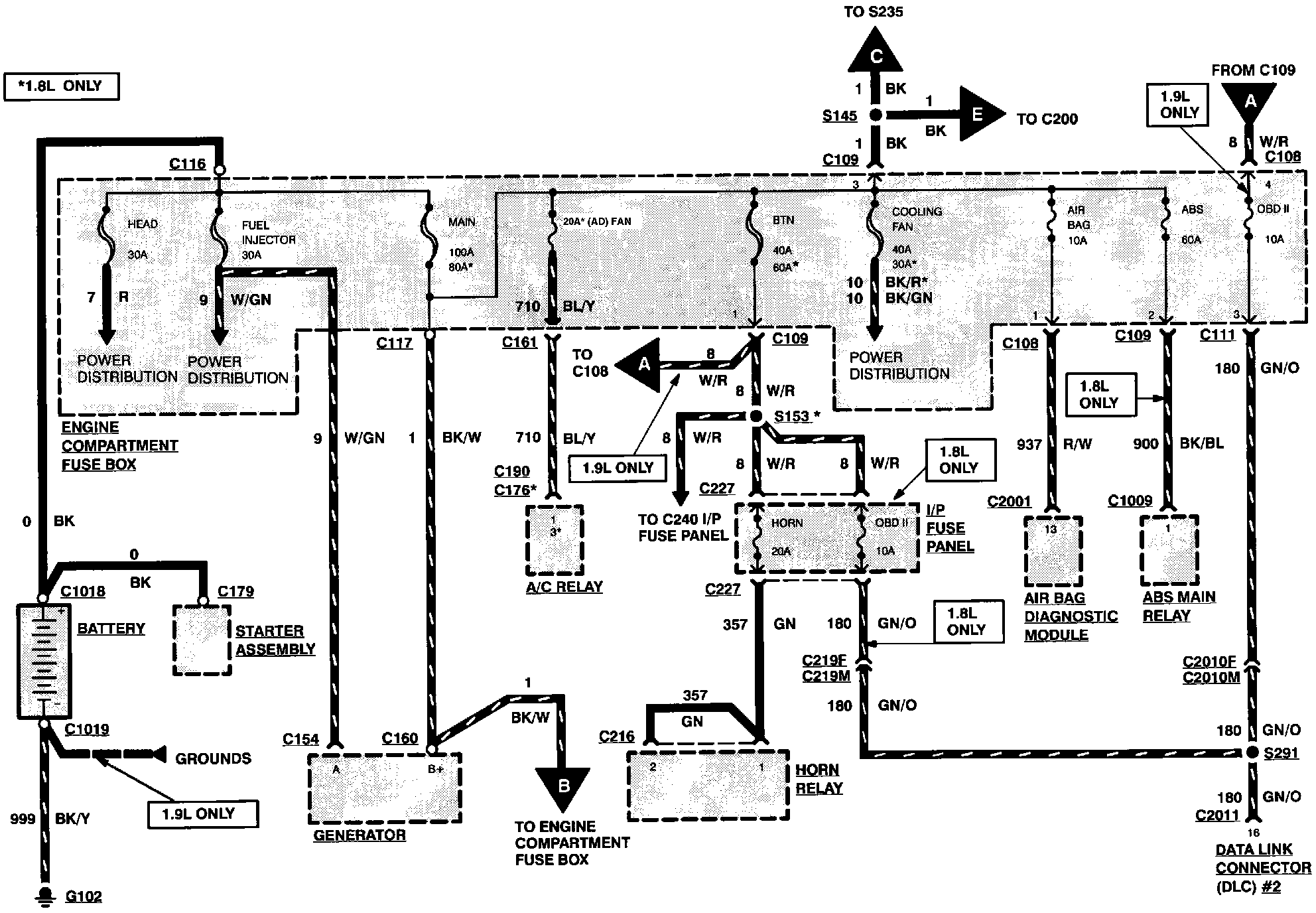

Power Distribution:
