Mercury
>>
1996
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>

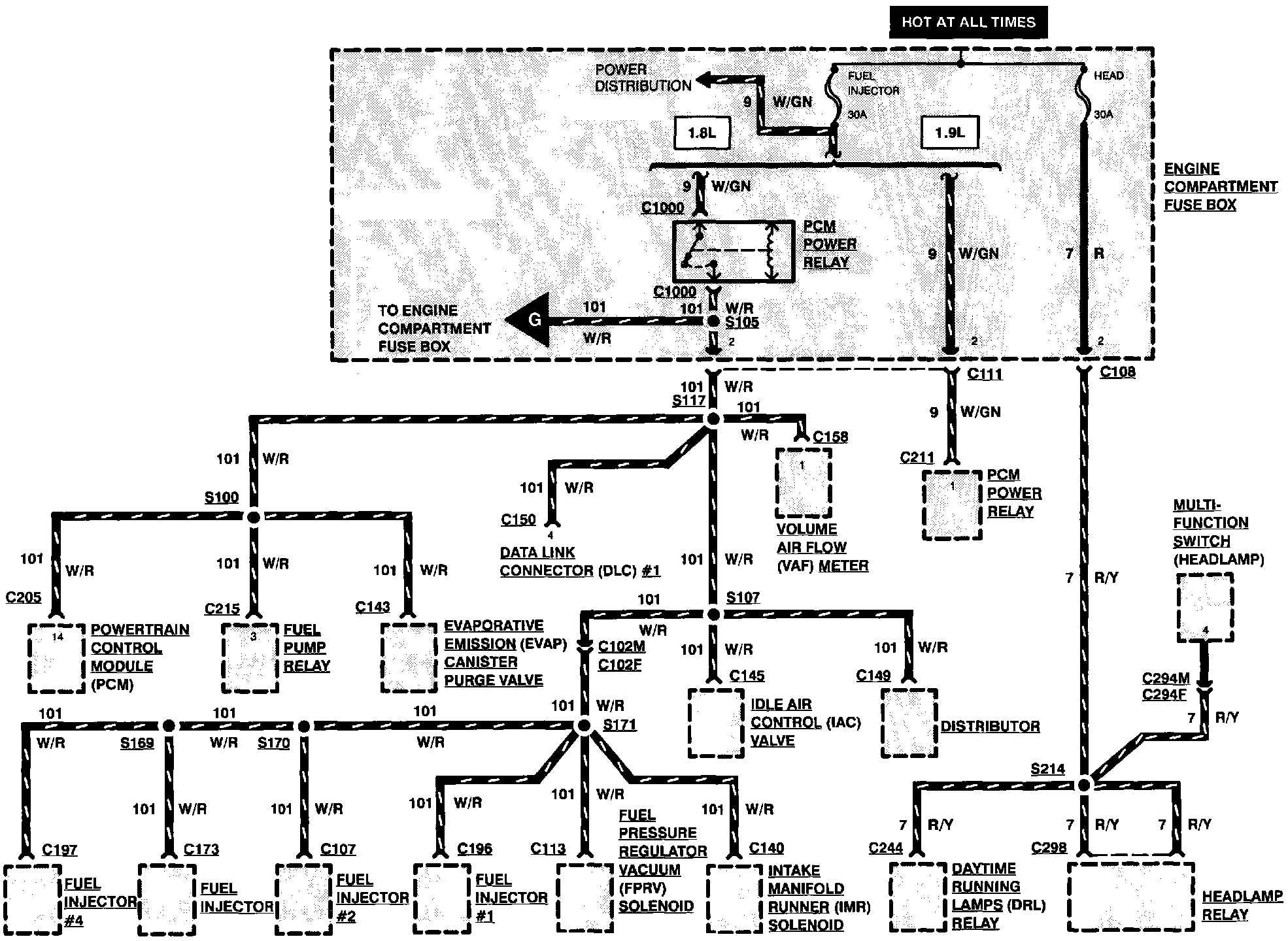

Power Distribution
>>

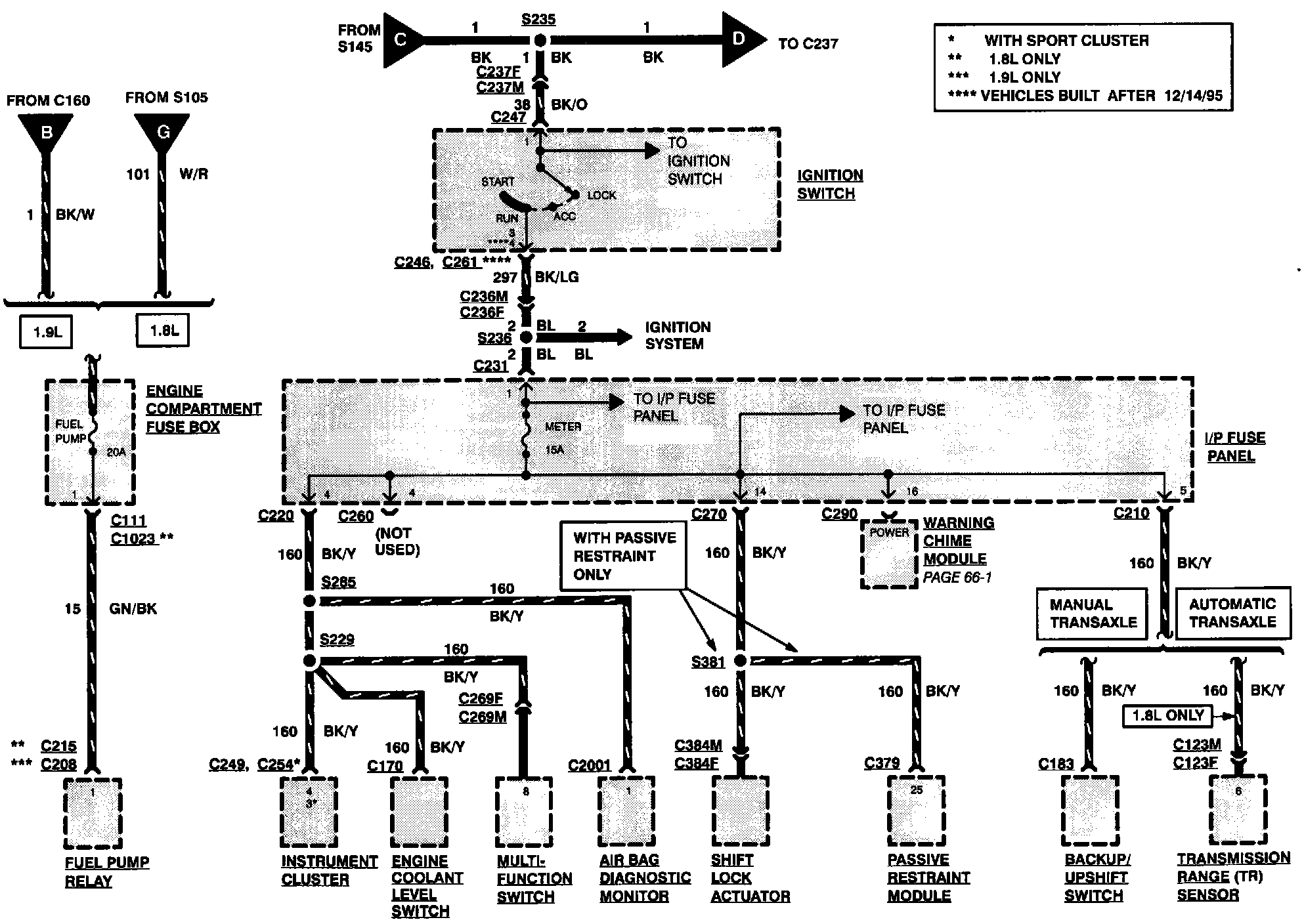

Engine Compartment Fuse Box
>>
Fuse FUEL PUMP
Fuse FUEL PUMP
Fuse FUEL PUMP
- protects the following circuits:
^
Powertrain Control Module
^
Fuel Pump Relay
Power Distribution:
Power Distribution:
Power Distribution:
