Fuse BTN

Fuse BTN - protects the following circuits:
^ Hazard
^ Belt
^ Door Lock
^ Fuse Stop
^ Fuse Room
^ Fuse Tail
^ Fuse Horn

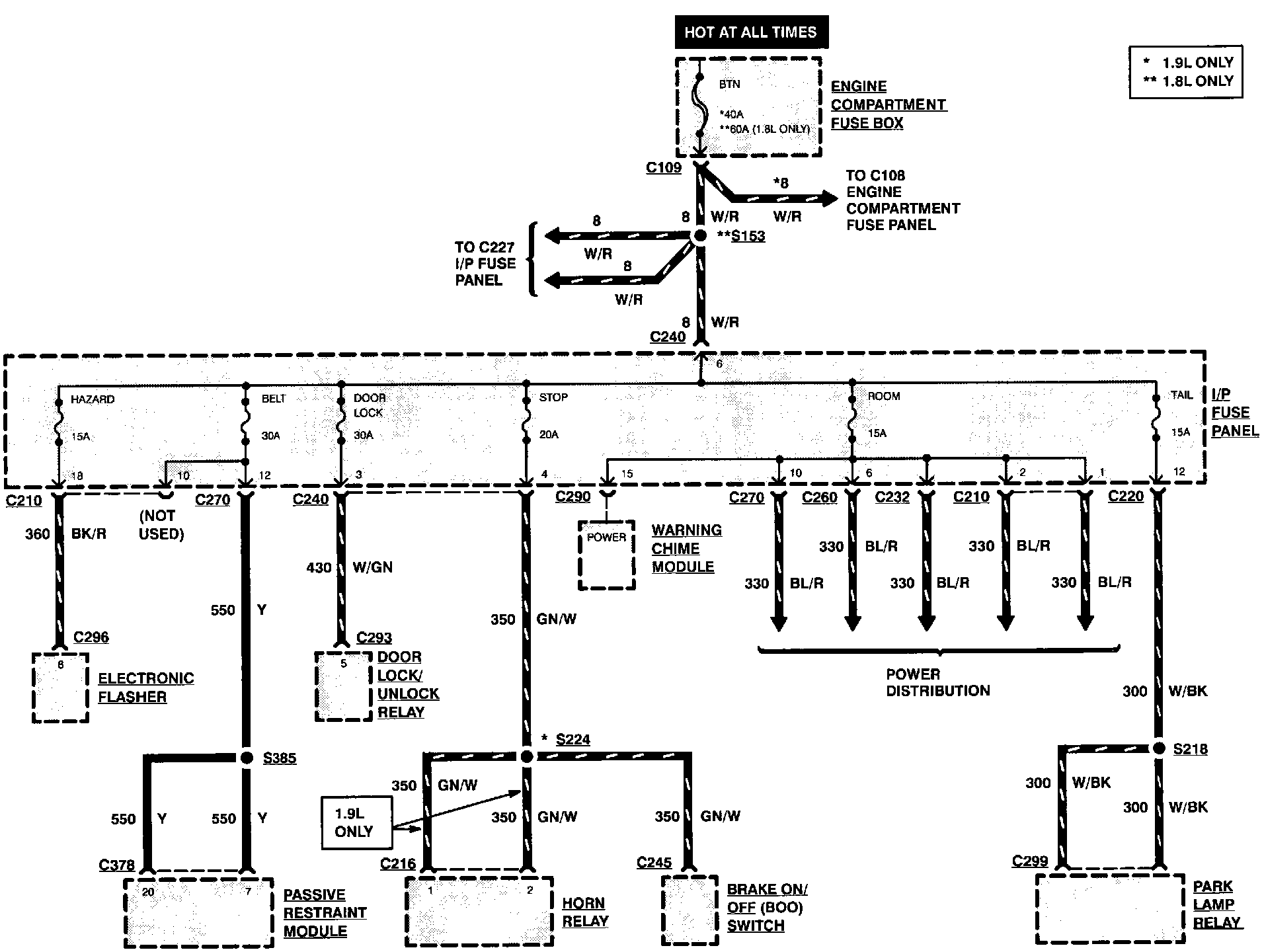

Power Distribution:




Power Distribution:
